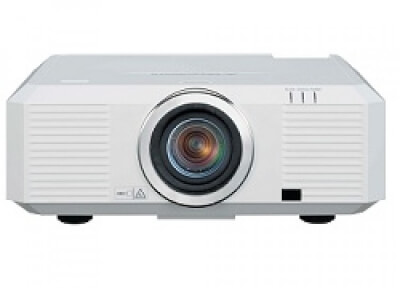

WL7050U
Multifunkční projektor ideální do velkých zasedacích místností Mitsubishi WL7050U nabízí vysokou úroveň jasu a kontrastu, pohodlnou instalaci a ekologicky šetrný provoz. Zajišťuje jasné a ostré velkoplošné prezentace do velkých zasedacích místností. WL705
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Specifikace
| Display technology | 0.75" 3-LCD |
| Resolution | 1280 × 800 (Total 1,024,000 pixels) |
| Brightness*1 (Iris off) | 4700 lm |
| Contrast ratio*1 | 2000 : 1 (Iris on) |
| Projection lens | f = 24.0-43.2mm, F = 1.8-2.6 |
| Zoom / focus | Powered focus / zoom (zoom ratio 1.8 : 1) |
| Picture size | 40"-300" (100" = 3.1m) |
| Source lamp | Standard mode: 321W (Shut off time 3000 hrs) |
| Low mode: 264W (Shut off time 4000 hrs) | |
| Computer compatibility | Resolution: 640 × 400 - 1920 × 1200 |
| True: 1280 × 800, Sync-on-Green available | |
| Video compatibility | NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60 |
| Component video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 50/60Hz), 1080p (1125p 50/60Hz) |
|
| SCART (RGB + 1V sync, only mini D-sub 15-pin Terminal) |
|
| Input terminals | PC: 5 BNC × 1, mini D-sub 15-pin × 1, DVI-D (with HDCP) × 1, PC Audio: Stereo mini jack (f3.5mm) × 3 |
| Video: BNC × 1, S-Video (4-pin) × 1, HDMI (Ver 1.3, with Deep Color) × 1 (Only PCM audio is supported.), Audio: RCA (L/R) × 2 |
|
| Output terminals | RGB: mini D-sub 15-pin × 1 / Audio: Stereo mini jack (f3.5mm) × 1 (Variable out) |
| Communication terminals | LAN (RJ-45): × 1 (projector control), |
| SERIAL (in): D-sub 9-pin (male) × 1 (direct command is available.), |
|
| Wired remote (in): × 1 (f3.5mm stereo mini jack), | |
| Wired remote (out): × 1 (f3.5mm stereo mini jack), | |
| Speaker Output | 10W Mono |
| Dimensions(W×H×D) | 481 × 179 × 418mm / 18.9 × 7.0 × 16.5 inch |
| (excluding detachable terminal cover and protrusion) | |
| Weight | 10.5kg / 23.2lbs (excluding detachable terminal cover) |
| Power supply | AC 100 – 240V, 50/60Hz |
