VMC 3021
10.4" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65
Základní informace
- 10.4" XGA TFT LCD monitor with 5-wire resistive touch
- Built-in Intel Atom® x7-E3950 processor, 1.6GHz
- Aluminum die-casting and fanless design
- Analog camera x 3 (CVBS)
- Complete IP65 housing
- Automatic/manual brightness control
- Isolated CANBus 2.0 x 2
- 10/100/1000Mhz for independent ethernet x 2
- On screen F1 ~ F10 programmable function keys
- Military standard for vibration and shock
- UPS Battery & PoE 802.3af/at (optional)
- iButton and RFID for ID identification
- Micro SIM x 2
- Wide range DC input from 9V ~ 60V DC in
- Sunlight readable capability: 1,200nits LCD brightness
- One expansion port reserved
- Operating system: Windows and Linux
- CE/FCC/EMark
Specifikace
| LCD Panel | 10.4-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA) Brightness: 1200 cd/m² (typical) Viewing angle: 140° (H):120°(V) Contrast ratio: 500:1 (typical) |
| Touch Screen Sensor | 5-wire resistant touch Anti-glare coating surface Transmission rate: 81 ± 3% |
| CPU & Chipset | Intel Atom® x7-3950 processor dual core 1.6GHz One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB) |
| Expandable Storage | 1 x CFast 1 x 2.5" SATA SSD bay |
| Expansion | 3 x Full-size mini-PCIe socket (PCIe + USB) 1 x Full-size mini-PCIe socket (USB) 1 x CFast 2 x Micro SIM slot |
| I/O Interface-Front | LCD back light on/off Volume control (+/-) Brightness control (+/-) Light sensor 4 x LED indicators (power/battery charging, WLAN, shift, storage) F1 ~ F10 programmable function 2 x Built-in 2W speakers |
| I/O Interface-Lateral | Right Side -1 x CFast card slot -1 x System reset button -1 x USB 2.0 host type A connector Left Side -1 x antenna for WWAN |

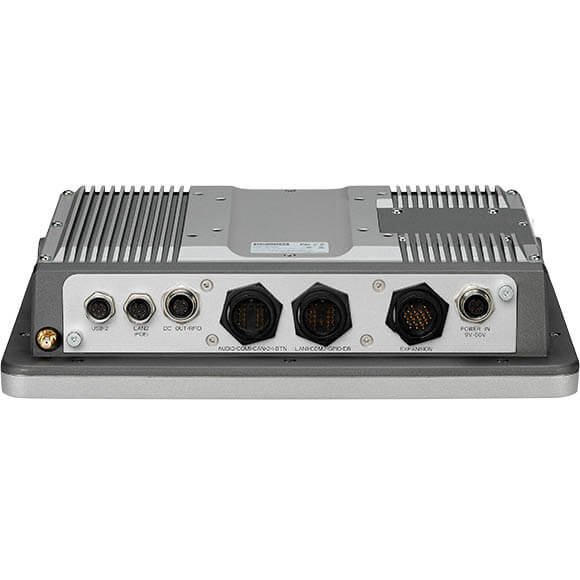

| I/O Interface-Bottom (VMC3021-4A1, IP65) | 1 x M12 (22-pin) -1 x 10/100/1000, LAN1 (wake up on LAN) -1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A) -1 x DR (odometer + speed ) -2 x GPI Source: 9V ~ 60V-in (default) Sink: external 0V ~ 60VDC pull-high selected by software settings Input High "1" Voltage: 3.3 ~ 60 VDC Input Low "0" Voltage: 0 ~ 2 VDC -2 x GPO Source: 9V ~ 60V-in (default) 12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA Sink: external max. 0.5A pull high 1 x M12 (21-pin) -1 x Mic-in -1 x Line-out -1 x full RS232/422/485 (RI, 5V/0.5A, 12V/05A) -2 x Isolated CANBus 2.0B When installing CAN06, CAN2 becomes J1939/ISO15675-4 When installing CAN05, CAN2 becomes J1708 1 x iButton 1 x M12 (5-pin) -9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V) 1 x M12 (8-pin) -Either of DC output or RFID 1 x DC output (12V/2A ) 1 x RFID (Tx/Rx, 12V/2A) |
| I/O Interface-Top | 2 x Antenna for Wi-Fi |

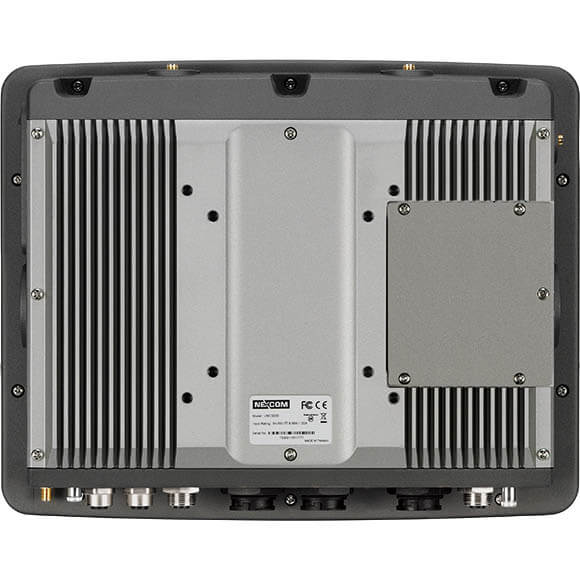

| Mechanical | Cooling system: FanlessEnclosure: Aluminum die castig Mounting: VESA 75 Ingress protection: Complete IP65 Dimension: 289.98mm(W) x 229.97mm(H) x 68.70mm(D) Weight: 3.5kg, 7.7lb |
| Power Management | 9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V)Reverse protection/over voltage protection/under voltage protectionIgnition On/O control & programmable On/O delay timingWake up by LAN1, SMS, RTC and ignition |
| Environment | Operating temperatures: Ambient with air -30°C to 60°C Storage temperatures: -30°C to 70°C Relative humidity: 10% to 90% (non-condensing) Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g |
| Operating System | Windows 10 Linux: YOCTO (by request) |
| Standards/Certifications | CE/FCC class B/E13 |
