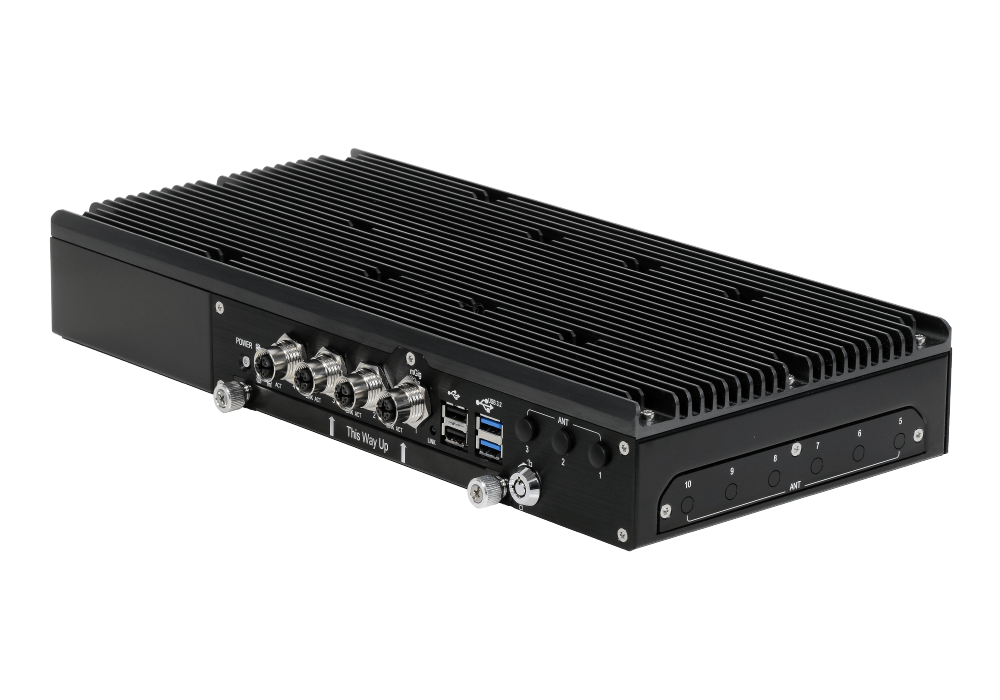

VBOX-3630R-M12X
Intel® 11th Gen Core™ i7-1185G7E CPU with 4 x GbE LAN On-Board Computer
Základní informace
- Intel® 11th Gen Core™ i7-1185G7E
- Support 5G/LTE (Dual by option), GPS, Wi-Fi / BT and CAN bus
- Isolated DC Input 24 ~ 110VDC for Rolling Stock
- 1x 2.5GbE + 3x GbE LAN Port (Optional M12 Connectors)
- Support 4 Independent Display by 2x HDMI, 1x DP, 1x DVI-D
- Battery Backup Function (Optional)
- E13 and EN50155 Certified
VBOX-3630R-M12X is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz. It features an ultra-compact design measuring 250 x 165 x 55 mm, which can easily fit into restricted spaces. The system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth as robust connectivity by M.2 modules. It is a building-in four independent display output, audio line-out, and microphone-in. It is the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in various vehicles.VBOX-3630R-M12X can effectively support cars in extreme weather and operating conditions, such as snowplows, trucks, buses, taxis, and forklifts.
Specifikace
| CPU | 11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz 11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz 11th Gen Intel® Core™ i3-115G4E 2.2GHz up to 3.9GHz Intel® Celeron® 6305E up to 1.8GHz |
| Memory | 2x DDR4-3200 SO-DIMM Up to 64GB |
| LAN Chipset | 1 x Intel® 1255-LM 2.5GbE Supports mGig Supports iAMT and PXE LAN Boot ROM 3 x Intel® 1210-AT Gigabit Ethernet |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| TPM | 2.0 |
| Power Input | 9~60 VDC Input (24 ~ 60 VDC Input for PoE Connections) |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Mgmt. | Power Ignition for Vehicle |
| Power Off Control | Power off Delay Time Setting by Software |
| Battery (UPS) * | Internal Battery Kit for 10 Mins Operating (Optional. Discharge Temp. -20~60°C) Patent No. : M447854 - Build-in Battery *UPS backup time varies depending on actual overall system power consumption. |
| Graphics | Intel® Iris® Xe Graphics / Intel® UHD Graphics |
| Resolution | Max Resolution (HDMI2.0b): 4096 x 2304@60Hz Max Resolution (DP): 4096 x 2304@60Hz |
| Type | 2 x 2.5" Drive Bay for SATA Type HDD/SSD, support RAID 0, 1, 5 1 x M.2 2280 Key M for NVMe SSD* *Additional thermal heatsink is required. Please contact our sales representatives for a suitable type. |
| Serial Port | 4 X RS-232/422/485 (Auto Direction Control) (3 Ports for M12 Model) |
| USB Port | 2 x USB 3.2 Gen 2 (Type A) 2 x USB 2.0 (Type A) |
| LAN Port | 4 x RJ45 (1 x 2.5GbE, 3 x GbE) (Option: M12 connector and/or IEEE 802.3af/at PoE w/ Max. 60W power budget) |
| Video Port | 2 x HDMI, 1 x DP, 1 x DVI-D* (Supports 4 Independent Display) *Use only Single Link DVI Cables. |
| DIO Port | 6 x DI (5~60V) and 4 x DO (5V/100mA) (option: 2 x 12V/1A output) |
| Audio | 1 x Line-out and 1 x Mic-in (option: Line-in) |
| SIM Card Socket | 2 x SIM Card Sockets Supported Onboard with Eject |
| Expansion Bus | 1 x Combo Port (1 x M.2 3042/52 Key B or 1 x mPCIe Full Card) 1 x M.2 2230 Key A-E, 1 x mPCIe Full Size (USB function only) |
| Antenna | 7 x Pre-cut Holes for External SMA Antenna |
| Dimensions | 250(L) x 165(W) x 55(H) mm |
| Weight | 2500g (bare-bone) |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. | -40 ~ 70°C, ambient w/ 0.6m/s airflow Patent No. M448011-Thermal Cooling |
| Storage Temp. | -40 ~ 85°C |
| Certifications | CE, FCC Class A, E13, EN50155. EN45545-2 (R25) |
| Part Number | VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E) |
| Description | Intel® 11th Gen Core i7-1185G7E CPU with 4 x GbE LAN On-Board Computer |
| State of Origin | Made in Taiwan |

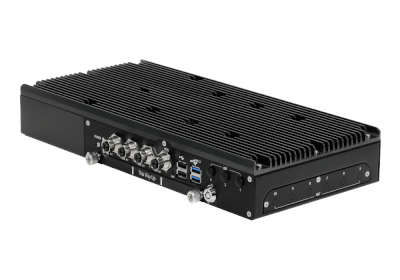

Fotogalerie
