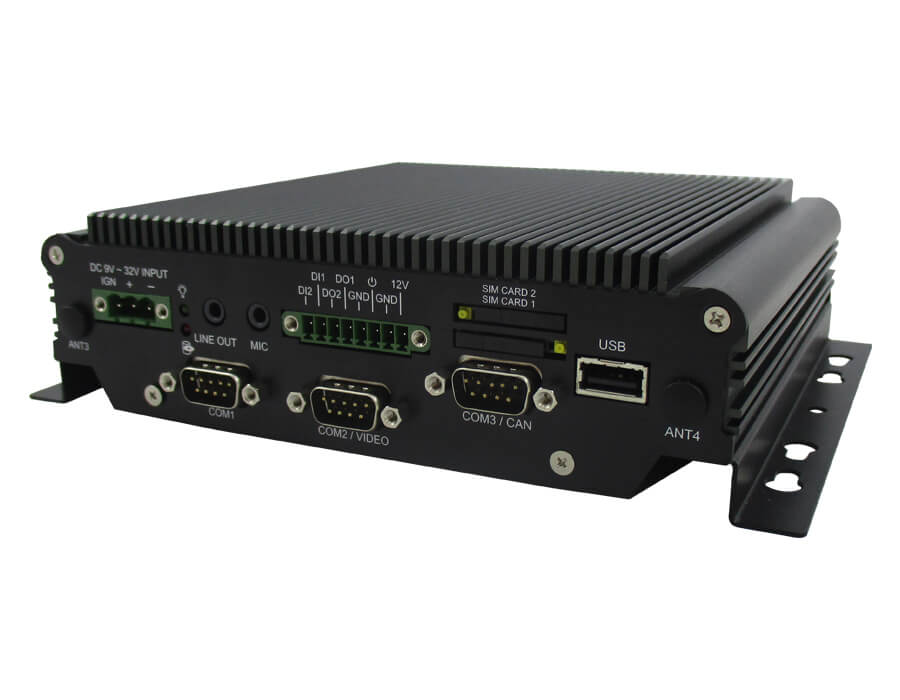

VBOX-3120-3S
Intel Haswell Dual Core 2980U 1.6GHz CPU with 3 x RS-232/ DC 9-36V Input In-Vehicle Computer
Základní informace
- Intel Gen4 Dual Core 2980U 1.6GHz
- Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- 9V - 36V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- 3 x RS-232 (COM1 with RS232/422/485)
- 2 x DI / 2 x DO (12V / 100mA)
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Gen 4 Dual Core 2980U 1.6GHz |
| Memory | 1 x DDR3L-1600 SO-DIMM up to 8GB |
| Graphics | Intel HD Graphics |
| ATA | 2 x Serial ATA 2.0 ports with 6GB/s HDD Transfer Rate |
| LAN Chipset | 2 x Intel i210-AT Gigabit Ethernet |
| Watchdog | 1 ~ 255 Level Reset |
| POWER REQUIREMENT | |
| Power Input | 9V -36V DC Power Input |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| I/O | |
| Serial Port | 3 x RS-232 (COM1 & COM2 with RS-232/422/485) |
| USB Port | 2 x USB 3.0 and 1 x USB 2.0 Ports |
| LAN | 2 x RJ45 ports for GbE |
| Video Port | 1 x HDMI and DVI-I |
| GPIO Port | 2 In and 2 Out (12V / 100mA) |
| Audio | Mic-in / Line-out |
| Expansion Bus | 3 x Mini-Card Slots |
| Antenna | 4 x SMA-type External Antenna Connectors for WLAN/ UMTS/ GSM/ GPRS/ GPS/ Bluetooth |
| SIM Card Socket | 2 x SIM Card sockets supported onboard with eject |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions (LxWxH) | 182 x 167.6 x 54 mm |
| Mounting | Wall-mount, VESA-mount, Din Rail Mounting Kit |
| Weight | 1406g |
| Relative Humidity | 10 ~ 90% (non-condensing) |
| Operating Temp. | -40 ~ 70°C (SSD), ambient w/ air |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, E-13 |
| Patent No. (Taiwan) | M447854 |
