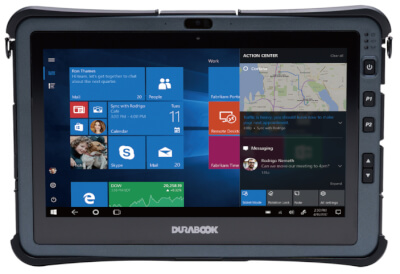

U11I

Odolný tablet se 10. generací procesorů Intel® Core™ a obrazovkou o velikosti 11.6"

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Choosing between mutually exclusive I/O interfaces and devices is a thing of the past. The U11I rugged tablet has it all. It packs an unprecedented number of productivity features within its extremely compact and rugged exterior, including a detachable keyboard and generous space for further expansion. In addition, the U11I is the only fanless tablet in its class.

SUPERB PERFORMANCE BUILT IN

Running on Intel® 10th Generation CPUs and featuring a unique fanless design, the U11I provides the perfect blend of functionality, performance and reliability. Plus, the high-speed data transmission capability of Intel® Dual Band Wireless AC 9260 and Bluetooth® V5.0 means smooth, congestion-free data processing at all times. For field operatives everywhere, the next generation of rugged mobile solutions has arrived.

QUICK-RELEASE SSD

The U11I features an SSD that’s quick and easy to remove – without having to open any covers – saving you time and effort. The unit is equipped with the latest NVMe PCIe SSD solution, providing up to 1TB of storage, while its PCIe offers speeds 6x faster than SATA III.

DETAIL AT A GLANCE

The U11I sports an 11.6″ FHD (1920 x 1080) LCD featuring Durabook’s proprietary DynaVue® sunlight readable technology for exceptional viewing of detail even in direct sunlight. DynaVue® also features 1,000-nit brightness for enhanced viewing clarity. The 10-point capacitive multi-touch panel has four Touch Modes (Glove, Stylus, Water, Finger), optimizing use of the device for both indoor and outdoor applications.

LONG-LIFE, HOT-SWAP BATTERY

The U11I is compact yet delivers power and functionality without sacrifice. Equipped with its high-capacity battery you can take advantage of non-stop operation up to 24 hours with a single battery, making the U11I the market leader on power supply.
Its hot-swappable battery enables workers in the field to operate without interruption when charging isn’t possible.

ROCK-SOLID AND QUIET

The U11I is especially resilient to accidental drops thanks to the enhanced protection of frame protectors on all sides. This tablet is MIL-STD-810H certified, ANSI 12.12.01 C1D2 certified, and IP65 rated, assuring shock, 6-foot drop and vibration protection, as well as the ability to withstand use in a wide range of temperatures. What’s more, the unique, fanless design with 0 dBA means the U11I operates dependably and quietly.

ENDLESS EXPANSION OPTIONS

U11I can easily be expanded to add functionality or another layer of security via RFID reader, ExpressCard54, or PCMCIA Type II. The U11I comes optional with an embedded smart card reader and is the only rugged tablet available today with the option of adding a second smart card reader via built in expansion module, which is useful for remote workers or those collecting and transferring sensitive data and information.

ONE DEVICE, TWO FORM FACTORS

When flexibility is a key aspect in your work environment, the U11I innovative detachable membrane backlit keyboard is the accessory that can keep pace with your changing working conditions. Whether you need a laptop with full keyboard and complete connectivity, or a tablet for increased mobility, the U11I 2-in-1 solution provides the versatility and functionality you need.



Specifikace

Operating System Windows® 10 Pro 64-bit
CPU Intel® Core™ i7-10510Y vPro™ 1.2GHz with Turbo Boost Technology up to 4.5GHz, 8MB cache
Intel® Core™ i5-10310Y vPro™ 1.1GHz with Turbo Boost Technology up to 4.1GHz, 6MB cache
Intel® Core™ i5-10210Y 1.0GHz with Turbo Boost Technology up to 4.0GHz, 6MB cache
Display 11.6” FHD (1920 × 1080)
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen and digitizer
User selectable touch mode for Finger/Water, Glove,or Stylus programmable function
Graphics Intel® UHD Graphics
Memory 8GB up to 16GB (1866MHz DDR3)
Storage 128GB NVME PCIE SSD
Optional 256GB/512GB/1TB PCIE SSD
Optional OPAL 2.0 SSD
Audio Intel® High Definition Audio
Integrated microphone
Integrated speaker x 2
Camera Front: Integrated 2MP Webcam
Rear: Optional 8MP auto-focus with flash
Wireless & Communications Integrated 10/100/1000 Ethernet
Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac)
Bluetooth® V5.0
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN

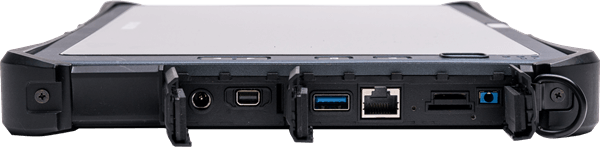

I/O Ports

USB 3.2 Gen1 (type A) x 1
2nd USB 3.2 Gen1 (type A) x 14
Audio in/out (combo jack) x 1
microSD card (microSDHC, microSDXC) x 1
10/100/1000 Ethernet (RJ-45) x 1
HDMI port (type A) x 1
Docking connector (20-pin Pogo) x 1
SIM card x 1
Optional smart card reader x 1 or x 2
DC-In jack x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN

Expansion Slots Optional serial port (RS232, 422 and 485 : D-sub,9-pin) x 1 or 2nd USB 3.2 Gen1 (type A) or 1D/2D barcode reader
Optional PCMCIA Type II or ExpressCard 54 or HF/LF RFID or 2nd smart card reader
Security

Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Stealth mode
Kensington lock
Optional smart card reader x 1 or x 2
Optional Night vision mode1
Optional fingerprint scanner
Optional HF/LF RFID reader

Rugged features

MIL-STD-810H
MIL STD-461G
ANSI 12.12.01 C1D2
IP65

Power AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 7.6V, 4800mAh, 13.5 hours
Optional long life battery Li-Ion, 7.6V, 9600mAh, 24 hours
Optional bridge battery : 5 minutes swap time
Dimension 317 mm (L) x 215 mm (W) x 24 mm (H)
Weight 1.39 kg
Temperature

Operating : - 20°C ~ 60°C
Storage : - 46°C ~ 71°C
Humidity : 5% ~ 95%
