SW-4PRS

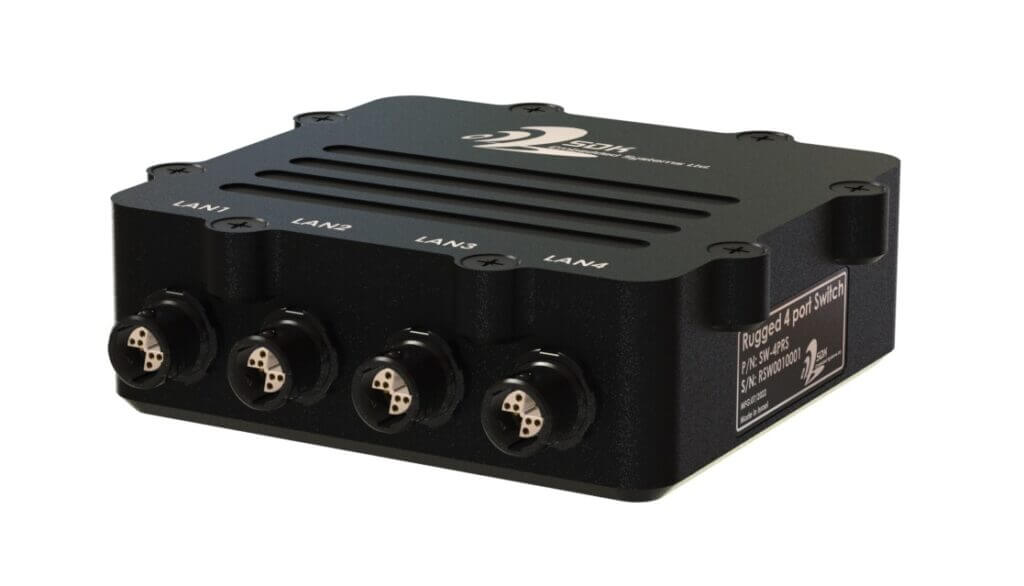

The SW-4PRS Ultra Compact 4 port Rugged Ethernet Switch ideal for demanding military applications UAV, Airbone, Navy, Ground Communications, Special Troops, Armour and Tracked Vehicles.Ultra-compact, soldier-carry, military grade, 4-port Layer 2/3 managed Gigabit Ethernet switch support triple-speed (10/100/1000Mbps) ports.Equipped by Push-pull locking Fischer Minimax Series miniature connectors that support 5,000 mating cycles.

• Packet buffer: 256k Byte
• Port Type: 4 x 10/100/1000BASE-T
• Management Access: RS-232 Serial Interface (CLI)
• Indicator LEDs: Power LED, Link/Activity LED
• Wide input rage: +5V to +36V DC with transient protection
• Power Consumption: 1W idle, 3.3W at full data rate

Environmental Tolerance:

• Operating temperature: -45°C to + 85°C
• Storage Temperature: -55°C to +125°C
• Humidity: 5~95%, non-condensing
• Vibration: 2.5G, 5Hz~500Hz / XYZ
• Shock: 40G, 11ms duration, MIL-STD-810G
• EMI: MIL-STD-461G
• IP Level: Full IP68
