SR800-X2
IP65 VMware rugged workstation with Intel® Xeon® D-1587 Processor (16 Cores), 128GB DDR4 ECC RDIMM, MIL-DTL-38999 , MIL-STD 461, MIL-STD 810 Certified
Základní informace
- MIL-STD-810G Thermal, Shock, Vibration, Humidity
- MIL-STD 461 EMI/EMC Certified
- 16 Cores Intel® Xeon® D-1587 VMware Support
- 128GB DDR4 ECC R-DIMM
- Rugged MIL-DTL-38999 Souriau Connector
- Dual Removable Solid-State Disk
- Hardware Secure Erase (AES)
- Windows 10/Server, Linux, VMware Compatible
- 300W, 18V ~36V DC MIL-STD 461 Power Supply
The SR800-X2 equipped Ultra-High Performance Intel® Xeon® D-1587 is fully qualified IP65 with D38999 connectors which can offer the highest performance capabilities and ready to handle multiple applications in harsh environments. SR800-X2 is designed to meet strict size, weight, and power (SWaP) requirements and to withstand harsh environments, including temperature extremes, shock/vibe, sand/dust, and salt/fog.
SR800-X2 is MIL-461/1275 EMI/EMC compliant rugged workstation. It passes numerous environmental tests including Temperature, Altitude, Shock, Vibration, Voltage Spikes, Electrostatic Discharge and more. The sealed compact chassis shields circuit cards from external environmental conditions such as sand, dust, and humidity.
Specifikace
| MODEL | SR800 |
| CPU | Intel® Xeon® Processor D-1587 (Frequency 1.7GHz, Turbo Boost Frequency up to 2.3GHz), 16-Core, 32 Thread Support, 24MB Smart Cache. Build-in Turbo Boost Technology 2.0, VPro and Hyper-Threading |
| MEMORY | support. 4 x DIMMs Up to 128GB ECC RDIMM DDR4 2133MHz |
| CHIPSET | SoC, integrated with CPU |
| GRAPHICS PROCESSOR | ASPEED AST2400 |
| DISPLAY PORT | Resolution up to 1920x1200@60Hz 32bpp |
| SSD/HDD | 2 x 2.5" SSD |
| ETHERNET | 1 x Intel I350-AM2 Gigabit LAN Interfaces ( 10/100/1000Mbps ) |

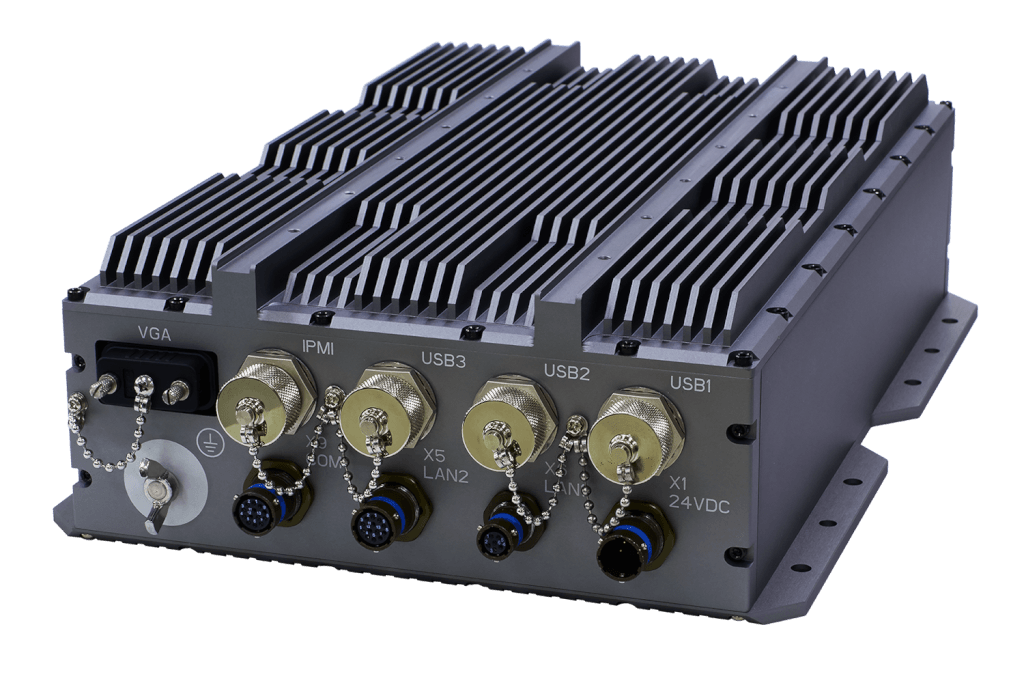

| REAR I/O | 1 x VGA 1 x IPMI 2 x USB 3.0 1 x USB 2.0 1 x DC-IN 1 x Gbit Ethernet 1 x 100Mbit Ehernet 1 x RS232 |
| SIDE I/O | 1 x Secure Erase Button ( SSD2 support AES Secure Erase ) 1 x Power Switch with Dedicated LED 1 x Dual 2.5" HDD/SSD Easy Swap Tray 1 x Removable CR2032 CMOS Battery Tray |
| POWER INPUT | MIL-STD 461 power supply ,300W, 18V ~36V |
| OPERATING SYSTEM | Windows 10 64Bit, Windows Server 2008 R2,Windows Server 2012 R2 Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2 Vmware ESXi 6.0, ESXi 6.5 |
| DIMENSION ( W X D X H ) | 260 x 350x 102mm |
| WEIGHT | 9.6 kg ( 16.5lbs ) |
| CHASSIS | Aluminum Alloy, Corrosion Resistant. |
| FINISH | Anodic aluminum oxide ( Color Iron gray ) |

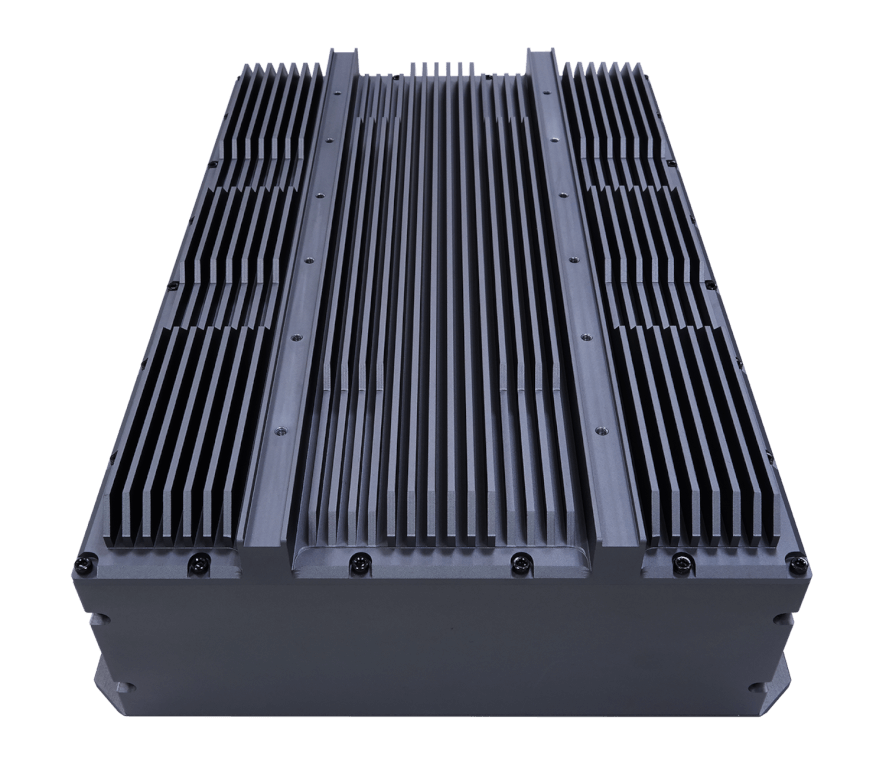

| COOLING | Natural Passive Convection / Conduction. No Moving Parts |
| INGRESS PROTECTION | IP65 |
| MIL-STD-810G TEST | Method 507.5, Procedure II ( Temperature & Humidity ) Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration ) Method 501.5, Procedure I ( Storage/High Temperature ) Method 501.5, Procedure II ( Operation/High Temperature ) Method 502.5, Procedure I ( Storage/Low Temperature ) Method 502.5, Procedure II ( Operation/Low Temperature ) Method 503.5, Procedure I ( Temperature shock ) |
| OPERATING TEMPERATURE | 0 to 50°C |
| STORAGE TEMPERATURE | -40 to 85°C |
| EMC | MIL-STD-461E : CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 55022, class A EN 61000-4-3: 10V/m CE and FCC |
