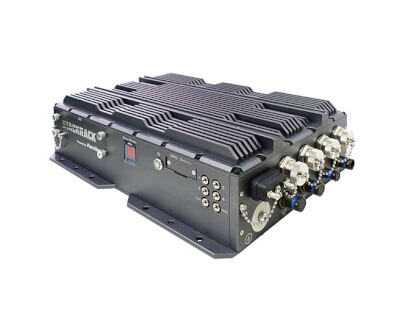

SR800
Fanless Rugged Computer with Intel® Xeon® D-1587 Processor ( 16 cores, 32 threads and a 24 MB Cache ), 128GB DDR4 ECC RDIM, MIL-DTL-38999 connectors
Základní informace
- Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
- Ultra-High Performance Intel® Xeon® D-1587 (2.3GHz, 16 cores, 32 threads)
- Up To 128GB DDR4 ECC RDIMM
- Rugged MIL-DTL-38999 Souriau Connector
- Dual Removable Solid-State Disk
- Hardware Secure Erase
- Windows 10/Server, Linux, VMware Compatible
- 12-40V DC MIL-1275/704 Power Supply
- MIL-461E EMI/EMC Compliance
The SR800 equipped Ultra-High Performance Intel® Xeon® D-1587 is fully qualified IP65 with D38999 connectors which can offer the highest performance capabilities and ready to handle multiple applications in harsh environments. It meets the needs of a wide range of deployable systems and serves as the ideal mission computer.
SR800 was designed to meet MIL-461E/1275/705 EMI/EMC Environmental Conditions for Airborne Equipment. It passes numerous environmental tests including Temperature, Altitude, Shock, Vibration, Voltage Spikes, Electrostatic Discharge and more. The sealed compact chassis shields circuit cards from external environmental conditions such as sand, dust, and humidity.
Specifikace
| Model | SR800 |
| CPU | Intel® Xeon® Processor D-1587 (Frequency 1.7GHz, Turbo Boost Frequency up to 2.3GHz), 16-Core, 32 Thread Support, 24MB Smart Cache. Build-in Turbo Boost Technology 2.0, VPro and Hyper-Threading |
| Memory | support. 4 x DIMMs Up to 128GB ECC RDIMM DDR4 2133MHz |
| Chipset | SoC, integrated with CPU |
| Graphics Processor | ASPEED AST2400 |
| Display Port | Resolution up to 1920x1200@60Hz 32bpp |
| SSD/HDD | 2 x 2.5" SSD |
| Ethernet | 1 x Intel I350-AM2 Gigabit LAN Interfaces ( 10/100/1000Mbps ) |
| Rear I/O | 1 x VGA 1 x IPMI 2 x USB 3.0 1 x USB 2.0 1 x DC-IN 1 x Gbit Ethernet 1 x 100Mbit Ehernet 1 x RS232 |
| Side I/O | 1 x Secure Erase Button ( SSD2 support AES Secure Erase ) 1 x Power Switch with Dedicated LED 1 x Dual 2.5" HDD/SSD Easy Swap Tray 1 x Removable CR2032 CMOS Battery Tray |
| Power Input | MIL-STD-1275, MIL-STD 704 and DO-160 power supply ,12 to 40V ( 150W max ) |
| Operating System | Windows 10 64Bit, Windows Server 2008 R2,Windows Server 2012 R2 Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2 Vmware ESXi 6.0, ESXi 6.5 |
| Dimension ( W x D x H ) | 260 x 350x 102mm |
| Weight | 7.5Kg ( 16.5lbs ) |
| Chassis | Aluminum Alloy, Corrosion Resistant. |
| Finish | Anodic aluminum oxide ( Color Iron gray ) |
| Cooling | Natural Passive Convection / Conduction. No Moving Parts |
| Ingress Protection | IP50 |
| MIL-STD-810G Test | Method 507.5, Procedure II ( Temperature & Humidity ) Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration ) Method 501.5, Procedure I ( Storage/High Temperature ) Method 501.5, Procedure II ( Operation/High Temperature ) Method 502.5, Procedure I ( Storage/Low Temperature ) Method 502.5, Procedure II ( Operation/Low Temperature ) Method 503.5, Procedure I ( Temperature shock ) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 85°C |
| EMC | MIL-STD-461E : CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 55022, class A EN 61000-4-3: 10V/m CE and FCC |
