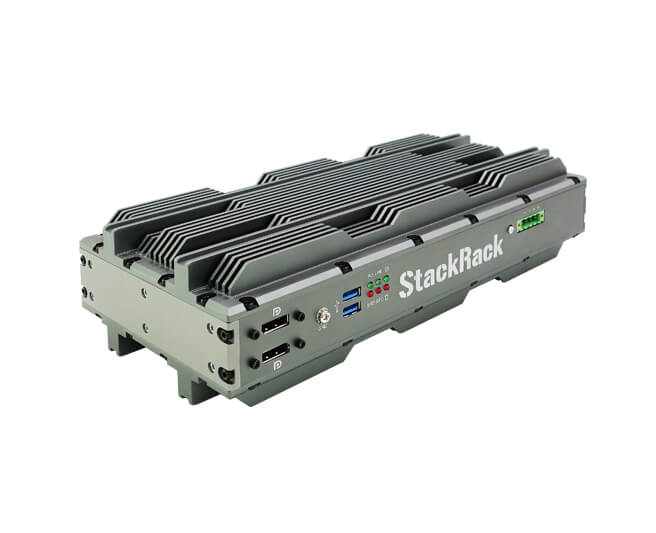

SR200-X3

• MIL-STD 810G Compliance
• 7th Generation Intel® Core™ i7-7820EQ Kaby Lake Processor
• Up to 32GB DDR4 RAM
• Onboard uSSD SATAIII up to 64 GB
• NVIDIA®1050Ti CUDA 768 GDDR5-4GB/Quadro® P3000 CUDA1280 GDDR5-6GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB GPU Independent Displays by 2 x DP
• 2 x mPCIe expansion slot (One Co-Layout with mSATA)
• 2 x Intel® Gigabit Ethernet
• 4 x USB 3.0, 1 x COM port
• 9V to 36V DC-Input
• Extended Temperature -40°C to 60°C

SR200-X3, EBX rugged system is a powerful system that is driven by Intel® 7th generation Kabylake CPU and chipset soldering onboard, integrated with Nvidia GPU 1050Ti CUDA 768 GDDR5-4GB/GTX 1650 CUDA896 GDDR5-4GB/GTX 1660S CUDA1408 GDDR6-6GB GPU that supports 2 independent DisplayPort. Processor i7-7820EQ plus Intel® QM175 chipset supports clock speed 2.8GHz, up to 3.5GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. Apart from computing power, the system is able to survive in harsh environment from -40 to 60°C, and ruggedness for vibration and shock is proven to pass MIL-810G standard. With the combination of high CPU computing power and rich display inputs, SR200-X3 is a perfect portable solution for rugged consoles & workstations, transportation, defense control room to share instant and accurate information on huge screen for in-time solutions.
