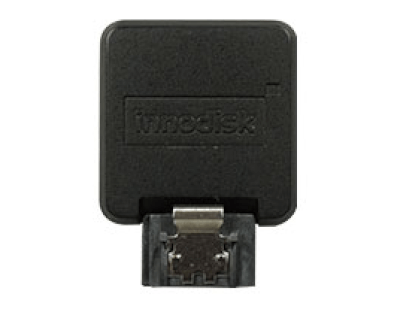

ServerDOM-V 3SE
ServerDOM™ - a boot drive, bootable and compatible with all OS.
Základní informace
- Bootable and compatible with all OS
- Better reliability and MTBF than HDD
- Small dimension for Blade or 1U servers
- Compatible with Intel® RSTe
- Cost effective storage solution
- Optional SATA Pin 7 VCC to enhance reliability and save space
- Customizable for IPMI
- Unexpected power loss protection
Innodisk ServerDOM™ is dedicated to the further of server design. By using ServerDOM™ as a boot drive, there is more space for the hot-swappable data storage devices. Innodisk ServerDOM™ is designed with SATA III interface and complaint with server grade stranded, such as supporting for Intel® RSTe. Furthermore, with our excellent development team, we are able to provide customized services to fulfill different inquires; H/W design or software integration, such as IPMI.
Specifikace
| Model Name | ServerDOM-V 3SE |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Type | Vertical |
| Capacity | 2GB~16GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 450/200 |
| Max. Power Consumption | 1.5 W |
| Pin 8 Power | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 20.2 x 30.7 x 8.7 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
