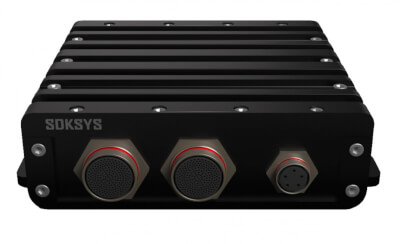

SD-12PRSM
Plně menežovatelný 12-portový 10/100/1000 Mbps ethernetový switch
Základní informace
SD-12PRSM is fully managed standalone 12-Port 10/100/1000 Mbps Managed Ethernet Switch that does not require any host computer interface. Switch functions are managed by a 416 MHz RISC 32-bit CPU, with DDR2 external memory processor embedded directly into the switch.Support IPv4/IPv6 multicast, Jumbo frame, Independent and shared VLAN learning (IVL, SVL), Web GUI or CLI Management.Sealed IP67 (dust and water proof) aluminum chassis with MIL-DTL-38999 connectors.
- 12-Port 10/100/1000 Mbps Switch
- Extended Temperature Range -40°C to +85°C
- Full IP67 water , dust proof, anti-corrosion housing
- MIL-STD-810G compliance
- Humidity: 5~95%, non-condensing
- Vibration: 2.5G, 5Hz~500Hz / XYZ
- Shock: 40G, 11ms duration, MIL-STD-810G
- EMI: MIL-STD-461F compliance
- Wide input rage: +9V to +36V DC
- 160 x 72 x 170 mm ( W x H x D )
Specifikace
| Ethernet Switch Engine | Vitesse VSC7429 Ethernet Switch Chipset 416 MHz RISC 32-bit CPU, with DDR2 external memory and DMA-based frame extraction and insertion supports timing over packet, Ethernet OAM, and performance monitoring. |
| Memories | 1Gb DDR2 SDRAM 128Mb Serial NOR Flash |
| Port Type | Gigabit ethernet (10/100/1000 Mbps) |
| Connectors | MIL-D38999 |
| Layer 2 Switching | 802.1Q VLAN switch with 8K MACs and 4K VLANs Push/pop up to two VLAN tags IPv4/IPv6 multicast Policing with storm control and MC/BC protection RSTP and MSTP support Hardware and software-based learning Link aggregation (IEEE 802.3ad) Independent and shared VLAN learning (IVL, SVL) Jumbo frame support |
| Management Access | Web Interface RS-232 Serial Interface (CLI) Software APIs |
| Indicator LEDs | Power LED Status LED |
| Input Voltage | Wide input rage: +9V to +36V DC with Reverse Polarity Protection |
| Power Consumption | Idle: 0.3A, 3.6W Typical: 0.35A, 4.2W Max: 0.5A, 6W (with +12V input) |
| Dimensions | 160 x 72 x 170 mm ( W x H x D ) |
| IP Level | Full IP67 |
| Operating temperature | -40°C ~ 85°C |
| Humidity | 5~95%, non-condensing |
| Vibration | 2.5G, 5Hz~500Hz / XYZ |
| Shock | 40G, 11ms duration, MIL-STD-810G |
| EMI | MIL-STD-461F for CE101, RE101 |
Software Specifications
| Port control | Port Speed/Duplex Mode/Flow Ctrl Port Frame Size (Jumbo frames) Port State (administrative status) Port Status (link monitoring) Port Statistics (MIB counters) Port VeriPHY (cable diagnostics) |
| QoS | Traffic Classes (8 active priorities) Port Default Priority QoS User Priority Input priority mapping QoS Control List (QCL Mode) Storm Control for UC, MC and BC Port policers Global/VCAP (ACL) policers Port egress shaper Queue egress shapers TRTCM (two rate three color market) Scheduler mode (Strict or Weighted Fair Queuing) |
| L2 Switching | Auto MAC addr. Learning/Ageing MAC Addresses – Static Virtual LAN Private VLAN – Static Port Isolation – Static IEEE-802.1ad Provider Bridge (Native or Translated VLAN) Rapid Spanning tree – RSTP, STP Loop Guard Link Aggregation – Static Link Aggregation – LACP IGMPv2 snooping Port Mirroring (Ingress and Egress Mirroring) |
| L3 Switching | IPv4 Unicast: RIPv1/RIPv2 |
| Security | Port-Based 802.1X Multiple 802.1X Web & CLI Authentication ACLs for filtering/policing/port copy |
| Synchronization | SNTP & client |
| Power Saving | Cold start Cool start ActiPHY PerfectReach EEE Power Management LED Power Management Thermal Protection |
| Management | DHCP Client HTTP Server CLI - Console Port Industrial Standard CLI Industrial Standard Configuration Management access filtering HTTPS System Syslog Software Upload via web SNMP v1 / v2c / v3 Agent SNMP multiple trap destinations IEEE 802.1AB-2005 Link Layer Discovery – LLDP Configuration Download/Upload - XML Configuration Download/Upload - Industrial Standard Loop detection restore to default Symbolic Register Access |
| MIBs | RFC 1213 MIB II RFC 1215 TRAPS MIB RFC 4188 Bridge MIB RFC 3635 Ethernet-like MIB RFC 3411 SNMP Management Frameworks IEEE 802.1 MSTP MIB IEEE 802.1AB LLDP-MIB (LLDP MIB included in a clause of the STD) RFC 3621 LLDP-MED Power (POE) (No specific MIB for POE+ exists) Private MIB framework |
