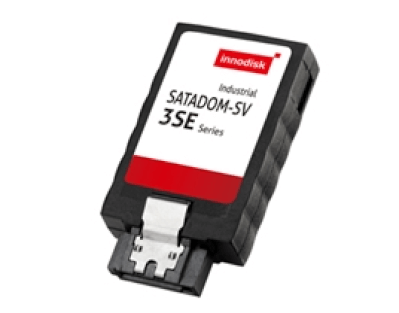

SATADOM-SV 3SE
SATA 6Gb/s interface
Základní informace
- SATA 6Gb/s interface
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Zero mechanical interference
- Anti-vibration mechanical design
Innodisk SATADOM™-SV 3SE is designed as the standard SATA 7 pin connector with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance., InnoDisk SATADOM™-SV 3SE absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.
Innodisk SATADOM™-SV 3SE effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
Specifikace
| Model Name | SATADOM-SV 3SE |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Type | Vertical |
| Capacity | 1GB~32GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 300/130 |
| Max. Power Consumption | 0.6 W (5V x 130 mA ) |
| Thermal Sensor | Wide Temp. only |
| H/W Write Protect | N |
| Pin 7 Power | Y |
| Pin 8 Power | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 20.9 x 39.5 x 7.9 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
