SATA Slim 3MV2-P
SATA III soultion for industrial field
Základní informace
- SATA III soultion for industrial field
- High IOPS solution
- iData Guard protection
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Zero mechanical interference
- Compatible with JEDEC MO-297 standard

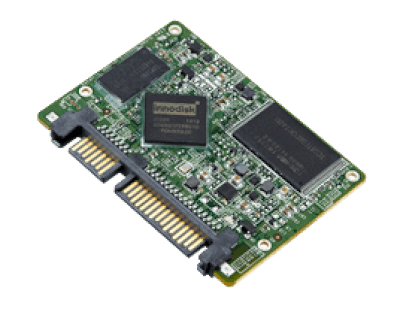

InnoREC is innodisk’s proprietary flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions is fully met. SATA Slim 3MV2-P products provide high capacity flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. It supports SATA III standard (6.0GHz) with high performance and supports several features, including REC line, iData Guard, Quick Erase, Thermal sensor, and S.M.A.R.T.
Specifikace
| Model Name | SATA Slim 3MV2-P |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~512GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 520/460 (steady performance refer to TPS) |
| Max. Power Consumption | 2.6W (5V x 520 mA ) |
| Thermal Sensor | Y |
| External DRAM Buffer | Y |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 54.0 X 39.0 X 4.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
