RE2S

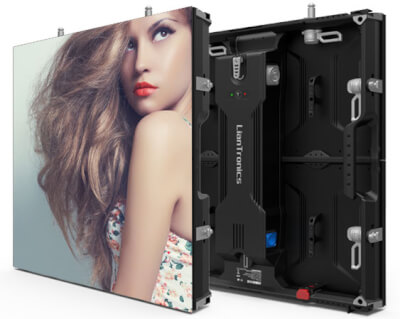

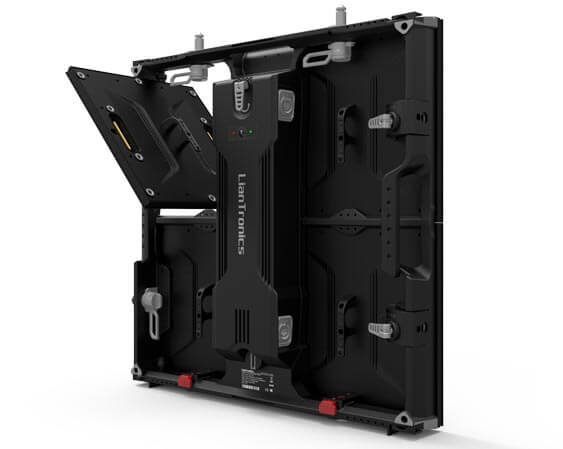

Vnitřní rentalový LED panel s roztečí 2,6 mm.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 2,6 mm
Rozměry panelu: 500 x 500 mm
Svítivost (nits): 1 000
Hmotnost: 8 kg
Specifikace
| Item | Value |
|---|---|
| Pixel Pitch(mm) | 2.6 |
| Pixel Density(pixels/㎡) | 147456 |
| Pixel Configuration | SMD 3 in 1 |
| Viewing Angle(Deg.) | 160(H)/160(V) |
| Brightness(nits) | ≥1000 |
| Contrast Ratio | ≥3000:1 |
| Grey Level(bit) | 12/14/16 |
| Refresh Rate(Hz) | 1920/2880/3840 |
| Module Dimension(mm) | 250(W)×250(H) |
| Module Dimension(inch) | 9.84(W)×9.84(H) |
| Module Resolution(pixels) | 96(W)×96(H) |
| Panel Dimension(mm) | 500(W)×500(H)×88(D) |
| Panel Dimension(inch) | 19.68(W)×19.68(H)×3.46(D) |
| Panel Resolution(pixels) | 192×192 |
| Panel Material | Die-casting aluminum |
| Panel Weight(kg) | ≤8 |
| Max. Hanging Panel Quantity . | ≤20 |
| Voltage(V) | AC 100~240 |
| Avg.Power Consumption(W/㎡) | 210 |
| Max.Power Consumption(W/㎡) | 630 |
| Serviceability | Front/Rear |
| Protection Grade(Front/Rear) | IP30 |
| Operating Temp/Humidity(℃/%RH) | -10~+40/10~80 |
| Storage Temp/Humidity(℃/%RH) | -20~+60/10~85 |
| Lifetime(hours) | 100000(Normal Temp) |
| Compliant Standard | CE,RoHS,FCC |
