RDU-3068

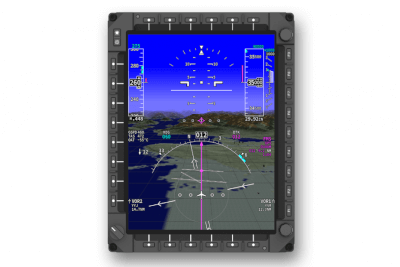

10.4” (6” x 8”) Rugged Display Unit for Harsh Environments
Základní informace
- Best-in-class true 8-bit AMLCD for superior color rendering
- Very wide viewing angles – ideal for cross-cockpit viewability
- Brightness up to 275fL, making it suitable for installation in helicopters and open cockpit aircraft
- NVIS Class B compatibility
- Guaranteed brightness and color range over the operating temperature of the display and over its lifetime
- Multiple video inputs
- Quiet by design, thanks to its closed and fan-less architecture
Product description
The RDU-3068’s proprietary Active Matrix Liquid Crystal Display and LED backlight technology deliver a visual performance second to none: true 8-bit color depth with high contrast ratio and superior color stability, very wide viewing angles and superior brightness in Day, Night and NVIS modes. And there is even more: the optical quality is guaranteed over the complete operating temperature range and lifetime of the display, thanks to ScioTeq ’s proprietary control mechanisms. As an option, the light can be collimated to reduce reflections on the windshield or canopy.
The software and firmware of the RDU-3068 are developed according to DO-178C and DO-254 respectively, up to and including Design Assurance Level (DAL) A. This display is therefore an ideal candidate for Part 23, Part 25, Part 27 and Part 29 electronic flight instrument systems.
Specifikace
ELECTRO-OPTICAL
| Panel type | Active matrix LCD (normally black) |
| Panel active area | 10.4" diagonal (6" x 8") |
| Panel resolution | 1024 x 768 |
| Color depth | True 8-bit - 16,777,216 colors and 256 grayscales |
| Viewing angle | H: +/-80° V: +/-80° Can be tailored to program requirements, such as the addition of specific collimation to reduce canopy reflections, etc. |
| Backlight | LED backlight |
| Luminance | 0.1 up to 275fL (non-NVIS mode) 0.03 up to 2fL (NVIS mode) Luminance stabilized over the life time and the complete temperature range of the display |
| Sunlight readability | Contrast ratio >14:1 @ 10,000 fC |
| NVG compatibility | MIL-STD-3009 Type I/II, NVIS Class B |
| Heater | Heater for display startup at extremely cold temperatures (optional) |
INTERFACES
| Video inputs (1) | Dual video inputs are standard Default Inputs: 2x DVI-D Other video inputs possible (Arinc 818, HD-SDI, etc.) |
| Inputs/Outputs (1) | Video source/mode selection and BIT data retrieval via either RS-422 or A429 Discretes for display configuration, lighting mode selection, etc. ARINC 429 control, RS-232 maintenance interface |
CONTROLS
| Brightness control | ALS sensors, bezel control, or remote |
| Bezel controls (1) | Available with custom bezels |
| Touch screen | Multi-touch capability through PCAP with built-in mechanisms for certifiable touch interface (optional) |
GENERAL SPECIFICATIONS
| Power supply | 28VDC, MIL-STD-704A |
| Power consumption | 40W @ 250fL (20C ambient) |
| Weight | 3.2 kg / 7 lbs |
| Cooling | Passive cooling (no requirement for forced external cooling) - fan-less design |
| Built-in testing | PBIT / CBIT / IBIT |
| Software | RTCA/DO-178 up to Design Assurance Level (DAL) A |
| Hardware | RTCA/DO-254 up to Design Assurance Level (DAL) A |
ENVIRONMENTAL CONDITIONS
| Compliance | DO-160G; MIL-STD-810G & MIL-STD-461E (optional) |
| High temperature | +70C operational / +85C short-time / +85C ground survival |
| Low temperature | -45C operational / -55C ground survival |
| Altitude | 50,000 ft |
| Water proofness, salt fog, sand & dust | Withstands the harshest environments - closed and fan-less unit design |
