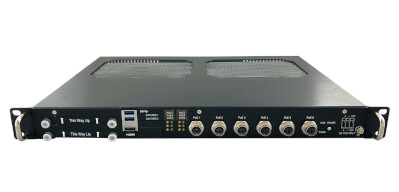

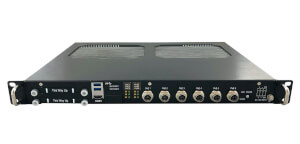

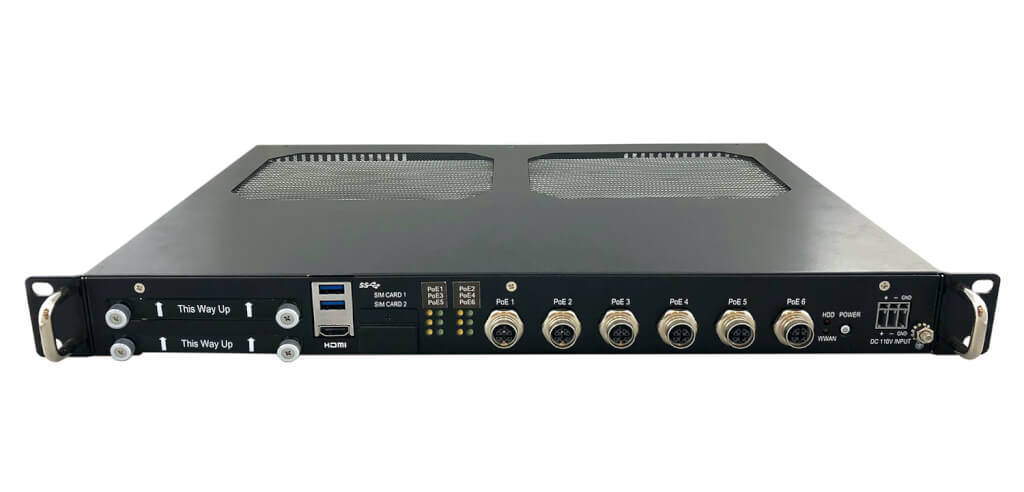

RBOX-1000
Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE with optional PoE In-Vehicle Computer/ EN50155 Railway Applications
Základní informace
- Intel Core i7-6600U / i5-6300U / i3-6100U
- Wireless support LTE, 3.5G w/ SIM Card, GPS, Bluetooth
- 6 x GbE optional PoE
- Isolated wide Input Range 77-137V DC
- Dual Hot Swappable SATA Storage, RAID 0,1,5
- EN50155 Tx temperature and class S2 interruption
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Gen6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen6 Core i5-6300U 2.4GHz up to 3GHz Intel Gen6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz |
| Memory | 2 x SO-DIMM DDR4 up to 32GB |
| LAN Chipset | 6 x Intel I210AT |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| POWER REQUIREMENT | |
| Power Input | 77-137V DC Power Input with Isolation |
| Power Management | Automatics Recovery Short Circuit Protection Meet EN50155 Class S2 |
| I/O | |
| USB Port | 2 x USB 3.0 Ports |
| LAN | 6 x 10/100/1000 Mb/s w/ M12 X-code (optional PoE total 100W max.) |
| Video Port | 1 x HDMI |
| SIM Card Socket | 2 x SIM Card Sockets, supported onboard with eject |
| Expansion Bus | 2 x Mini-card slots (USB Bus only) |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions (LxWxH) | 482 x 300 x 44 mm |
| Mounting | 1U 19" Rock mount |
| Weight | 2500g |
| Relative Humidity | 10 RH ~ 95% RH |
| Operating Temp. | -40 ~ 70°C EN50155 Tx |
| Storage Temp. | -40 ~ 85°C |
| Vibration & Shock | EN50155, EN61373 |
| Certifications | EN50155, EN50121-1, EN50121-3-2 |
