QutePC 3020
Mini PC s procesorem Intel dual-core Atom 330 +NVIDIA® ION
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
- Ultra Quiet, Ultra Small, Ultra-Low Power
- Intel® dual-core Atom Processor 330
- NVIDIA® ION™ GeForce 9400M (MCP79) with support for H.264/AVC
- Support DDR2 667/800 SODIMM up to 2GB
- 1x DVI-I, 1x HDMI, 1x GbE and HD Audio
- 2.5” (6.35cm)SATA HDD, 3-in-1 card reader and 4x USB
- 802.11 b/g/n Wireless Ethernet
| Construction | Plastic Housing |
| System Board | Proprietary motherboard, Intel® Atom 330 Processor , NVIDIA MCP7A-ION |
| Memory | DDR2 667/800 SO-DIMM up to 2GB |

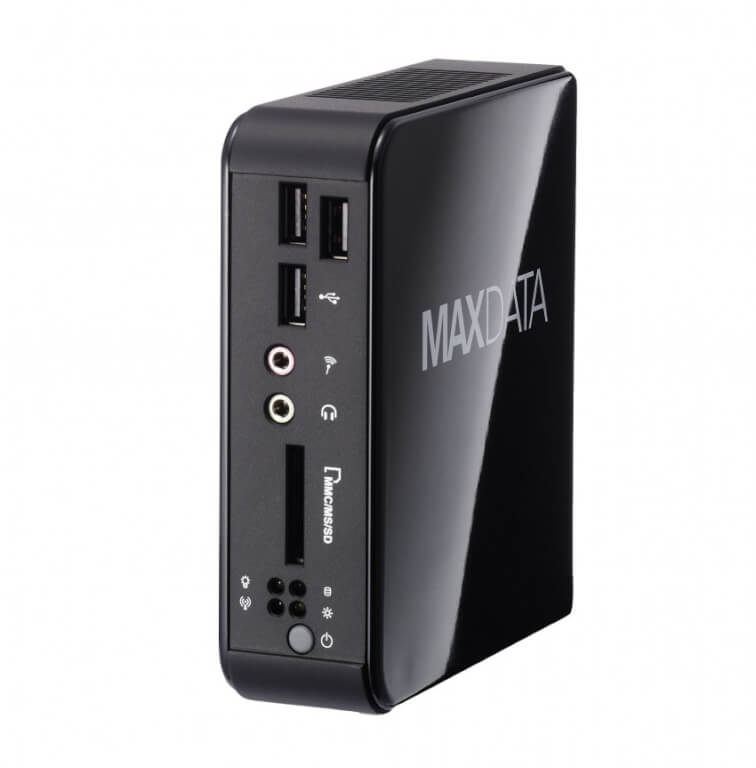

| I/O Panel | Front I/O panel: |
| 1x Phone Jack for Line-Out | |
| 1x Phone Jack for MIC-In | |
| 1x Push button for power on/off | |
| 1x POWER LED | |
| 1x HDD LED | |
| 1x Wifi LED | |
| 1x Card Reader LED | |
| 3x USB2.0 | |
| 3-in-1 SD/MS/MMC Card Reader (or optional eSATA) | |

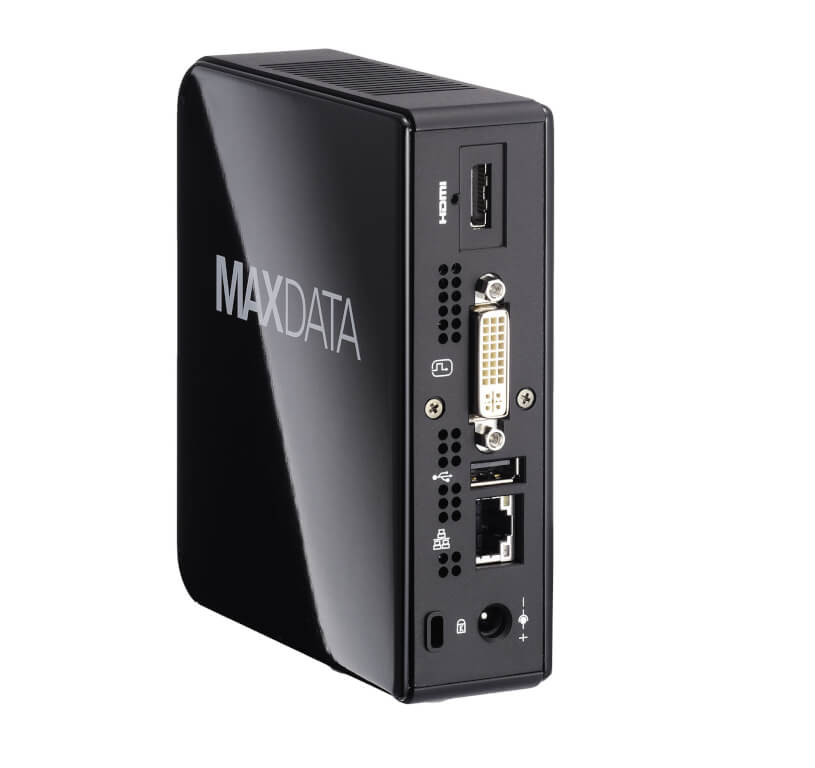

| Rear I/O panel: | |
| 1x DC JACK for DC9V ~ DC19V input | |
| 1x DVI-I connector for CRT & DVI output | |
| 1x HDMI | |
| 1x USB2.0 | |
| 1x RJ-45, GbE port | |
| Reset CMOS | |
| 1x Push button for reset CMOS | |
| Storage | 1 x 2.5”(6.35cm)SATA HDD |
| Wireless | 1x WLAN mini PCIe card (802.11 b/g/n) |
| Power Supply | Input: 100-240 VAC, 50-60 Hz |
| Output: 65W, +19VDC/3.42A output | |
| Expansion Slot | 1 x Mini PCI-Express Socket (for optional WiFi) |
| Cooling | System Fan |
| Temperature/ Humidity | Operating: 0°C to 40°C, 0%-90%, non-condensing |
| Storage: -20°C to 80°C, 0%-90%, non-condensing | |
| Dimensions (WxHxD) | 3.90 x 13.00 x 11.50 cm |
| 1.54 x 5.12 x 4.53 inches | |
| Weight | TBD g |
| Mounting | Desktop, VESA-mount |
| Others | Kensington Lock support |
| Certification | CE, FCC Class B |
