QutePC 1000
Mini-PC s procesorem Intel® Atom N270 +Intel® 945GSE + ICH7-M
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
- Ultra Quiet, Ultra Small, Ultra-Low Power
- Intel® Atom Processor N270
- Intel® 945GSE + ICH7-M
- Support DDR2 533 SODIMM up to 2GB
- Support up to 1080P with add-on HD decoding module
- Support 1x DVI-I, 1x GbE, 1x 2.5” (6.35cm) SATA HDD, 1x eSATA, 4x USB and Audio
- Optional CompactFlash Socket and Wireless Ethernet
| Construction | Plastic Housing |
| System Board | Proprietary motherboard Intel® Atom N270 Processor 945GSE / ICH7-M |
| Memory | DDR2 533 SO-DIMM up to 2GB |

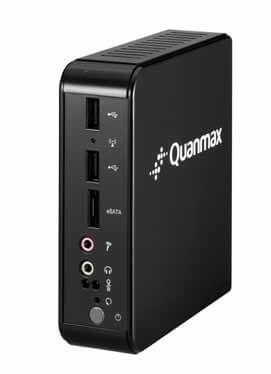

| I/O Panel | Front I/O panel: |
| 1x Phone Jack for Line-Out | |
| 1x Phone Jack for MIC-In | |
| 1x Push button for power on/off | |
| 1x Push button for reset | |
| 1x POWER LED | |
| 1x HDD LED | |
| 1x Wifi LED | |
| 2x USB2.0 | |
| 1x eSATA connector | |

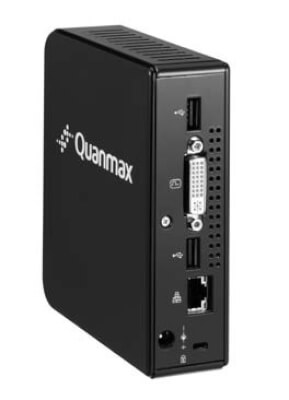

| Rear I/O panel: | |
| 1x DC JACK for DC9V ~ DC24V input | |
| 1x DVI-I connector for CRT & DVI output | |
| 2x USB2.0 | |
| 1x RJ-45, GbE port | |
| Storage | 1 x 2.5” SATA HDD (default) |
| 1 x internal CF socket (optional) | |
| Wireless | 1x WLAN mini PCIe card (optional) |
| Power Supply | Input: 100-240 VAC, 50-60 Hz |
| Output: 30W, +19VDC/1.58A output | |
| Power Consumption | 20W (without USB and eSATA devices) |
| Expansion | 1 x Mini PCI-Express Socket (for optional WiFi) |
| Cooling | System Fan |
| Temperature / Humidity | Operating: 0°C to 40°C, 0%-90%, non-condensing |
| Storage: -20°C to 80°C, 0%-90%, non-condensing | |
| Dimensions (WxHxD) | 3.90 x 13.00 x 11.50 cm (1.54 x 5.12 x 4.53 inches) |
| Weight | 650 g |
| Mounting | Desktop, VESA-mount |
| Others | Kensington Lock support |
| Certifications | CE, FCC Class B |
