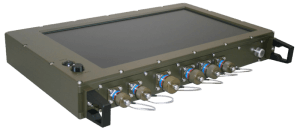

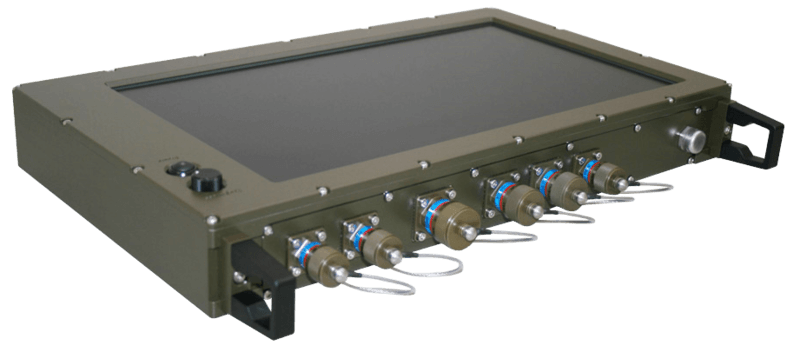

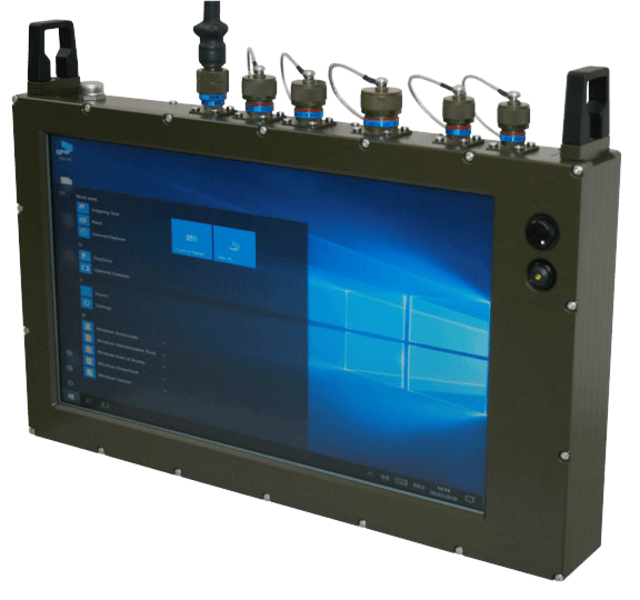

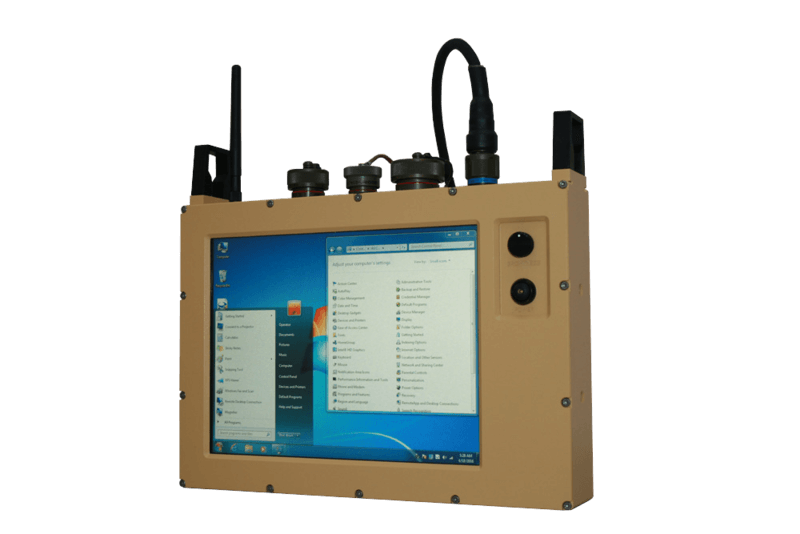

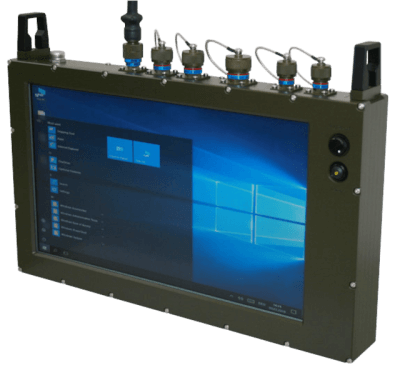

Orca Tactical Terminal
Extremely rugged, flexible customizable system concept, long-term availability
Základní informace
The beltronic-IPC ORCA Tactical Terminal is built to be used in military and industrial areas which call for this kind of robust and reliable system.
The compact and very solid aluminum housing meets industrial and MIL-810 environmental requirements.
The system complies to high EMC/EMI standards. It operates on 10V DC to 36V DC.
The modular design concept of the ORCA Tactical Terminal allows the building of a great variety of customized versions. Changes in the mechanical structure and various hardware options are available even on small quantities to meet the customer applications.
Specifikace
| Housing | Rugged aluminum housing with anti corrosion treatment powder coating in all RAL colors |
| CPU | Intel Atom or Core i5 / i7 mobile CPU |
| RAM | Up to32GB DDR3 |
| Storage | 120GB up to 500GB 2.5" SSD |
| Display | 10.4" WXGA LED Display (1024x768), day light readable with anti glare |
| Touch | Optional |
| OS | Windows 7 or 10, Linux |
| Power | 10-36VDC |
| IP Protection | IP65 |
| MIL Connectors | MIL I/O Connectors for all I/O ports according to customers specificatio |
| MIL STD | 810G (optional 1275B or 461F) |
Fotogalerie
NAVRHNEME VÁM ŘEŠENÍ NA KLÍČ
Hledáte technologického partnera? Neváhejte se na nás obrátit.
