nROK 6221
Intel Atom® E3950 Fanless Rolling Stock Computer with EN50155
Základní informace
- Intel Atom® processor quad core E3950, up to 2.0GHz
- Six SIM cards + three WWAN modules support
- Built-in u-blox-M8N GPS
- Built-in CAN Bus 2.0B
- 1 x External storage (compatible with 15mm disk)
- EN50155 conformity
- 3 x mini-PCIe + 2 x M.2 socket expansion
- Wide voltage input 9~48 VDC
- 1 x DB9 for 1 x Mic-in, 2 x Line-out
- Three video outputs, two VGA and one HDM
nROK 6221, based on Intel® Core™ quad core processor E3950 (up to 2.0GHz), is specifically comply with stringent EN50155 standard in rugged, fanless and compact mechanism. nROK 6221 provides complete communication capability between train and computer with build-in CAN Bus 2.0B interface. nROK 6221 features rich WLAN and WWAN wireless connectivity. With dual SIM cards per modem support, nROK 6221 allows six SIM cards backup each other for a better connectivity quality or extra bandwidth by software. In addition, six SIM cards and three WWAN modules architecture can increase the bandwidth for a faster data transmission speed. Equipped with intelligent power management, nROK 6221 can be waked on by ignition, RTC timer or SMS message remotely. By integrating the variety of I/O ports, 3 x mini-PCIe, 2 x M.2 sockets expansibility, up to three screens via VGA and HDMI connections, nROK 6221 keeps the flexibility to meet the demand for different rolling stock applications, such as infotainment, dispatching system, cellular/wireless network connectivity, and video surveillance. The design of mini-PCIe slots x 3 can solve the potential request from the market when needed.
Specifikace
| CPU | Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core |
| Memory | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB |
| Video Output | Chipset Intel® HD graphics 505 1 x HDMI 1.4b up to 4096 x 2160 @30Hz 2 x VGA up to 1920 x 1200 @60Hz |
| Storage | 1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive) 1 x CFast (externally accessible), optional mSATA |
| Expansion | 1 x Full size mini-PCIe socket (USB 2.0) with 2 x external SIM 1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0), optional full size mini-PCIe socket (USB 2.0) with 2 x external SIM 1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0) 1 x M.2 3042 B key (USB 2.0, USB 3.0) with 2 x external SIM 1 x M.2 3042 B key (USB 2.0, USB 3.0, PCIe 2.0) with 2 x external SIM |
| GNSS and On Board Sensor | 1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou Optional M8U modules with dead reckoning available G Sensor (3-axis, 10-bit resolution) |
| LAN and Power over Ethernet | 2-Port LAN, 10/100/1000 Mbps I210-IT GbE, optional 3-port LAN |

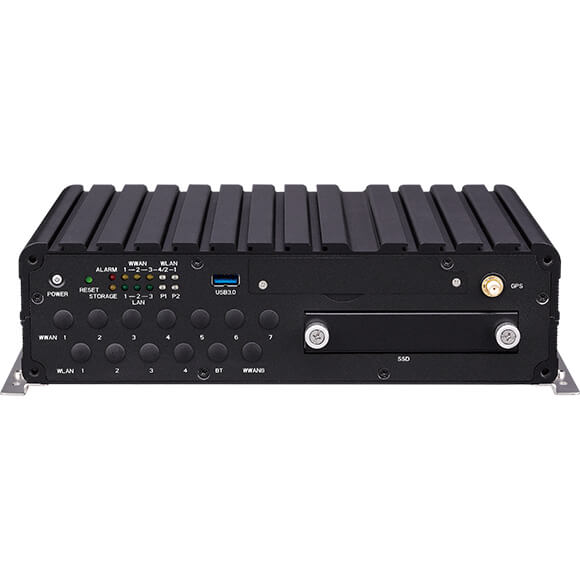

| I/O Interface-Front | 12 x LED indicators (including 2 x programmable LED) 6 x Externally accessible SIM card sockets with cover 1 x 2.5" removable SSD tray 1 x Externally accessible CFast card socket with cover 1 x Reset button1 x Power button1 x USB 3.0 type A (5V/0.9A) 14 x SMA antenna |

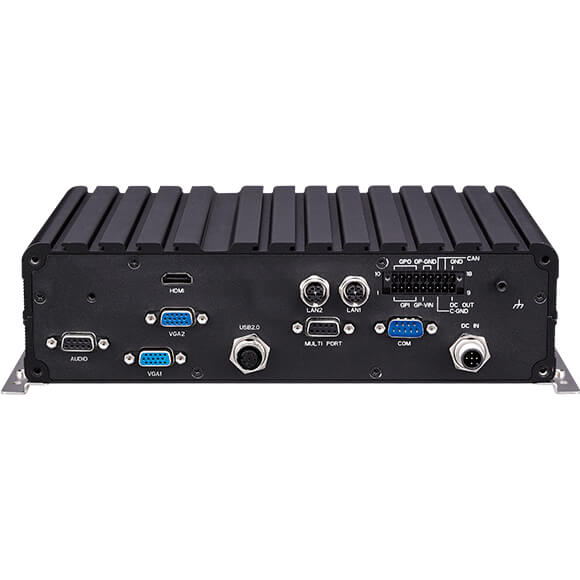

| I/O Interface-Rear | 1 x Circle type DC input with ignition - 24/36 VDC (9~48 VDC), non-isolation 1 x M12 with two USB 2.0 2 x M12 X-coded LAN port, 10/100/1000 Mbps 1 x DB9 (AUDIO), female for 1 x Mic-in, 2 x Line-out 2 x VGA 1 x HDMI 1.4b 1 x DB9 (COM) full RS-232 (isolation) 1 x DB9 (MULTI PORT) for RS232 TX/RX, RS485 (all w/ isolation), USB 2.0 1 x 18-pin terminal block - 1 x CAN Bus 2.0B (on board) - 4 x DI with isolation - 4 x DO with isolation - Vin, GND for GPIO |
| Power Management & Software Support | Power input 24/36 VDC w/o isolation Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Support S3/S4 suspend mode 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code |
| Operating System | Windows 10/Linux |
| Dimensions | 260mm (W) x 196mm (D) x 70mm (H) (10.24" x 7.79" x 2.75") |
| Weight | 2.8kg |
| Environment | Operating temperatures - 40°C to 70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| Standards/Certifications | CE FCC Class A EN50155 conformity: 2017 - Ambient temperature EN 50155, class OT4 (-40~70°C) - Shock and vibration IEC 61373 class B - Interruptions of voltage supply class S1, S2 - Supply change over class C1, C2 - EMC EN 50121-3-2: 2016 |

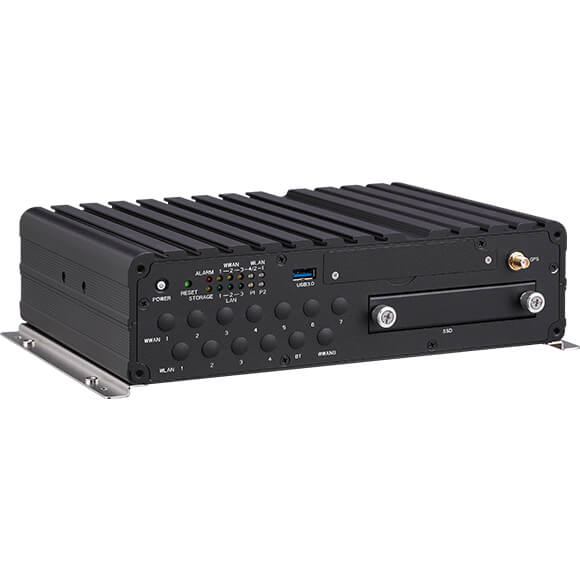

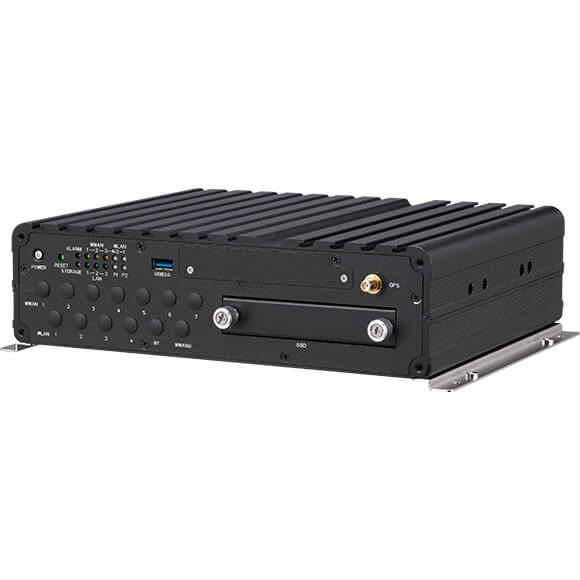

Fotogalerie
