VTC 1000
Intel® Atom™ E640 Fanless In-vehicle Computer
Základní informace
- Compact and Fanless Design
- Built-in GPS Receiver with Optional Dead Reckoning Function
- Support CAN Bus
- Variety Wireless Communication Options
- Wake on RTC/ SMS via WWAN Module (Option)
- Wide Range DC Input from 6~ 36V
- Smart Power Management with Ignition On/Off Delay via Software Control and Low Voltage Protection
- Certified by CE/ FCC/ e13 Mark
Specifikace
| Main Chipset | EG20T |
| CPU | Intel® Atom™ E640 1.0GHz |
| Memory | On-board DDR2 1GB |
| Expansion | Mini-PCIe socket (PCIe + USB) x 1 (for WLAN module) Mini-PCIe socket (USB) x 1 (for 3.5G module) 1 x Bluetooth module (optional) 1 x GPS module |

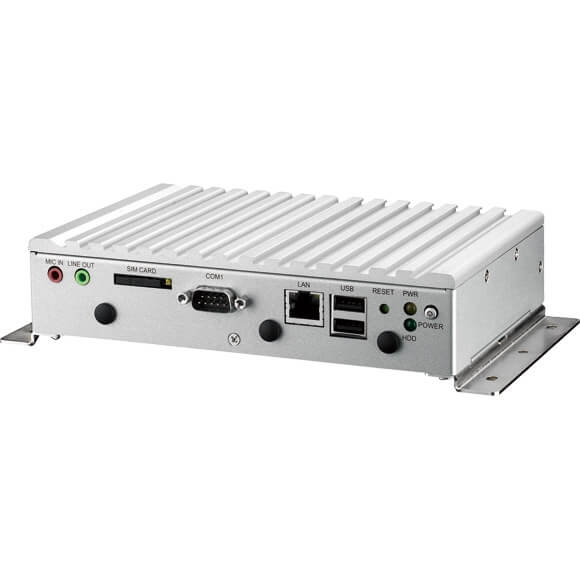

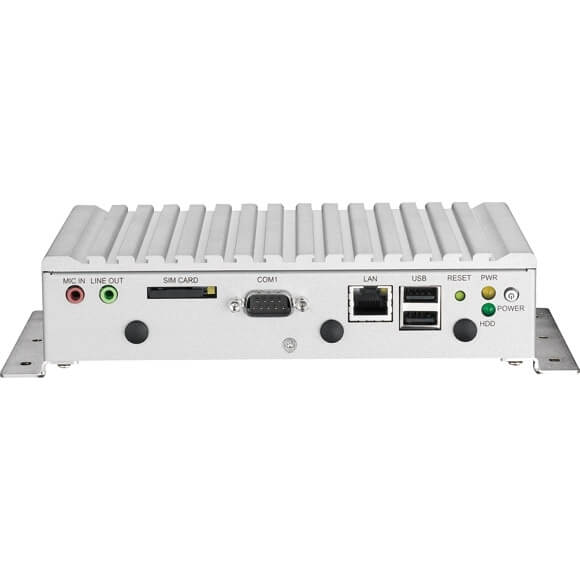

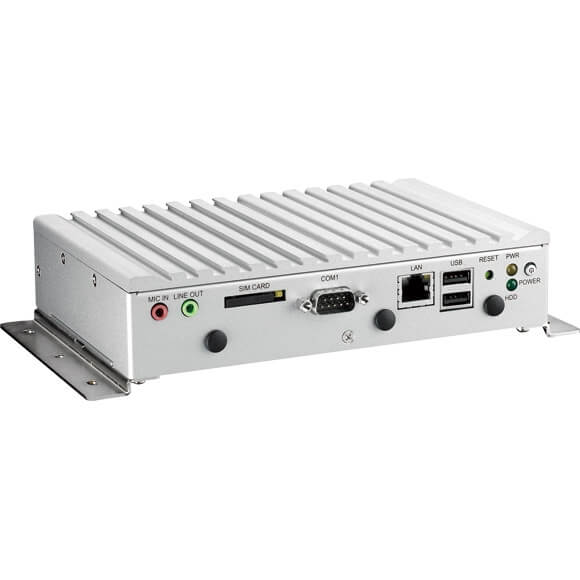

| I/O Interface-Front | 2 x LED indicators for power status and wireless communication 1 x COM port (RS-232) 2 x USB port 1 x RJ45 for 10/ 100/ 1000 Ethernet 1 x SIM card socket 1 x System reset button 1 x Mic-in, 1 x Line-out 1 x Power button 3 x antenna hole reserved for SMA-type antenna connector (HSDPA/ WLAN/ BT) |

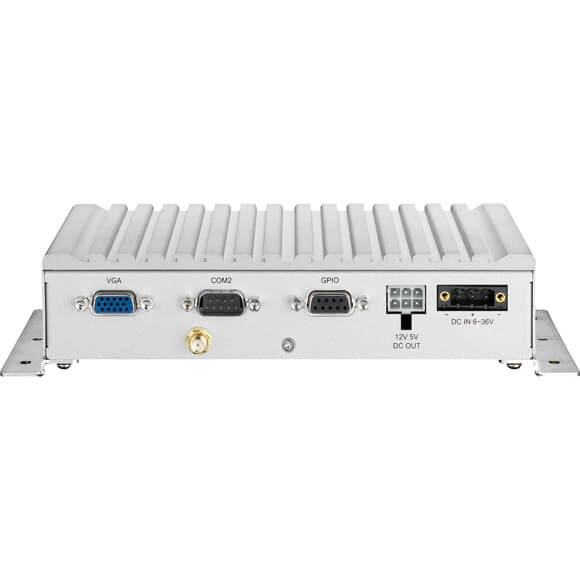

| I/O Interface-Rear | 1 x com port (2 x RS422/ RS485) 1 x com port ( 1 x CAN bus and 2 x GPIO) 1 x DB15 VGA port 1 x DC output (5V/1A, 12V/1A) 1 x DC input via 3-pin connector |
| Expandable Storage | 1 x 2.5" SATA SSD Bay |
| Power Management | Selectable boot-up & shut-down voltage for low power protection HW design ready for 8-level delay time on/off at user's self configuration Power on/ off ignition, software detectable Support S3/ S4 suspend mode; wake on RTC/ SMS |
| Dimensions | 180 mm (W) x 120 mm (D) x 40 mm (H) (7.1" x 4.7" x 1.6") 1 Kg (2.20 Lb) |
| Construction | Aluminum Top Case with Metal Sheet |
| Environment | Operating temperatures Ambient with air: -20°C to 70°C (SSD) Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 2g @5~500 Hz with SSD Vibration: Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck; Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test |
| Shock | Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g Crash Hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g |
| Certifications | CE approval FCC Class B e13 Mark |
