NISE 3520
Intel® Core™ i7/i5 Fanless System with Mini-PCIe socket, Wireless Interface, HDMI and one Expansion Slot
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Support Intel® Core™ i7/i5 socket processor
- Mobile Intel® QM57 PCH
- Dual Intel® Gigabit Ethernet ports
- Dual VGA or VGA/DVI or DVI/HDMI Independent Display
- 3 x RS232 and 1 x RS232/422/485 with Auto Flow Control
- 1 x Mini-PCIe socket with mobile interface and one external SIM card holder
- On-board DC to DC power design to support 9V to 30V DC power input
- Support ATX power mode and PXE / WOL
Specifikace
| Main Board | NISB3520 On board Mobile Intel® QM57 Platform Controller Hub Support Intel® Core™ i7-620M PGA Processor (2.66GHz, 4M Cache) Support Intel® Core™ i5-520M PGA Processor (2.4GHz, 3M Cache) Support Intel® P4500 PGA Processor (1.86GHz, 2M Cache) |
| Main Memory | 2x 240-pin memory DIMM, up to 4GB DDR3 800/1066MHz SDRAM, unbuffered and non-ECC * Note: Actual memory size is dynamic based on the OS I/O resource allocation |

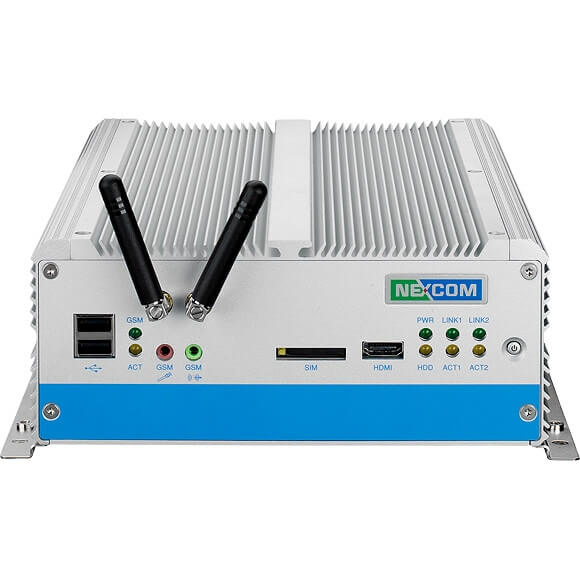

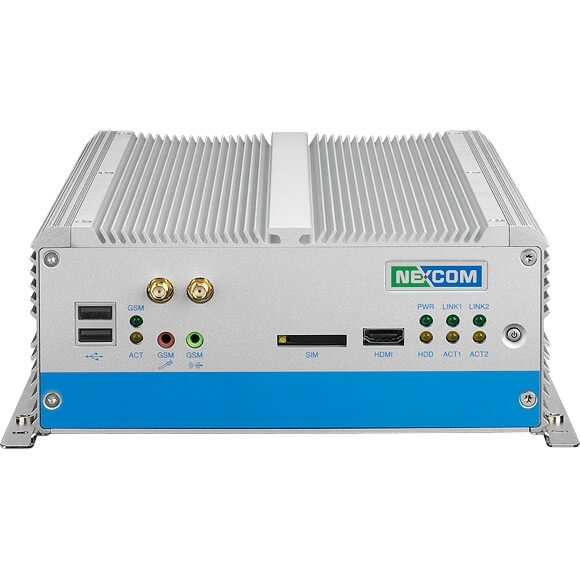

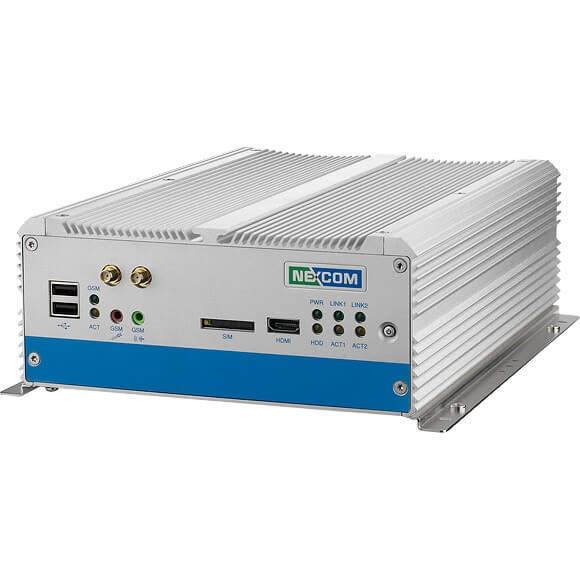

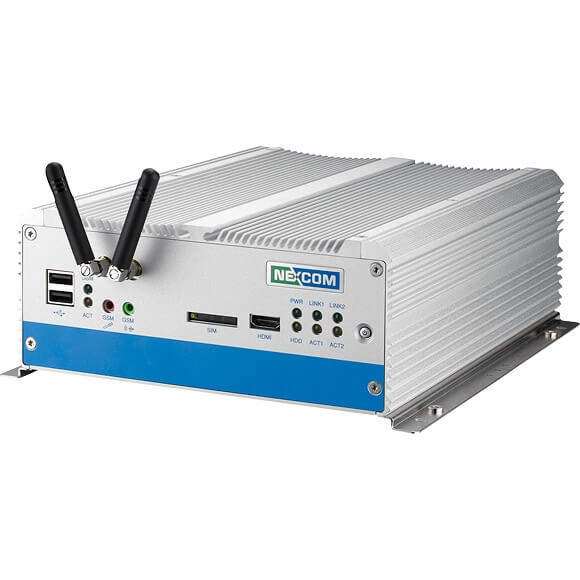

| I/O Interface-Front | ATX power on/off switch HDD Access/Power status LEDs Wireless Active LEDs 2 x Antenna holes 2 x USB2.0 ports 1 x Line-out and 1x Mic-in 1 x HDMI 1 x External SIM card holder |
| I/O Interface-Rear | 2-pin Remote Power on/ff switch 9~30V DC input 1 x PS/2 for Keyboard / Mouse 1 x DB15 male connector for GPIO (4x input and 4x output) 1 x DB44 Serial Port for 4x RS232 (COM2: RS232/422/485 with auto flow control) 2x GbE LAN ports 4 x USB2.0 ports 1 x DB15 VGA port 1 x DVI-I port 1 x Speaker-out and 1x Mic-in |
| Device | 1 x 2.5" HDD driver bay |
| Expansion | 1 x PCI expansion: Add-on card length: 169mm max 1 x Mini-PCIe socket |
| Power Requirements | ATX power mode On-board DC to DC power support from 9V to 30V DC Optional power adapter |
| Dimensions | 195mm (W) x 268 mm (D) x 80mm (H) (7.7" x 10.5" x 3.1") |
| Construction | Aluminum Chassis with fanless design |
| Environment | Operating temperature: Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-Condensing) |
| Certifications | CE approval FCC Class A |
