NISE 3110P2
Intel® Core™ 2 Duo, Core™ Duo, Celeron® M Fanless System with 2 x PCI Expansion Slots
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Support Intel® Core™ 2 Duo / Core™ Duo/ Celeron® M Processors
- Intel® 945GME Chipsets
- Dual 1000/100/10Mbps LAN ports
- 6 x USB2.0/ VGA / DVI
- 3 x RS232 and 1 x RS232/422/485 via DB44 Connector
- On-board DC to DC power design to support +12V to 30V DC power input
- Support ATX power supply and PXE / WOL
- Two PCI Expansion Slots
Specifikace
| Main Board | EBC 576FL Support Intel® Core™ 2 Duo, Core™ Duo, Celeron® M family processors Support 533/667 MHz FSB CPU Intel® Embedded Processor Reference List (Intel® Longevity CPU): Core™ Duo Processor (T2500) 2.0G; Celeron® M 440 1.86G |
| Chipset | Intel® 945GME Graphics Memory Controller Hub (GMCH) Intel® 82801 ICH7-M |
| Main Memory | 2 x 240-pin DDR2 533/667 DIMM sockets, up to 4 GB, dual channel unbuffered non-ECC Note: Maximum 4GB. Actual memory size is dynamic based on the OS I/O resource allocation. |
| Expansion | Supports 2 x 32-bit/ 33MHz PCI card PCI Length support: Max. 160 mm x 1 and 240 mm x 1 (With 2.5" HDD installed) Max. 240 mm x 2 (Without 2.5" HDD installed) |

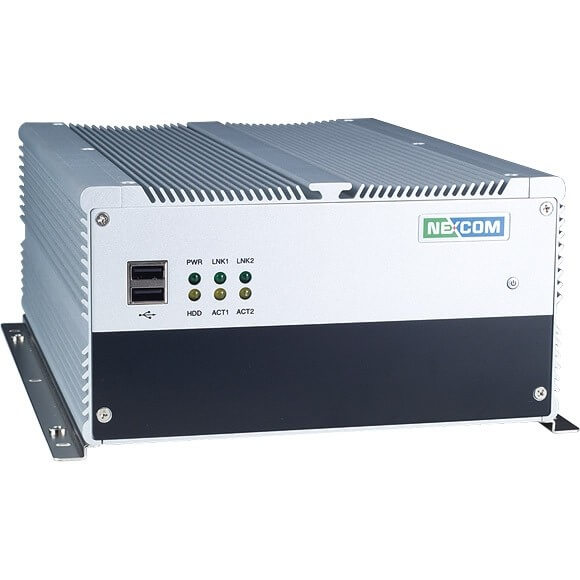

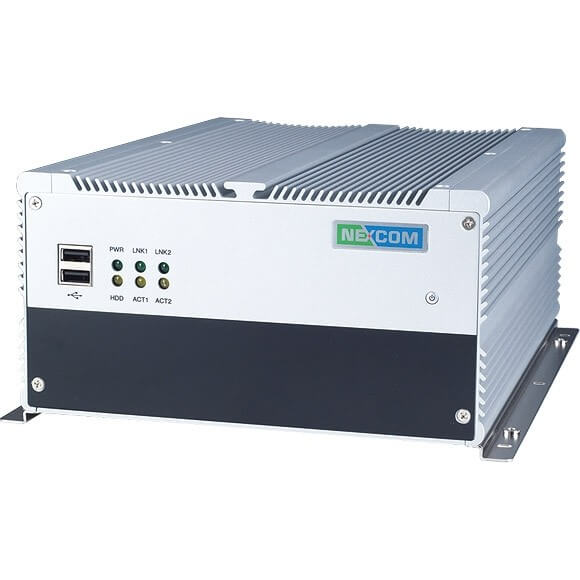

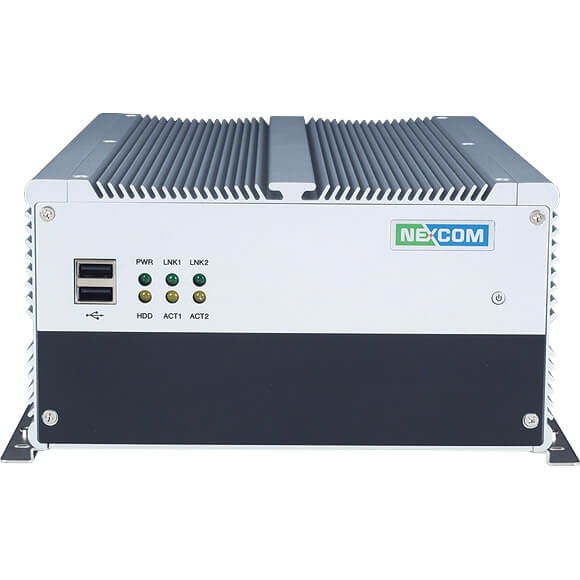

| I/O Interface-Front | Customized logo (Optional) HDD Access/Power/LAN status LEDs 2 x USB 2.0 ports ATX power on/off switch |

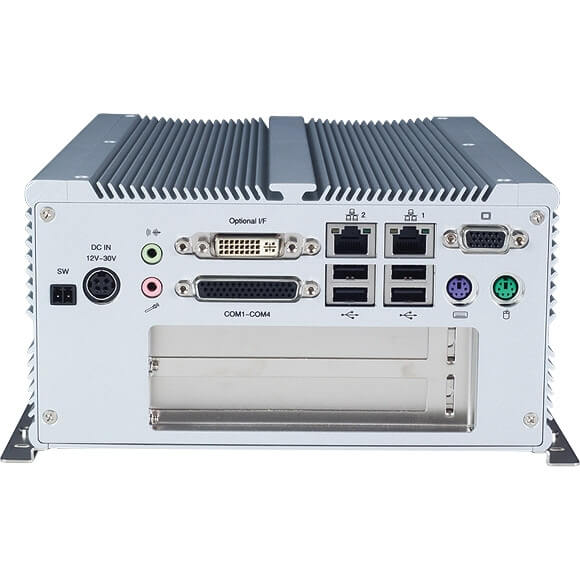

| I/O Interface-Rear | 2 x PS/2 connectors (KB/MS) 1 x DB15 VGA connector 4 x USB 2.0 ports 2 x GbE LAN Ports 4 x Serial Ports, with 1x DB44 connector (Three ports support RS232; One port supports RS232/422/485) 1 x DVI-D interface 1 x Mic-in and 1 x Speaker-out 1 x 2-pin connector output for remote power on/off switch DC-in power connector for +12V ~+30V DC power input |
| Device | 1 x On-board CompactFlash socket 1 x Internal 2.5" HDD drive bay |
| Power Requirements | DC to DC power designed on-board, support from 12V to 30V DC input (Max: 120 Watts) 1 x External 120 W AC adapter; Power input: 100 to 240V AC 2 A 50/60 Hz; Power output: 19V DC |
| Dimensions | 195 mm (W) x 268 mm (D) x 101 mm (H) (7.7" x 10.5" x 3.98") |
| Construction | Aluminum chassis with fanless design |
| Environment | Operating temperature: Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-Condensing) |
| Certifications | CE approval FCC Class A |
