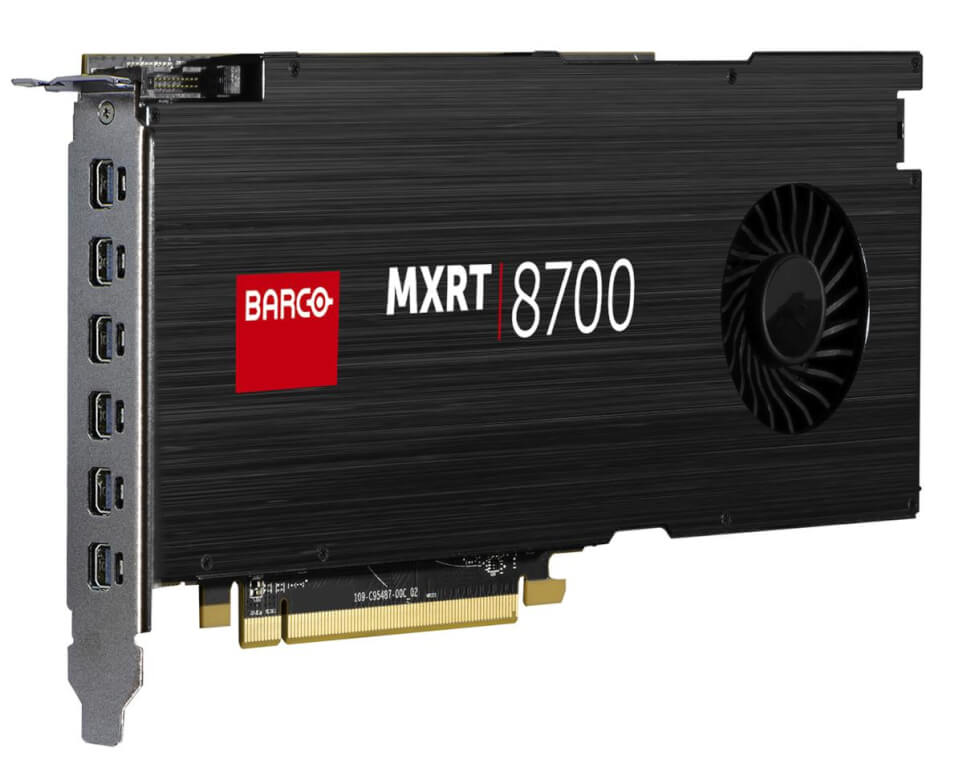

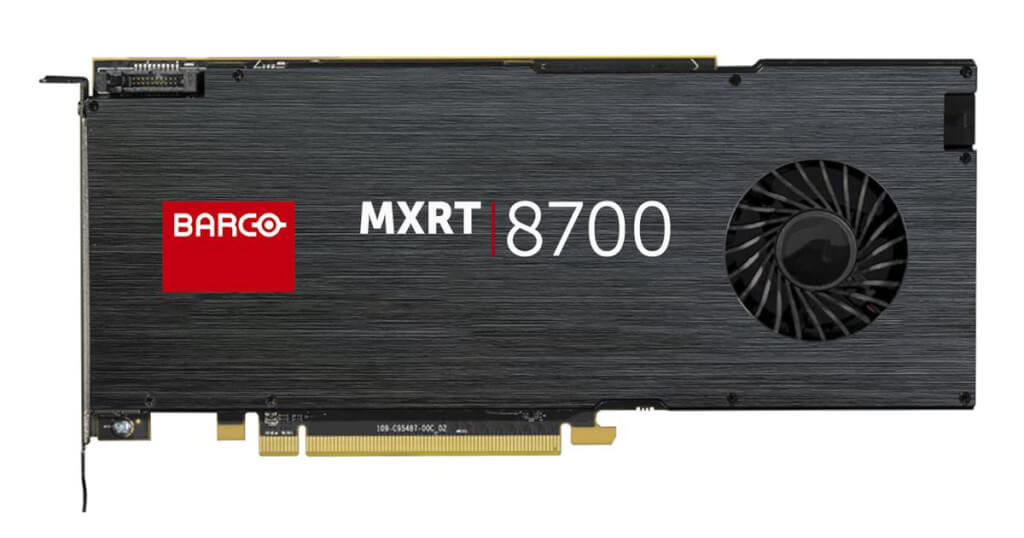

MXRT-8700
16GB, future-proof display controller for GPU-intensive PACS
Základní informace
Flagship GPU for today’s workflow & tomorrow’s diagnostic challenges
Delivering uncompromised features, performance, and reliability, the Barco MXRT-8700 graphics card is designed to handle the most demanding diagnostic workflows and complex image data sets. Available exclusively from Barco, the platform packages 16GB of graphics memory while driving six DisplayPort 1.4 in a single PCI slot, making it is the ideal solution for facilities using advanced multi-display production-level reading stations.
Accelerate your workflow application responsiveness and data transfer with 2304 stream processors, 224 GB/s memory bandwidth and PCIe® 3.0 support. Key features include industry-leading 6 display ports to cover a wide array of display configurations, 16GB DDR5 memory for larger PACS data loading, EDID emulation for multi-workstation configurations, and 30-bit color depth support.
Features
- 16GB GDDR5 display memory
- 224 GB/s memory bandwidth
- 256-bit memory interface
- 6 mini DisplayPorts 1.4 (4 mDP to DP locking adapters included)
- Maximum power consumption: 130W (6-pin)
Specifikace
| Bus compatibility | PCIe Gen3 x16 |
| Power consumption | 130 W |
| Form factor | 241mm (L) x 112mm (H) single wide PCIe slot |
| Operating system | Windows 7 (64-bit), Windows 10 (64-bit) |
| Platforms | Intel® and AMD architectures |
| Power Connector | One 2x3 power connector |
| Graphics accelerator | AMD Radeon Pro™ |
| Display memory | 16GB DDR5 |
| Memory interface | 256-bit |
| Memory bandwidth | 224 GB/s |
| Pixel depth | 32-bit pixels (10-bit grayscale and 30-bit color) |
| Electrical standard | DisplayPort (DP) v1.4 |
| Direct3D hardware support | Microsoft® DirectX v12, Vulkan® 1.1, Shader Model 5.1 |
| OpenGL hardware support | OpenGL 4.5 |
| Connectors | (6x) Mini-DisplayPort 1.4 |
| Approvals and compliance | FCC Part 15 Class B, CE EN 55032 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 32/24, IEC609050-1, VCCI, CSA C22.2, EU RoHS directive (2011/65/EU), Certificate of Information & Communication Equipment (Republic of Korea) |
| Connectivity | Native DisplayPort suggested DisplayPort to Single-link DVI adapter available separately (4x) Mini-DP to DP locking adapters included |
| Operational temperature | 0° to 55°C |
