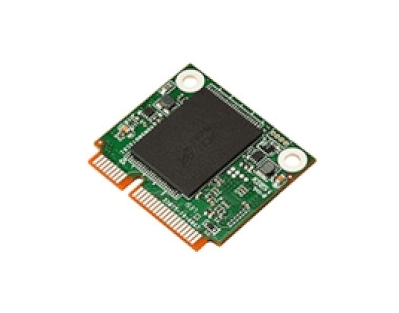

mSATA mini 3ME2
SATA 6.0 Gb/s interface
Základní informace
- SATA 6.0 Gb/s interface
- Intelligent error recovery system
- Excellent data transfer speed
- Zero mechanical interference
- Anti-vibration mechanical design
- JEDEC standard MO-300 dimension
- Half dimension of mSATA regular
Innodisk mSATA mini 3ME2 is designed with mSATA form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk mSATA mini 3ME2 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.
Innodisk mSATA mini 3ME2 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
Specifikace
| Model Name | mSATA mini 3ME2 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 16GB~128GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 340/150 |
| Max. Power Consumption | 0.8W (3.3V x 245mA) |
| Thermal Sensor | Y |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 29.85 x 26.8 x 3.4 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
