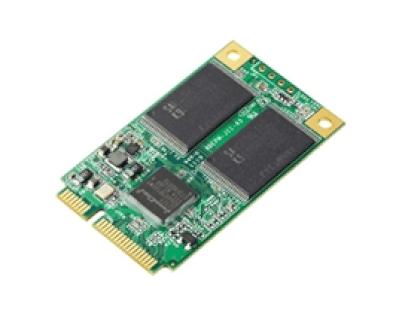

mSATA D150Q
The mSATA D150Q is an SLC-based flash device and is available in capacities from 2GB up to 64GB.
Základní informace
- Static wear leveling algorithm support
- S.M.A.R.T / iSMART disk health monitoring tool
- Excellent data transfer speed
- Write protection security
- Built-in thermal sensor
Innodisk’s mSATA D150Q is designed in a standard mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as digital signage and notebooks. The mSATA D150Q also supports the SATA II standard (3.0Gb/s) and is compliant with JEDEC MO-300 standards and SATA-IO mini SATA standards. The mSATA D150Q is an SLC-based flash device and is available in capacities from 2GB up to 64GB.
Specifikace
| Model Name | mSATA D150Q |
| Interface | SATA II 3.0Gb/s |
| Flash Type | SLC |
| Type | Standard |
| Capacity | 2GB~64GB |
| Sequential R/W (MB/sec, max.) | 130/120 |
| Max. Power Consumption | 1.25W (3.3V x 380mA) |
| Thermal Sensor | Y |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 29.8 x 50.8 x 3.5 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
