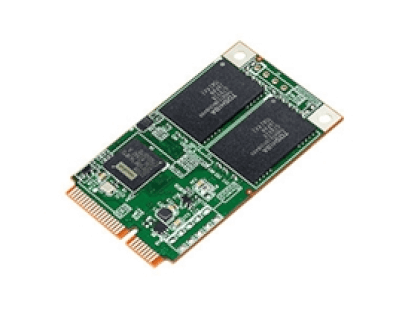

mSATA 3SE3
SATA 6.0 Gb/s interface
Základní informace
- SATA 6.0 Gb/s interface
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Zero mechanical interference
- Anti-vibration mechanical design
- JEDEC standard MO-300 dimension
Innodisk mSATA 3SE3 is designed with mSATA form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0 Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk mSATA 3SE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.
Innodisk mSATA 3SE3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
Specifikace
| Model Name | mSATA 3SE3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Type | Standard |
| Capacity | 4GB~128GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 385/225 |
| Max. Power Consumption | 0.5 W (3.3V x 180 mA ) |
| Thermal Sensor | ST- Optional / WT- Default |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 29.8 x 50.8 x 3.4 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
