Mini PCIeDOM 1ME3
Standard Mini PCIe form facto
Základní informace
- Standard Mini PCIe form factor
- Driverless
- iSMART disk health monitoring
- Intelligent error recovery system
- Optional write protection security
- Anti-vibration mechanical design

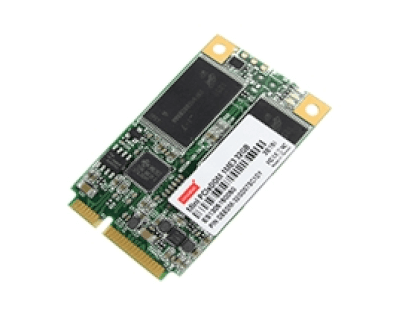

Innodisk Mini PCIeDOM 1ME3 is a Flash based disk module with Mini PCI Express interface, which brings you new generation of storage solution, especially focused on embedded systems. It not only provide standard Mini PCIe interface but also delivers excellent performance.
Comparing with most Mini PCIe storage devices in the market, Mini PCIeDOM 1ME3 comes with standard Mini PCI Express interface, just plug and play without any circuit modification, and no driver needed, which is the easiest way for board maker or system integrator to design in the product as a boot drive or storage device.
Specifikace
| Model Name | Mini PCIeDOM 1ME3 |
| Interface | PCI Express Gen.1 x 1 (mini PCIe) |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~256GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 130/100 |
| Max. Power Consumption | 2 W (3.3V x 620 mA ) |
| Thermal Sensor | Optional |
| External DRAM Buffer | N |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 29.8 x 50.8 x 4.4 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
