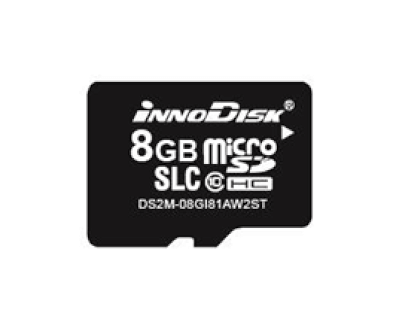

MicroSD Card 2.0
While MicroSD card 2.0 series has been a popular embedded storage device for mobile market, Innodisk has been developing a more reliable MicroSD card that will support ruggedized applications in the embedded fields.
Základní informace
- SD 2.0 interface
- Support static and global wear leveling algorithm
- Intelligent system for error recovery
- Excellent data transfer speed
- Power cycling enhanced
While MicroSD card 2.0 series has been a popular embedded storage device for mobile market, Innodisk has been developing a more reliable MicroSD card that will support ruggedized applications in the embedded fields. Therefore, Innodisk would like to introduce you the industrial-grade MicroSD card built with SLC (Single Level Cell) flash, delivering the most reliable MicroSD card with outstanding performance and excellent endurance.
Specifikace
| Model Name | MicroSD Card 2.0 |
| Interface | SD 1.01/2.00 |
| Flash Type | SLC |
| Capacity | 1GB~8GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 21/19 |
| Max. Power Consumption | 0.16W (3.3V x 30mA ) |
| Dimension (WxLxH/mm) | 11.0 x 15.0 x 1.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
