XM51 - ESMexpress COM with PowerPC QorIQ P4080

MEN XM51 je výcejádrový computer-on-module (COM) založený na procesoru NXP (dříve Freescale) PowerPC QorIQ P4080, P4040 nebo P3041optimalizovaná pro avionické aplikace. The XM51 is a multi-core computer-on-module (COM) based on the NXP (formerly Freesc

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Blokové schéma Specifikace Fotogalerie Ke stažení

Základní informace

NXP QorIQ P4080, P4040 or P3041
Power Architecture e500mc CPU
Up to 8 cores, up to 1.5 GHz
Up to 16 GB ECC DDR3 SDRAM, 1 or 2 controllers
Up to 128 KB FRAM, up to 256 MB Flash
2 Gb Ethernet, 4 USB 2.0, 1 USB client
2 SATA (3 Gbit/s), 2 PCIe x1 (5 Gbit/s)
U-Boot Universal Boot Loader
-50°C to +85°C Tcase with qualified components
Conduction cooling

Blokové schéma

Specifikace

CPU

NXP QorIQ P4080 or P4040 or P3041

1.2 GHz up to 1.5 GHz
Eight/four high-performance Power Architecture e500mc cores

Memory

32 KB instruction and data L1 cache and private 128 KB L2 cache per processor core
Up to 16 GB SDRAM system memory
- Soldered
- DDR3 with ECC support
- Up to 667 MHz memory bus frequency, depending on processor configuration
- P4080/P4040 with two independent memory controllers, P3041 with one controller
Up to 256 MB boot/program Flash
128 KB non-volatile FRAM
Serial EEPROM 8 kbits for factory settings

Serial ATA (SATA)

Two ports via ESMexpress connector
SATA Revision 2.x support
Transfer rates up to 300 MB/s (3 Gbit/s)
Via PCIe-to-SATA bridge

USB

Four USB 2.0 host ports via ESMexpress connector
- OHCI and EHCI implementation
- Data rates up to 480 Mbit/s
One USB client port via ESMexpress connector
- Via UART-to-USB converter
- Data rates up to 230.4 kbit/s
- 16-byte transmit/receive buffer
- Handshake lines: none

Ethernet

Two 10/100/1000Base-T Ethernet channels
Two LED signals per channel for LAN link and activity status and connection speed
Accessible via ESMexpress connector

PCI Express

Two x1 links via ESMexpress connector
PCIe 2.x support
Data rate 500 MB/s in each direction (5 Gbit/s per lane)

GPIO

3 lines via ESMexpress connector

I2C Bus

1 interface via ESMexpress connector

Miscellaneous

Real-time clock (with supercapacitor or battery backup on the carrier board)
Temperature sensor, power supervision and watchdog

Electrical Specifications

Supply voltage/power consumption:

+12V (9..16 V), 32 W max.

Mechanical Specifications

Dimensions: 95 mm x 125 mm (conforming to ESMexpress specification)

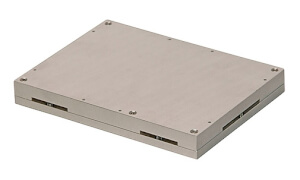

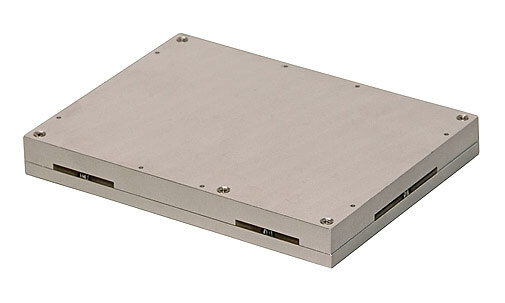

ESMexpress PCB mounted between a frame and a cover
Weight: 230 g (incl. cover and frame)

Environmental Specifications

Temperature range (operation): -50..+85°C Tcase (ESMexpress cover/frame) (qualified components)
Temperature range (storage): -50..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to +3000 m
Shock: 15 g, 11 ms (EN 60068-2-27)
Bump: 10 g, 16 ms (EN 60068-2-29)
Vibration (sinusoidal): 1 g, 10 Hz - 150 Hz (EN 60068-2-6)
Conformal coating on request

MTBF

475 088 h @ 40°C according to IEC/TR 62380 (RDF 2000)

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

EMC behavior depends on the system and housing surrounding the ESMexpress module.

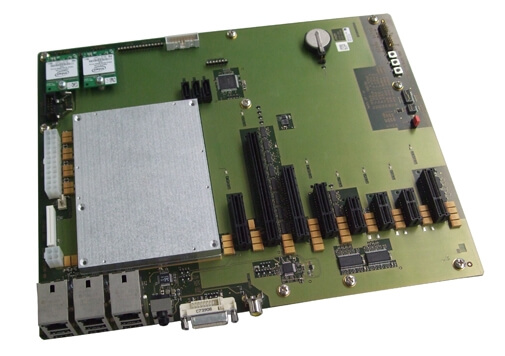

MEN has performed general, successful EMC tests for ESMexpress using the XC1 evaluation carrier according to:
- EN 55022 (radio disturbance)
- IEC 61000-4-2 (ESD)
- IEC 61000-4-3 (electromagnetic field immunity)
- IEC 61000-4-4 (burst)
- IEC 61000-4-5 (surge)
- IEC 61000-4-6 (conducted disturbances)

BIOS

U-Boot Universal Boot Loader

Software Support

VxWorks
Linux (on request)

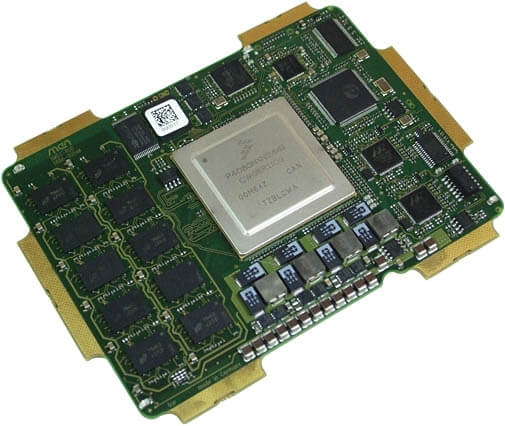

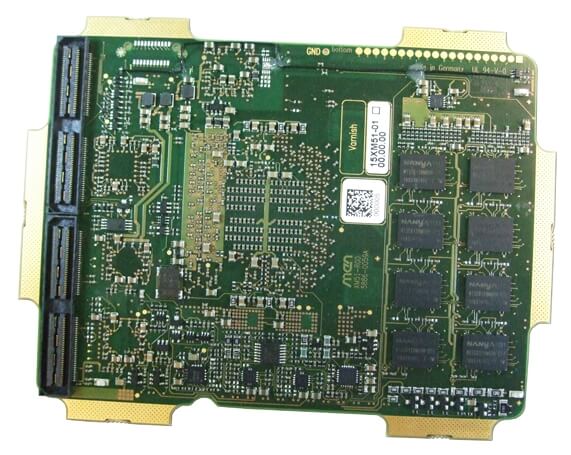

Fotogalerie

Ke stažení

Datasheet MEN XM51
