NM10 Unmanaged 8-Port Rugged Ethernet Switch

IP40 Industrial Stand-Alone Device The NM10 family is a range of fanless and maintenance-free Ethernet switches, which have been specifically designed for use in rolling stock and automotive applications operating in extremely rugged environmental cond

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073
Poptat řešení
Základní informace Specifikace Fotogalerie Ke stažení

Základní informace

Main Features
  • Unmanaged 8-port rugged Ethernet switch
  • Fast or Gb BASE-T Ethernet via M12 connectors on the front panel
  • PoE+ Power Sourcing Equipment (PSE), up to 60 W output power
  • Rugged aluminium enclosure with IP40 protection
  • Fanless and maintenance-free design
  • Ultra wide range power supply input (14.4 to 154 VDC) with interruption class S2
  • -40°C to +85°C operating temperature
  • LED indicators on the front panel
  • Compliant to EN 50155 (railways)
  • Compliant to ISO 7637-2 (E-mark for automotive

NM10 - Unmanaged 8-Port Rugged Ethernet Switch EN50155

Specifikace

Supported Port Types
The following configurations are available:
  • 8x 10/100BASE-T unmanaged switch (Model: 09NM10-00)
  • 8x 10/100BASE-T unmanaged switch, 8x PoE + PSE with max. 60 W output power (Model: 09NM10-01)
  • 8x 10/100/1000BASE-T unmanaged switch (Model: 09NM10-02)
  • 8x 10/100/1000BASE-T unmanaged switch, 8x PoE + PSE with max. 60 W output power (Model: 09NM10-03)
Protocols and Functionality
  • Throughput
    • Dual-speed 10/100 Mbit/s unmanaged switch (Models: 09NM10-00 and 09NM10-01)
    • Tri-speed 10/100/1000 Mbit/s unmanaged switch (Models: 09NM10-02 and 09NM10-03)
  • MAC tables
    • 8192 MAC addresses
  • Processing
    • Store-and-Forward
  • Energy Efficient Ethernet (IEEE 802.3az) on all ports
  • VLAN
    • 4096 VLANs (IEEE 802.1q)
  • Flow Control
    • IEEE 802.3x supported
Power Over Ethernet Features
Power over Ethernet functions on all ports (Models: 09NM10-01 and 09NM10-03)
  • PSE (Power Sourcing Equipment) function
  • Up to 60 W total output power
  • PoE starts in auto mode
Front Interfaces
  • Ethernet
    • Eight M12 connectors, 100BASE-T (100 Mbit/s) (Models: 09NM10-00 and 09NM10-01), or
    • Eight M12 connectors, 1000BASE-T (1 Gbit/s) (Models: 09NM10-02 and 09NM10-03)
  • Ethernet LED
  • Power supply
    • One M12 connector for ultra wide range power
  • Power status LED
    • Indicates power supply stability or range validity
Electrical Specifications
  • Supply voltage
    • 14.4 VDC to 154 VDC
    • Nominal voltages 24, 36, 48, 72, 96 and 110 VDC, according to EN 50155
    • Power interruption class S2 (10 ms)
    • Code H, Starting Profile Level II (50ms @ min 8V), according to ISO 16750
  • Power consumption
    • +10 W Max. (Models: 09NM10-00 and 09NM10-02)
    • +85 W Max. with 60W PoE Max. (Models: 09NM10-01 and 09NM10-03)
Mechanical Specifications
  • Dimensions: Height 44.1 mm x Width 220 mm x Length 164 mm
  • Weight: Less than 1.5 kg (depending on configuration)
Environmental Specifications
  • IP protection
    • IP40 (except front plate)
    • Front plate: IP30
    • Up to IP65 (Option)
  • Temperature range (operation)
    • -40°C to 70°C (screened), with up to 85°C for 10 minutes according to class Tx (EN 50155)
    • Fanless operation
  • Temperature range (storage): -40°C to +85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300 m to +3000 m
  • Shock: 50 m/s², 30 ms (EN 61373)
  • Vibration (function): 1 m/s², 5 Hz to 150 Hz (EN 61373)
  • Vibration (lifetime): 7.9 m/s², 5 Hz to 150 Hz (EN 61373)
  • Conformal coating of internal components
Reliability
MTBF: tbd h @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
  • Flammability
    • UL 94V-0
  • Fire Protection
    • EN 45545-2
  • Electrical Safety
    • EN 60950-1, class I equipment
EMC Conformity (Automotive)
  • ECE R10 (prepared for E-Mark)
  • ISO 16750-H-K-D-C-C-IP30 (On request)
EMC Conformity (Railway)
EN 50121-3-2
Software Support
Firmware for configuration and management included

Fotogalerie

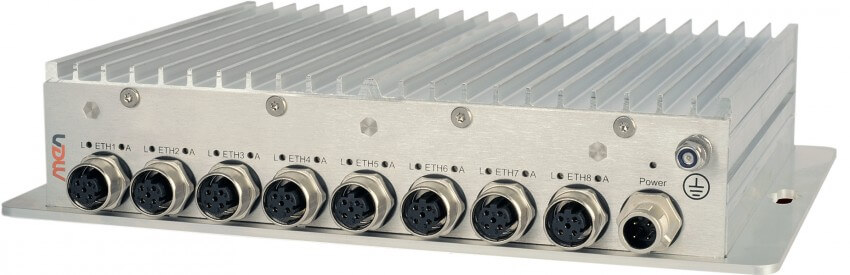

NM10 Unmanaged 8-Port Rugged Ethernet Switch with EN50155

Ke stažení

Datasheet MEN NM10
