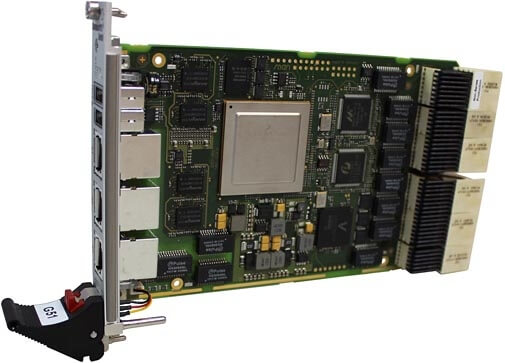

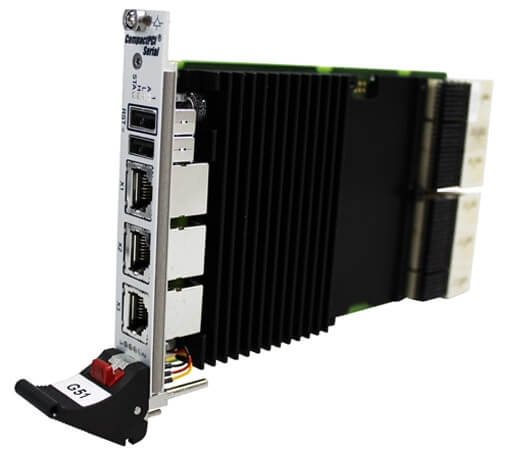

G51 - QorIQ Communications CPU Board

3U CompactPCI Serial The G51 SBC unites the benefits of CPCI Serial and the interface and calculation capabilities of the quad-core P3041 QorIQ CPU, with a total of 4 Gb Ethernet ports.

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Specifikace Blokové schéma Fotogalerie Ke stažení

Základní informace

Main Features

Single-board computer with up to 4 Gb Ethernet
P3041 Freescale QorIQ quad-core PowerPC processor
4 HP system master and peripheral slot
PICMG CPCI-S.0 CompactPCI Serial
Up to 8 GB DDR3 SDRAM soldered, ECC
Standard front I/O: 3 Gb Ethernet, 2 USB 2.0
Standard rear I/O: 3 PCIe, 4 Gb Ethernet, 5 USB 2.0, 2 SATA (3 Gb)
-40 to +85°C with qualified components
Compliant to EN 50155 (railways)

Specifikace

CPU

The following CPU types are available:

Freescale QorIQ P3041, quad core, 1.2 GHz, 600 MHz memory bus, with encryption
Freescale QorIQ P3041, quad core, 1.2 GHz, 600 MHz memory bus, without encryption
Freescale QorIQ P3041, quad core, 1.33 GHz, 667 MHz memory bus, with encryption
Freescale QorIQ P3041, quad core, 1.33 GHz, 667 MHz memory bus, without encryption
Freescale QorIQ P3041, quad core, 1.5 GHz, 667 MHz memory bus, with encryption
Freescale QorIQ P3041, quad core, 1.5 GHz, 667 MHz memory bus, without encryption

Memory

System Memory
- Soldered DDR3
- With or without ECC support
- 2 GB, 4 GB, or 8 GB
Boot Flash
- 64 MB, 128 MB or 256 MB
FRAM, non-volatile
- 0 KB or 8 KB
Please see Ordering Information for available standard versions.

Mass Storage

The following mass storage devices can be assembled:

microSD card
mSATA disk
eMMC device, soldered; different sizes available

Front Interfaces

USB
- Two Series A connectors, USB 2.0 (480 Mbit/s), host/client, or
- No front connectors, for two additional host ports via CPCI-S.0 rear connector
Ethernet
- Three RJ45 connectors, 1000BASE-T (1 Gbit/s), or
- Three M12 connectors, 1000BASE-T (1 Gbit/s)
- All front ports can be switched to the rear using U-Boot for a total of four rear channels
- Two link and activity LEDs per channel
- IEEE 1588 support (PTP, Precision Time Protocol) for 3 front/rear ports and 1 additional rear port
Front-panel LED for board status
Blue front LED for hot plug
Reset button

Onboard Interfaces

Two onboard user LEDs

Rear Interfaces

Compatible with CompactPCI Serial PICMG CPCI-S.0 Specification
SATA
- Two channels, SATA Revision 2.x (3 Gbit/s) (reduces to one port if the link to the mSATA disk is required, can be switched in U-Boot)
Serial GPIO (SGPIO)
- One channel, compliant with SFF 8485 specification
USB
- Five channels, USB 2.0 (480 Mbit/s), host
- Option: Two additional host ports via CPCI-S.0 rear connector instead of front connections, one of them also usable as a client port
Ethernet
- One channel, 1000BASE-T (1 Gbit/s)
- All front ports can be switched to the rear using U-Boot for a total of four rear channels
PCI Express
- Two x2 links (1000 MB/s per link), PCIe 2.x (5 Gbit/s per lane)
- One x4 link (2 GB/s per link), PCIe 2.x (5 Gbit/s per lane)

Supervision and Control

Board controller
Watchdog timer
Temperature measurement
Real-time clock with supercapacitor or onboard battery backup
- Data retention of supercapacitor: 72 hours
Hot-plug capability
- Hot-pluggable when used as a peripheral board

Backplane Standard

CompactPCI Serial PICMG CPCI-S.0 Specification
System or peripheral slot

Electrical Specifications

Supply voltage: +12 V (-5%/+5%)
Power consumption
- The following values are valid for product model 02G051-00, which uses an xyz processor.
- +12 V: tbd A typ., tbd A max.

Mechanical Specifications

Dimensions: 3U, 4 HP
Weight: tbd. g (model 02G051-00)

Environmental Specifications

Temperature range (operation):
- -40..+85°C (qualified components)
- Airflow: min. 1.5 m/s
Temperature range (storage): -40..+85°C
Cooling concept
- Air-cooled, or
- Conduction-cooled in MEN CCA frame
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to +3000 m
Shock: 50 m/s², 30 ms (EN 61373)
Vibration (function): 1 m/s², 5 Hz - 150 Hz (EN 61373)
Vibration (lifetime): 5.72 m/s², 5 Hz - 150 Hz (EN 61373)
Conformal coating on request

Reliability

MTBF: 361 403 h @ 40°C according to IEC/TR 62380 (RDF 2000)

Safety

Flammability
- UL 94V-0
Electrical Safety
- Insulation measurement test according to EN 50155 (12.2.9.1)
- Voltage withstand test according to EN 50155 (12.2.9.2)
- Information technology equipment test according to EN 60950

EMC Conformity
