F50C - PowerPC MPC8548 Conduction Cooled SBC (EOL)

3U CompactPCI F50C is a versatile, rugged MPC8548/MPC8543 PowerPC CPU board in 3U CompactPCI format for embedded applications with conduction cooling.

Základní informace Specifikace Volitelné Blokové schéma Fotogalerie Ke stažení

Základní informace

Produkt se již nevyrábí (EOL) - pro jeho náhradu nás neváhejte kontaktovat

Main Features

32-bit/33-MHz cPCI system slot
1 slot, 9 HP front, rear I/O
MPC8548 (or MPC8543), up to 1.5 GHz
Up to 2 GB (ECC) DDR2 SDRAM
Up to 128 KB FRAM, 2 MB SRAM
Up to 16 GB SSD Flash
FPGA for user-defined I/O functions
MENMON BIOS for PowerPC cards
-40 to +85C Tcase screened
Conduction cooling

Specifikace

CPU

PowerPC PowerQUICC III MPC8548, MPC8548E, MPC8543 or MPC8543E

800MHz up to 1.5GHz
Please see Standard Configurations for available standard versions.
e500 PowerPC core with MMU and double-precision embedded scalar and vector floating-point APU
Integrated Northbridge and Southbridge

Memory

2x32KB L1 data and instruction cache, 512KB/256KB L2 cache integrated in MPC8548/MPC8543
Up to 2GB SDRAM system memory
- Soldered
- DDR2 with or without ECC
- Up to 300 MHz memory bus frequency, depending on CPU
Up to 16GB soldered Flash disk (SSD solid state disk)
Up to 32MB additional DDR2 SDRAM, FPGA-controlled, e.g. for video data
16MB boot Flash
2MB non-volatile SRAM
- With GoldCap backup
128KB non-volatile FRAM
Serial EEPROM 4kbits for factory settings

Mass Storage

Parallel IDE (PATA)
- Up to 16GB soldered ATA Flash disk (SSD solid state disk)
Serial ATA (SATA)
- Up to two ports via rear I/O J2
- Transfer rates up to 150MB/s (1.5 Gbit/s)
- Via PCI-to-SATA bridge
- See interface configuration matrix showing possible I/O combinations (PDF)

I/O

USB (host)
- Four USB 2.0 host ports
- Via rear I/O J2
- OHCI and EHCI implementation
- Data rates up to 480Mbit/s
USB (client)
- One USB client port on series A connector at front panel
- Via UART-to-USB converter
- For first operation and service
- Data rates up to 115.2kbit/s
- 16-byte transmit/receive buffer
- Handshake lines: none
Ethernet
- Up to three 10/100/1000Base-T Ethernet channels with MPC8548/E (two channels with MPC8543/E)
- Via rear I/O J2
- See interface configuration matrix showing possible I/O combinations (PDF)
User-defined I/O
- FPGA-controlled
- Up to 64 I/O lines
- Connection via rear I/O J2
- Standard version provides 4 UARTs and 16 GPIO lines
- See interface configuration matrix showing possible I/O combinations (PDF)

Rear I/O

Four USB 2.0
Up to three 1000Base-T Ethernet
Up to two SATA
Up to 64 I/O lines, FPGA-controlled
- Reduces Ethernet/SATA interfaces
- See interface configuration matrix showing possible I/O combinations (PDF)

FPGA

Standard factory FPGA configuration:
The FPGA offers the possibility to add customized I/O functionality. See FPGA.

Miscellaneous

Real-time clock with GoldCap backup
Temperature sensor, power supervision and watchdog

CompactPCI Bus

Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
System slot
32-bit/32-MHz PCIe-to-PCI bridge
V(I/O): +3.3V (+5V tolerant)

Busless Operation

Board can be supplied with +5V, +3.3V and +12V from backplane, all other voltages are generated on the board
Backplane J1 connector used only for power supply

Electrical Specifications

Supply voltage/power consumption:

+5V (-3%/+5%), 800mA approx.
+3.3V (-3%/+5%), 350mA approx.
±12V (-5%/+5%), 1A approx.

Mechanical Specifications

Dimensions:
- CompactPCI 3U board embedded in MEN-standard 3U-CCA frame
- For use with MEN's conduction cooled subrack, 0701-0054
Front panel: 9HP with cut-out for USB
Weight: 620g

Environmental Specifications

Temperature range (operation):
- -40..+85°C Tcase (CCA frame) (screened)
- 0..+60°C Tcase (CCA frame) (screened, with 16 GB SSD Flash disk)
- Convection cooled variety F50P also available
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300m to + 3,000m
Shock: 15g/11ms
Bump: 10g/16ms
Vibration (sinusoidal): 1g/10..150Hz
Conformal coating on request

MTBF

150,290h @ 40°C according to IEC/TR 62380 (RDF 2000)

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst)

BIOS

MENMON

Software Support

Linux
VxWorks
QNX (on request; support of the FPU is currently not provided by QNX)
INTEGRITY (Green Hills Software) support available. Please contact Green Hills for further information.
OS-9 (on request)
For more information on supported operating system versions and drivers see Software.

Volitelné

CPU

Several PowerQUICC III types with different clock frequencies
MPC8548 or MPC8548E
- 1 GHz, 1.2 GHz, 1.33 GHz or 1.5 GHz
MPC8543 or MPC8543E
- 800 MHz or 1 GHz

Memory

System RAM
- 512 MB, 1 GB or 2 GB
- With or without ECC
Flash Disk
- 2 GB, 4 GB, 8 GB or 16 GB
- Please note that the 16 GB Flash disk component only supports a temperature range of 0..+60°C!
FRAM
- 0 KB or 128 KB
Additional SDRAM
- 0 MB or 32 MB
- With FPGA

I/O

See interface configuration matrix showing possible I/O combinations (PDF)
Ethernet
- Up to three channels at rear
- Only two channels total with MPC8543
SATA
- Up to two channels at rear
Up to 64 user-defined I/O lines
- With optional FPGA
- Reduces number of Ethernet/SATA channels

Cooling concept

Convection cooled variety F50P also available, for up to -40..+85°C

Some of these options may only be available for large volumes.

Please ask our sales staff for more information.

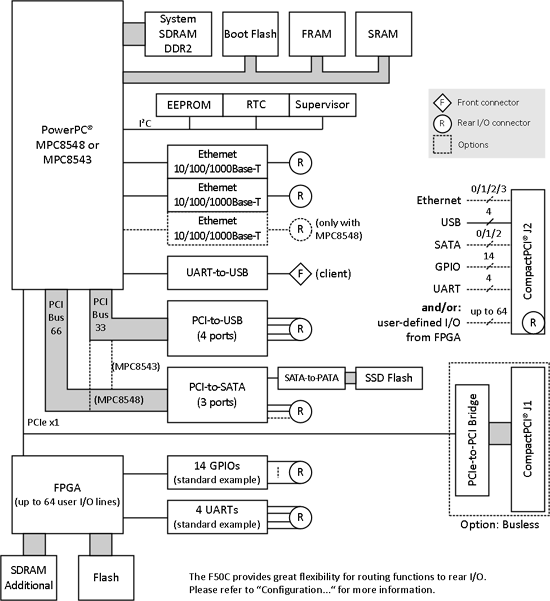

Blokové schéma

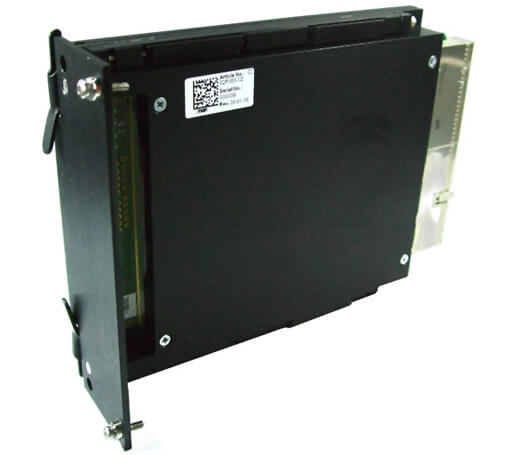

Fotogalerie

Ke stažení

Datasheet MEN F50C
