CB30C - Rugged COM Express Safe Computer with QorIQ

VITA 59 RCE Module MEN CB30C je bezpečný procesorový Rugged COM Express modul založený na NXP/Freescale QorIQ architektůře vyvinutý pro aplikace související s bezpočnostní, které vyžadují splnění normy EN 50129 SIL 2, pro drážní vozidla, nebo kontrolu

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Blokové schéma Specifikace Fotogalerie Ke stažení

Základní informace

NXP QorIQ P1022 CPU
Up to 2 GB DDR3 SDRAM with ECC, soldered
Safe supervisor
Fail-safe and fail-silent board architecture
Event logging
SIL 2 with report from TÜV SÜD (EN 50128, EN 50129)
EN 50155, class TX compliance
-40°C to +85°C Tcase qualified
Conduction cooling
Conformal coating
VITA 59 in process, compliant with COM Express Basic, type 6
PICMG COM.0 COM Express version also available

Blokové schéma

Specifikace

CPU

The following CPU types are available:

Freescale QorIQ P1022, dual core, 600 MHz
Freescale QorIQ P1022, dual core, 800 MHz
Freescale QorIQ P1022, dual core, 1.067 GHz
Freescale QorIQ P1013, single core, 600 MHz
Freescale QorIQ P1013, single core, 800 MHz
Freescale QorIQ P1013, single core, 1.067 GHz

Memory

System Memory
- Soldered DDR3 with ECC support
- 1 GB, or 2 GB
Boot Flash
- 32 MB, 64 MB, or 128 MB

Mass Storage

The following mass storage devices can be assembled:

eMMC device, soldered; different sizes available

Graphics

Optional
Integrated in QorIQ processor
Maximum resolution: 1280 x 1024 pixels
60 Hz refresh rate
24 bpp color depth

Onboard Interfaces

Available via COM Express connectors
Video
- One DVI interface; optional
- One LVDS interface, single-channel; optional
SATA
- Two channels, SATA Revision 2.x (3 Gbit/s)
SDIO/SDHC
- One channel for MMC/SD/SDIO cards; optional
USB
- Four host channels, USB 2.0 (480 Mbit/s), or
- Three host channels, USB 2.0 (480 Mbit/s)
Ethernet
- Two channels, 1000BASE-T (1 Gbit/s), or
- Three channels, 1000BASE-T (1 Gbit/s)
- Link and activity LED signals for each channel
PCI Express
- Three x1 links (250 MB/s per link), PCIe 1.1 (2.5 Gbit/s per lane), or
- Two x1 links (250 MB/s per link), PCIe 1.1 (2.5 Gbit/s per lane)
ExpressCard
- One interface
UART
- Two interfaces, 230.4 kbit/s, or
- Four interfaces, 230.4 kbit/s
- Physical interfaces RS232 or RS422/RS485 depending on implementation on carrier board
I2C
- One I2C interface
SPI
- One SPI interface
GPIO
- 10 GPIO lines
Processor local bus; optional

Event Logging

Event history logged in non-volatile FRAM, e.g., reset, overvoltage, undervoltage, excess temperature
256 entries possible
Events are generated by board hardware or user application

Supervision and Control

Safe supervisor
- Check for overvoltage, undervoltage, excess temperature, CPU clock
- Watchdog, configurable as a window or timeout watchdog
Real-time clock, with supercapacitor or battery backup on the carrier board
- Up to year 2199

Computer-On-Module Standard

CB30C: VITA 59 RCE: Rugged COM Express in process
- With conduction cooling cover and frame
- Rugged COM Express Basic, Module Pin-out Type 6
CB30: PICMG COM.0 COM Express Module Base Specification
- COM Express Basic, Module Pin-out Type 6

Electrical Specifications

Supply voltage
- +12 V (10 to 14 V)
Power consumption
- 15 W max., specified

Mechanical Specifications

Dimensions
- 135 mm x 105 mm x 18 mm (models conforming to VITA 59 RCE Basic format, PCB mounted between a cover and a frame)
- 125 mm x 95 mm (models conforming to PICMG COM.0 COM Express Basic format)
Weight
- 470 g (model 15CB30C00)

Environmental Specifications

Temperature range (operation)
- -40°C to +85°C Tcase (VITA 59 cover/frame) (qualified components), compliant with EN 50155, class Tx (model 15CB30C00)
Temperature range (storage): -50°C to +85°C
Cooling concept
- Conduction-cooled (models conforming to VITA 59 RCE Compact format, PCB mounted between a cover and a frame)
- Air-cooled (models conforming to PICMG COM.0 COM Express Compact format)
Relative humidity (operation): max. 95% non-condensing (EN 50155 / EN 60068-2-30)
Relative humidity (storage): max. 95% non-condensing (EN 50155 / EN 60068-2-30)
Altitude: -300 m to +3000 m
Shock: 50 m/s², 30 ms (EN 50155 (12.2.11) / EN 61373)
Vibration (function): 1 m/s², 5 Hz to 150 Hz (EN 50155 (12.2.11) / EN 61373)
Vibration (lifetime): 7.9 m/s², 5 Hz to 150 Hz (EN 50155 (12.2.11) / EN 61373)
Conformal coating

Reliability

MTBF

tbd. h @ 40°C according to IEC/TR 62380 (RDF 2000) (model 15CB30C00)

Safety

Functional Safety
- Certifiable up to SIL 3 according to IEC 61508 and SIL 2 according to EN 50128 / EN 50129 ("safety case" document and certificate from TÜV SÜD)
- Hazard rate (THR) for safety functions < 10E-8 / h
- Board maintains safe state after a failure
Electrical Safety
- EN 60950-1, class III equipment
Flammability
- UL 94V-0
Fire Protection
- EN 45545

EMC

EMC behavior generally depends on the system and housing surrounding the COM module.
The Rugged COM Express module in its cover and frame supports the system to meet the requirements of
- EN 55024, EN 50121-3-2, class A (immunity)
- EN 55022 (radio disturbance)
- IEC 61000-4-2 (ESD)
- IEC 61000-4-3 (electromagnetic field immunity)
- IEC 61000-4-4 (burst)
- IEC 61000-4-5 (surge)
- IEC 61000-4-6 (conducted disturbances)

Software Support

Linux
VxWorks
INTEGRITY

BIOS

U-Boot Universal Boot Loader

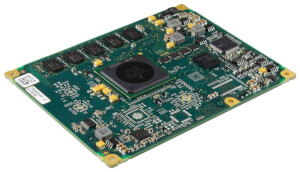

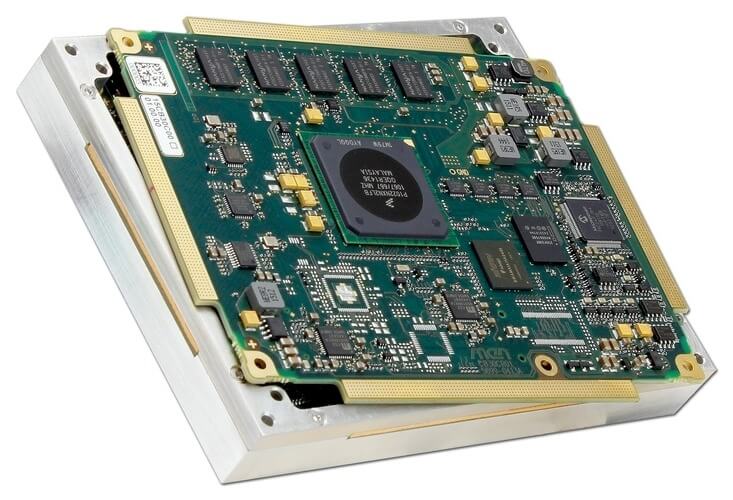

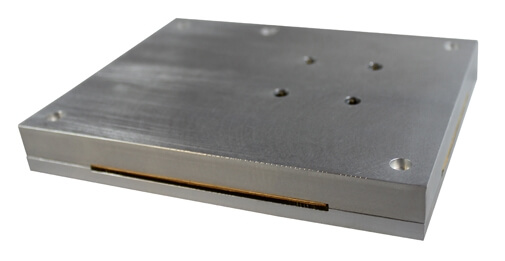

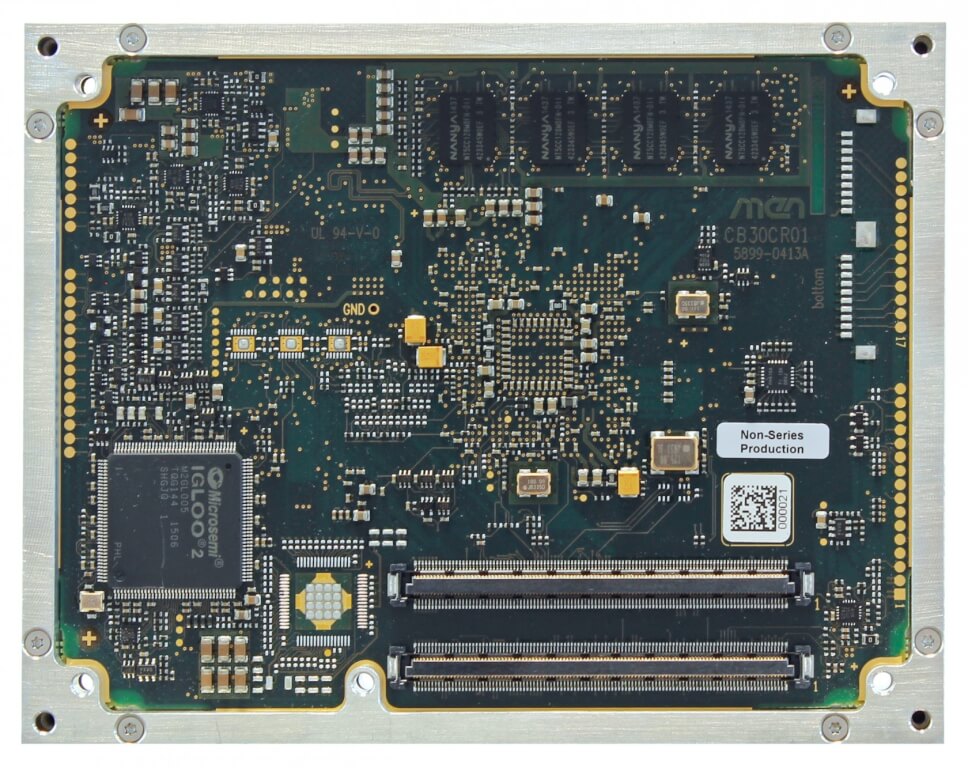

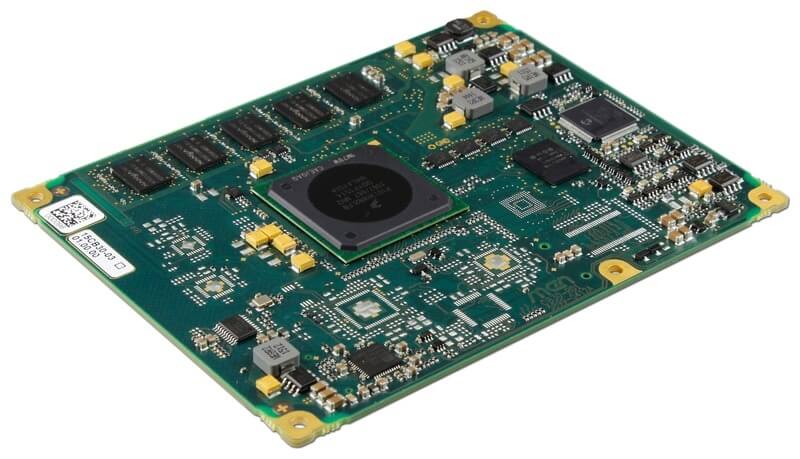

Fotogalerie

Ke stažení

Datasheet MEN CB30C
