BC50I

MEN BC50I - Rugged Box PC for Industrial Applications AMD Embedded G-Series The BC50I is a rugged, fanless, maintenance-free, conduction-cooled industrial box PC based on the AMD Embedded G-Series line of APUs (Accelerated Processing Units) and with W

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Specifikace Fotogalerie Ke stažení

Základní informace

AMD Embedded G-Series Dual-Core APU
2 Gigabit Ethernet
2 USB 2.0
2 DisplayPort outputs, full HD with each display
WLAN, GSM (2G), UMTS (3G), LTE (4G), GPS or GLONASS via 1 PCI Express Mini Card slot
2 Slots for IBIS, GPS, RS232, RS485, RS422
1 CAN Bus interface optional
24 VDC nom. (16 to 36 V)
-40 to +70°C operating temperature, fanless

Specifikace

Technical Data

CPU

AMD Embedded G-Series T48N

Dual-Core
1.4 GHz processor core frequency
1066 MT/s DDR3 Speed
Accelerated Processing Unit (APU), also includes GPU (see Graphics)

Controller Hub

AMD A55E

Memory

64 KB L1 and 512 KB L2 cache
2 GB DDR3 SDRAM system memory
- Soldered

Mass Storage

One SD card slot
- Via USB
One mSATA slot
- SATA Revision 3.x support
- Transfer rates up to 600 MB/s (6 Gbit/s)
Serial ATA (SATA)
- One port for hard-disk/solid-state drive mounted within the unit's housing
- SATA Revision 2.x support
- Transfer rates up to 300 MB/s (3 Gbit/s)

Graphics

AMD Radeon HD 6310
- Dual independent display support
- Dual DisplayPort
- Maximum resolution: 2560x1600
- Embedded in T48N APU
3D Graphics Acceleration
- Full DirectX 11 support, including full speed 32-bit floating point per component operations
- Shader Model 5
- OpenCL 1.1 support
- OpenGL 4.0 support
Motion Video Acceleration
- Dedicated hardware (UVD 3) for H.264, VC-1 and MPEG2 decoding
- HD HQV and SD HQV support: noise removal, detail enhancement, color enhancement, cadence detection, sharpness, and advanced de-interlacing
- Super up-conversion for SD to HD resolutions

Front I/O

2 DisplayPort 1.1a interfaces
- AUX channels and hot plug detection
2 Gigabit Ethernet
- Via RJ45 connectors
2 USB 2.0
- Via Series A connector
2 SA-Adapter slots for serial I/O
- RS232, RS485, RS422, IBIS or GPS possible on both slots
- SGPIO switchable by software on one slot
- CAN bus optional on one slot (on request)
8 LEDs
- 4 for Ethernet link and activity status
- 2 user LEDs
- 1 status LED
- 1 power OK LED

1 PCI Express Mini Card slot

For functions such as
- Mobile service standards: GSM (2G), UMTS (3G), LTE (4G) and derivates
- Wireless communication: WLAN / WiFi IEEE 802.11 and derivates
- Positioning: GPS, GLONASS, GALILEO
- Real-Time Ethernet functionality via Hilscher PCI Express Mini cards
1 SIM card slot
PCI Express and USB interface

Real-Time Clock

Buffered by Gold Cap for 12 h

Electrical Specifications

Supply voltage:
- 24 VDC nom. (16 to 36 V)
Power consumption: up to 35 W (with PCI Express Mini Card)

Mechanical Specifications

Dimensions: approx. 250 mm x 220 mm x 44.1 mm
Weight: 1.8 kg
International Protection Rating: IP20

Environmental Specifications

Temperature range (operation):
- -40°C to 70°C
- Fanless operation
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to +3,000 m
Shock: 50 m/s², 30 ms
Vibration (function): 1 m/s², 5 Hz - 150 Hz
Vibration (lifetime): 7.9 m/s², 5 Hz - 150 Hz
Conformal coating of internal components on request

MTBF

tbd @ 40°C according to IEC/TR 62380 (RDF 2000)

Safety

Flammability
- UL 94V-0
Fire Protection
- EN 45545-2 (Railway)
- ECE-R118 (Automotive)

EMC

Conforming to EN 55022 (radio disturbance)

BIOS

InsydeH2O UEFI Framework

Software Support

Windows 7
Windows Embedded Standard 7
Linux
For more information on supported operating system versions and drivers see Software.

Options

APU

AMD T48N, 1.4 GHz Dual Core, 18W, AMD Radeon HD 6310
AMD T56N, 1.65 GHz Dual Core, 18W, AMD Radeon HD 6320 (on request)
AMD T56E, 1.65 GHz Dual Core, 18W, AMD Radeon HD 6250 (on request)
AMD T48E, 1.4 GHz Dual Core, 18W, AMD Radeon HD 6250 (on request)
AMD T40N, 1.0 GHz Dual Core, 9W, AMD Radeon HD 6290 (on request)
AMD T40E, 1.0 GHz Dual Core, 6.4W, AMD Radeon HD 6250 (on request)
AMD T52R, 1.5 GHz Single Core, 18W, AMD Radeon HD 6310 (on request)
AMD T44R, 1.2 GHz Single Core, 9W, AMD Radeon HD 6250 (on request)
AMD T40R, 1.0 GHz Single Core, 5.5W, AMD Radeon HD 6250 (on request)
AMD T16R, 615 MHz Single Core, 4.5W, AMD Radeon HD 6250 (on request)
AMD T48L, 1.4 GHz Dual Core, 18W (on request)
AMD T30L, 1.4 GHz Single Core, 18W (on request)
AMD T24L, 1000 MHz Single Core, 5W (on request)

Memory

2 GB DDR3 SDRAM system memory
4 GB DDR3 SDRAM system memory (on request)
SATA hard-disk/solid state drive (mounted within housing)

Graphics

Maximum resolution depending on GPU

2560x1600 (all DisplayPort interfaces) with Radeon HD 6310 and 6320
1920x1200 (all DisplayPort interfaces) with Radeon HD 6250 and 6290 (on request)

I/O

Antenna connectors

For functions like Wi-Fi, WIMAX, GSM/GPRS, UMTS, LTE in combination with PCI Express Mini Card
Reverse SMA connector

Miscellaneous

Real-time clock

12 h buffer time
72 h buffer time (on request)

Environmental Specifications

Temperature range (operation):

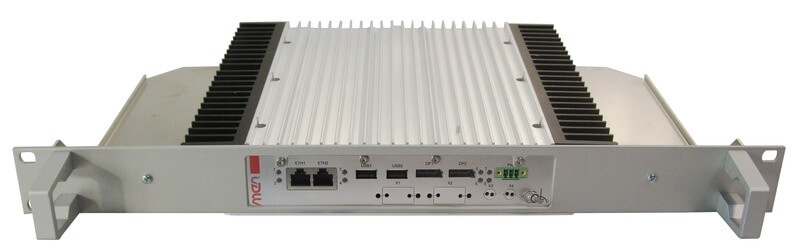

-40°C to 85°C (screened) with wider housing with additional cooling fins

Other Options

The product concept is very flexible, there are many other configuration possibilities.
Please contact our sales team if you do not find your required function in the options.
Some of these options may only be available for large volumes.

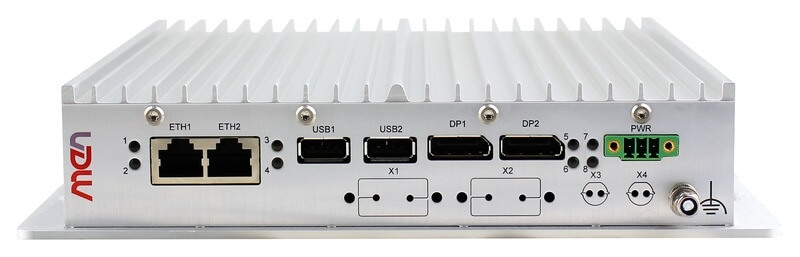

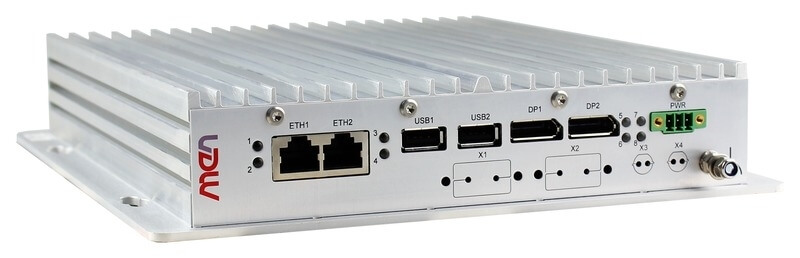

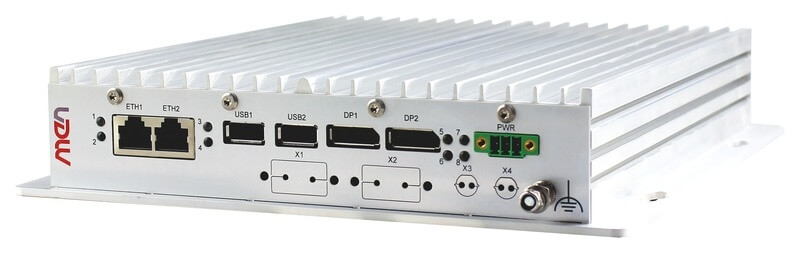

Fotogalerie

Ke stažení

Datasheet MEN BC50I
