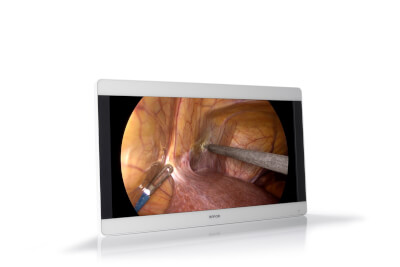

MDSC-8231
4K UHD surgical display
Základní informace
- Perfect match for 4K endoscopy cameras
- Shows images with astonishing detail
- Medical-grade and smart design
- Works with Nexxis for video-over-IP integration
Barco’s MDSC-8231 is a 31-inch, near-patient, high-brightness surgical display that is purpose-built for 4K imaging in the digital operating room and interventional radiology control room. It offers an easy-to-clean design, light and smart mechanics, and the most life-like images today.
Ease of mind
Flawless 4K imaging
The perfect match for 4K endoscopy camera systems, the MDSC-8231 presents endoscopic images with a resolution four times that of HD. This provides surgeons with more detail-rich, color-correct images for a real-life presentation of the patient's anatomy and excellent depth perception. Images are presented with unrivaled color accuracy (thanks to the wide color gamut and advanced color calibration), without artifacts, and with near-zero latency for optimal hand-eye coordination. The 31-inch display size makes the MDSC-8231 ideal for use in the interventional radiology control room as well.
Multi-source, multi-display imaging
With its broad input connectivity and wide set of image control features, the MDSC-8231 offers flexible multi-modality imaging in new integrated operating rooms. The 31-inch display also offers integrated functionality (optional) for use with Barco’s Nexxis for video-over-IP solutions.
Safety, stability and redundancy
Thanks to its high-bright LED backlight with light output stabilization, the display ensures a long lifetime and image consistency. The unique, automated failover feature guarantees a backup signal at all times to ensure safe surgery.
Ease of installation
The MDSC-8231 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms.
Ease of use
Barco’s MDSC-8231 allows for easy cleaning and disinfection thanks to its smooth surface and splash-proof housing (front protection level IP45). It comes with a highly durable, scratch-resistant front glass featuring excellent optical performance. The fanless design prevents the spread of contaminants.
Specifikace
| Screen technology | TFT AM LCD / IPS-PRO technology / LED backlight |
| Active screen size (diagonal) | 789 mm (31.1") |
| Active screen size (H x V) | 698 x 368 mm |
| Aspect ratio | 17:09 |
| Resolution | 4K-2K (4096 x 2160) |
| Pixel pitch | 0.1704 mm |
| Color support | 1073 million (10-bit) |
| Color gamut | Native: 96% DCI-P3 |
| Viewing angle | 178° Hor / 178° Ver |
| Maximum luminance | Max 550 cd/m² (typ.) |
| @6500K: 450 cd/m2 stabilized (typ.) | |
| Contrast ratio | 1400:1 (typ.) |
| Response time | T on + T off (=rise + fall): 20 ms (typ.) |
| White point | Calibrated: 5600K, 6500K, 7600K, 9300K |
| Gamma curve | Native, 1.8, Video 2.2, 2.4, DICOM |
| Front protection screen | Scratch-resistant 2-side AR alkali-aluminosilicate glass |
| Keyboard | Capacitive 7-key touch keyboard |
| Video inputs | MDSC-8231 LED |
| 4K-UHD input selectable among: | |
| 1x DP 1.1 up to 4096 x 2160 @30Hz | |
| 2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz | |
| 1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz | |
| FHD input (upscaled to UHD): | |
| 1x DVI | |
| 1x 3G-SDI | |
| MDSC-8231 MNA | |
| 4K-UHD input selectable among: | |
| 1x DP 1.1 up to 4096 x 2160 @30Hz | |
| 2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz genlocked | |
| 1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz | |
| 2x Fiber Optic SFP+ for 4K-UHD Nexxis link | |
| FHD input (upscaled to 4K) | |
| 1x DVI | |
| 1x 3G-SDI | |
| Video outputs | 1x 3GSDI (3GSDI input loop through) |
| 1x DVI (screen clone downscaled to FHD) | |
| Video formats | -Display Port 1.2 MST (10 bit) up to 4096x2160 @60Hz (displayed at native resolution) |
| -Dual stream DP 1.1 (10-bit) up to 2048x2160 x2 @60Hz synchronized | |
| -3G-SDI (10-bit), in compliance with: SMPTE 425M (Level A), SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 | |
| -DVI (8bit) up to 1920x1080 @60Hz | |
| Multi-image support | Picture-in Picture, Image Mirror and Rotation, Failover mode, Screen clone on DVI out, FHD input upscaled to UHD, Quadview (through Nexxis) |
| Remote control | MDSC-8231 LED: microUSB port for FW download & control protocol |
| MDSC-8231 MNA: FW download through network connection | |
| Power consumption (nominal) | MDSC-8231 LED: 110W / 24V ± 10% |
| MDSC-8231 MNA: 140W / 24V ± 10% | |
| External power supply | AC input: 100 – 250 VAC / 47-63 Hz auto-switch |
| DC output: +24 VDC / 10 A | |
| Dimensions w/o stand (W x H x D) | 777 x 472 x 93 mm / 30.6 x 18.6 x 3.6 in |
| Net weight w/o stand | 12.1 Kg / 26.6 lbs (MDSC-8232 LED) |
| 12.7 Kg / 28.0 lbs (MDSC-8232 MNA) | |
| Net weight packaged | 17 Kg / 37.5 lbs(MDSC-8231 LED) |
| 17.5 Kg / 38.6 lbs(MDSC-8231 MNA) | |
| Mounting standard | 100x100 & 200x100 mm VESA |
| Temperature | Operating: 0° - 35° C |
| Storage: -20° - 50° C | |
| Humidity | Operating: 10% – 85% R.H. |
| Storage: 5% – 85% R.H. | |
| Regulation Compliance | • ANSI/AAMI ES 60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012 - Part 1 |
| • CAN/CSA-C22.2 No. 60601-1: 14 Part 1 | |
| • IEC 60601-1: 2012 Edition 3.1 Part 1 | |
| • EN 60601-1: 2006 + A1:2013 Part 1 | |
| • Electromagnetic Compatibility: EMC Medical EMC Standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class B | |
| • Approvals/Marking: CE, c-UL-us, DEMKO | |
| Certifications | IP20 (IP45 front side only) |
| Warranty | 3 years |
| Green compliance | ROHS-2, REACH, WEEE |
