MDSC-2242
42" full HD velkoplošný chirurgický displej
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Barco's MDSC-2242 features:
- 42” wide-screen LCD
- Full HD resolution
- Wide viewing angle
- High-bright LED backlight
- Advanced, full 10-bit, image processing algorithms for artifact-free video reproduction
- Widest range of SD and HD input signals, including 3G-SDI and DisplayPort
- Calibrated for perfect color and grayscale reproduction (ITU 709 and DICOM standards)
- Easy cleaning thanks to full size protection screen

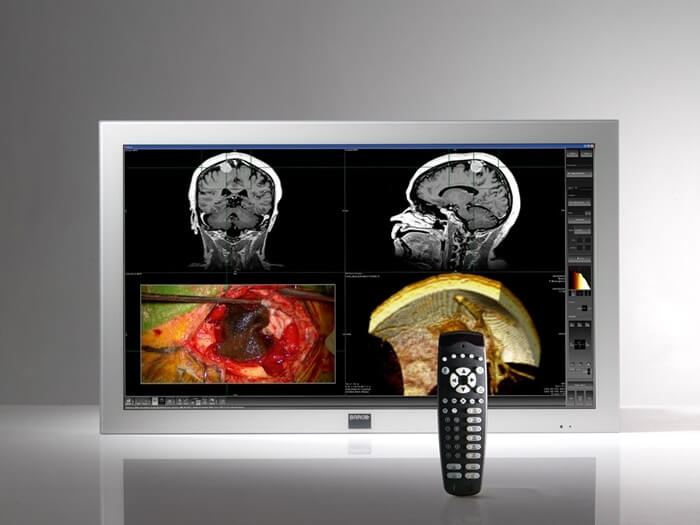

- Remote control over RS232 and infrared RC handset

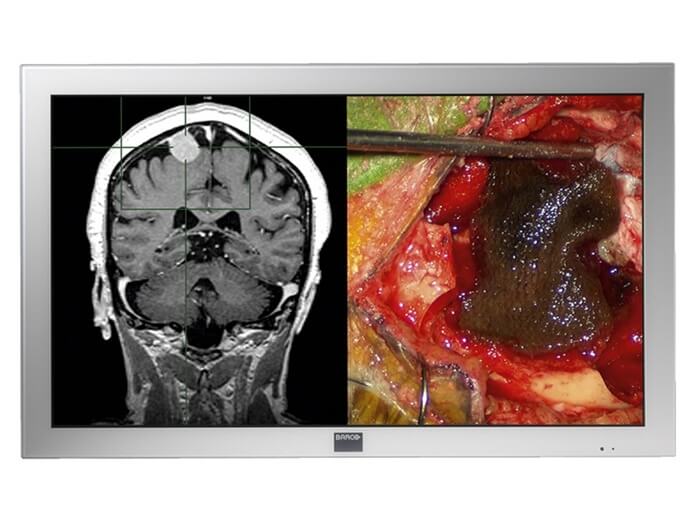

Barco's MDSC-2242 is a 42-inch large-screen surgical display with LED backlight, featuring full HD resolution. Purpose-built for the operating room, the MDSC-2242 can visualize a wide range of analog and digital video sources, including HD endoscopic video, room and boom camera video, patient and surgery information, radiology and pathology images, with ultimate detail.
Color-calibrated, artifact-free images
Thanks to its high brightness, high contrast and high resolution, the MDSC-2242 presents surgeons with accurate, realistic images and excellent depth perception. It also offers the fastest, lag-free transmission of surgical images and the highest image quality available today.
Our next-generation motion adaptive de-interlacing and noise reduction algorithms, using full 10-bit image processing and a 12-bit look-up table, make the MDSC-2242 ideal for consulting PACS images in the OR.
Multi-source, multi-display imaging over IP
With its broad input connectivity, the MDSC-2242 offers the highest flexibility for multi-modality imaging (PiP & PaP), enabling reproduction of images from multiple sources and to multiple displays in the integrated operating room.
The 42-inch display is one of Barco's network-enabled surgical displays and offers integrated functionality (optional) for use with Nexxis digital OR, ensuring smooth distribution of uncompressed video and data over the IP network without delay.
Designed for use in the operating room
Barco's MDSC-2242 allows easy cleaning and disinfection thanks to its anti-reflective protective front glass.
The fan-less design avoids the spread of contaminants in the operating room.
Specifikace
| Screen technology | TFT AM LCD with LED backlight |
| Active screen size (diagonal) | 1067 mm (42") |
| Active screen size (H x V) | 930 x 523 mm (36.6” x 20.6") |
| Aspect ratio | 16:09 |
| Resolution | 2MP (1920 x 1080) |
| Pixel pitch | 0.4845 mm |
| Color imaging | Yes |
| Color support | 1073 million (10-bit) |
| Color gamut | 72% NTSC |
| Viewing angle | 178° Hor / 178° Ver |
| Maximum luminance | 500 cd/m² (typical) |
| Contrast ratio | 4000:1 (typical) |
| Response time | 8 msec (GtG - typ) |
| Dot clock | (max) 165 Mhz |
| Gamma curve | Native, 1.8, 2.0, 2.2, 2.4, X-ray |
| Housing color | White RAL 9003 |
| Video inputs | Video input signals: |
| -DVI-I Single-Link (Digital & Analog – HDMI video support with HDCP) | |
| -Component Video RGBS / YPbPr (4xBNC) | |
| -S-video (4-pin Mini DIN) | |
| -Composite video (1xBNC) | |
| -3G-SDI (1xBNC) | |
| -DisplayPort (VESA std 1.1a) | |
| -Optional: integrated Nexxis network adapter | |
| Video input formats: | |
| -VGA & DVI: Up to 1920x1200 at 60Hz (reduced blanking) | |
| Maximum pixel clock: 165MHz | |
| Maximum Hor freq: 90kHz | |
| Maximum Ver freq: 75Hz | |
| -Standard PAL and NTSC for S-Video, Composite and Component | |
| -Component YPbPr/ RGBS: HDTV - up to 1080i & 1080p | |
| -SDI Format Supported: 625/25 PAL, 525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60, 1080p50, 1080p59.94, 1080p60 | |
| -SDI Compliance: SMPTE 425M (Level A), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 | |
| -Displayport 1.1a: up to 1920 x 1200 60Hz | |
| Video outputs | DVI-D |
| S-video (4-pin Mini DIN) | |
| Composite video (1xBNC) | |
| 3G-SDI (1xBNC) | |
| Visualization modes | Picture-in-Picture, Picture-by-Picture, Zoom |
| Display controls | OSD menu / Infrared remote control / serial RS-232 interface (D-sub 9-pin) |
| Power requirements (nominal) | Power source (integrated power supply): 100 – 250 VAC / 47-63 Hz auto-switch |
| Power supply for external module: +5VDC ±10% @500mA (max) through the DVI connectors DVI-in & DVI-out | |
| Power consumption (nominal) | less than 150 W |
| OSD languages | English, French, German, Spanish, Italian |
| Dimensions w/o stand (W x H x D) | 1021 x 615 x 90 mm ( 40.2” x 24.2” x 3.5”) |
| Net weight w/o stand | 24 kg (52.9 lbs) |
| Net weight packaged w/o stand | 30 kg (66.1 lbs) |
| Mounting standard | VESA 600 and 200 |
| Screen protection | IP21 / Front face: IPx5 |
| Protective, non-reflective tempered glass | |
| Recommended modalities | Endoscopy, Laparoscopy, X-ray, CT, MR, US |
| Regulation Compliance | IEC60601 3rd Edition |
| Approvals/Marking: CE, C-UL-US, DEMKO | |
| Safety (Medical equipment): IEC60601-1, UL60601-1, CSA-C22.2 nr 601-1-M90 | |
| Electromagnetic Compatibility: EMC Medical EMC Standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class A | |
| Environment: ROHS-2, REACH, WEEE compliant | |
| Temperature | Operating: 0° - 40° C / Storage: -20° - 60° C |
| Humidity | Operating: 10% – 90% R.H. / Storage: 5% – 90% R.H. |
| Keyboard/mouse | 7-key membrane, side-right |
| Supplied accessories | User Manual, Infrared Remote Control, DVI Dual-Link cable 3.0m, Mains cables (EU (CEBEC/KEMA) & US (Hospital grade UL)) |
| Optional accessories | wall mount |
| Warranty | 3 years |
