MDRC-1219

19" clinical display for hospital-wide viewing of clinical data and images

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Fit for clinical use
  • Automated Quality Assurance and calibration
  • Front consistency sensor technology
  • Touchscreen fit for clinical use optionaly

The Barco MDRC-1219 brings reliable, DICOM compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance. A touchscreen version is also available.

Consistent images, easy collaboration

The high-quality display presents sharp, bright images with high contrast. The unique front consistency sensor automatically aligns the image quality every time the display is switched on, ensuring fast power-up and continuous luminance stability.

Result? Consistent images that make collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.

Quality assured, automatically

The MDRC-1219 comes with Barco’s cloud-based MediCal QAWeb software, an online service for calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Fit for clinical use

The unique 5:4 aspect ratio is ideal for viewing all types of applications and images from medical modalities. Like every Barco clinical display, the MDRC-1219 complies with international medical and patient safety standards.

Specifikace

Screen technology IPS-TFT Color LCD
Active screen size (diagonal) 482 mm (19.0")
Active screen size (H x V) 376 x 301 mm (14.81 x 11.85")
Aspect ratio (H:V) 5:4
Resolution 1MP (1280 x 1024 pixels)
Pixel pitch 0.294 mm
Color imaging Yes
Gray imaging Yes
Bit depth 8 bit (DVI)
  10 bit (DisplayPort)
Viewing angle (H, V) 178°
Ambient light presets Yes, reading room selection
Front sensor Yes, Front Consistency Sensor
Maximum luminance (panel typical) 330 cd/m²
DICOM calibrated luminance 250 cd/m²
Contrast ratio (panel typical) 1000:1
Response time (Tr + Tf) (typical) 30 ms
Housing color Black
Video input signals DVI (DVI-D and DVI-A)
  DisplayPort
USB ports 1x USB 2.0 upstream (endpoint)
  2x USB 2.0 downstream
Power requirements Internal power supply (100-240 Vac, 50-60 Hz)
Power consumption 22 W (nominal)
  < 0.5 W (standby)
OSD languages English, German, French, Dutch, Spanish, Italian, Portuguese (Brazil), Chinese (Simplified), Japanese, Korean, Arabic

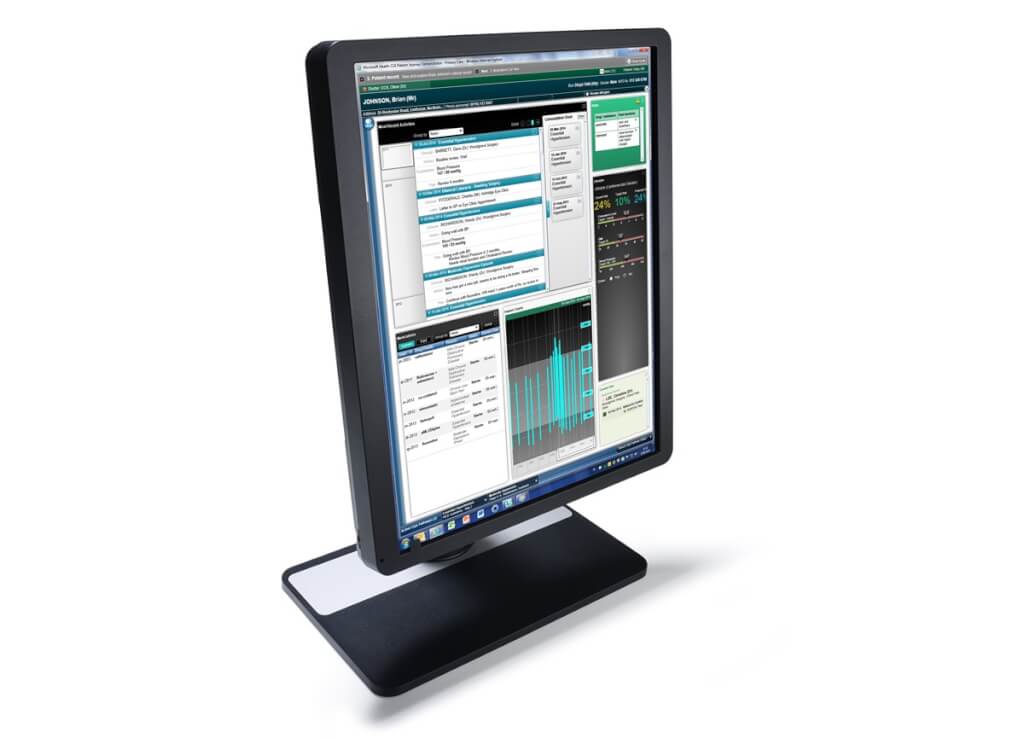

Dimensions with stand (W x H x D) Portrait: 348 x 440~550 x 201 mm
  Landscape: 411 x 408~518 x 201 mm
Dimensions w/o stand (W x H x D) 411 x 348 x 67 mm
Dimensions packaged (W x H x D) 426 x 592 x 326 mm
Net weight with stand 5.3 kg
Net weight w/o stand 3.1 kg
Net weight packaged 8.1 kg
Tilt -5° to +22°
Swivel N/A
Pivot 90°
Height adjustment range 110 mm
Mounting standard VESA (100 mm)
Screen protection N/A
Recommended modalities Reviewing of digital images
Certifications CE 2014/30/EU
  EN 60601-1:2006 +A11:2011 +A1:2013 +A12:2014
  IEC 60601-1 (ed. 3);am1
  ANSI/AAMI ES60601-1: 2005/(R)2012
  CSA CAN/CSA-C22.2 No. 60601-1:14
  IEC 60529:1991 + A1: 2000 (Degrees of protection IP code)
  IEC 60601-1-2: 2014
  FCC class B
  ICES-001 Level B
  CCC- GB9254-2008 + GB4943.1-2011 + GB17625.1-2012
  VCCI
  KC
Supplied accessories User guide
  System disc
  DisplayPort video cable (2m)
  Mains cables
  USB cable (2m)
Optional accessories N/A
QA software MediCal QAWeb
Warranty 3 years
Operating temperature 0 °C to +35 °C
Storage temperature -20 °C to +60 °C
Operating humidity 20% to 80% (non-condensing)
Storage humidity 10% to 90% (non-condensing)
Operating pressure 70 kPa minimum
Storage pressure 50 to 106 kPa
