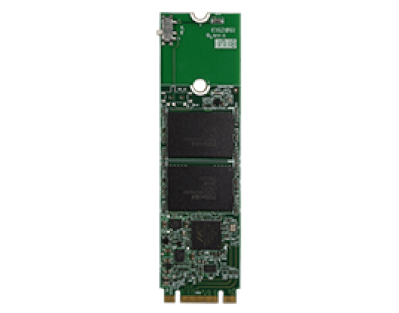

M.2 (S80) 3SE4
SATA III soultion for industrial field
Základní informace
- SATA III soultion for industrial field
- Exclusive L³ architecture
- Designed with hardware LDPC ECC engine
- Compatible with M.2 2280-S2-B-M standard
- DRAM-less, 100% data integrity
- Excellent random performance
- Supports TRIM/NCQ/SMART
- Built in iData Guard
Innodisk M.2 (S80) 3SE4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a realtime wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk M.2 (S80) 3SE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
Specifikace
| Model Name | M.2 (S80) 3SE4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Capacity | 8GB~64GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 520/360 |
| Max. Power Consumption | 1.6W (3.3V x 500 mA) |
| Thermal Sensor | Y |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 22.0 x 80.0 x 2.2 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
