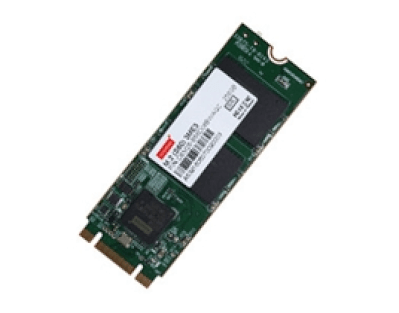

M.2 (S60) 3ME3
SATA 6Gb/s interface
Základní informace
- SATA 6Gb/s interface
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Zero mechanical interference
- Anti-vibration mechanical design
Innodisk M.2 (S60) 3ME3 is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S60) 3ME3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.
Innodisk M.2 (S60) 3ME3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
Specifikace
| Model Name | M.2 (S60) 3ME3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Capacity | 32GB~512GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 380/200 |
| Max. Power Consumption | 1.3W (3.3V x 370 mA ) |
| Thermal Sensor | Wide Temp. only |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 22.0 x 60.0 x 3.5 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
