VH2.4

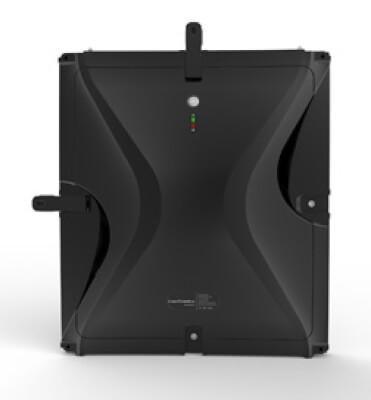

LED displej Rozteč pixelů: 2.4 mm Rozměr panelu: 476×535 mm
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Pixel pitch: 2.4 mm
Pixel configuration: SMD
Brightness: 600-800 adjustable
Refresh rate: 1920/3840
Panel dimension: 476×535×78 mm
Klíčové prvky
Concise Design
No cable or wire is exposed at exterior,which makes the back of LED screen neat and tidy.
Low Cost of Splicing
With a perfect panel ratio of 8:9, LianTronics HD LED display could be easily spliced in consistent with frequently-used video proportion of 4:3 or 16:9, which could greatly reduce the splicing cost under the dual conditions of prescribed signal source and certain scene.
V-Smooth Technology
LianTronics is the first to own CNC machine lines and workshop in the industry around China. Therefore, each panel could be guaranteed to adopt qualified mold processing to reduce the error in an infinite approach to zero.
Perfect Display Effect
160°super wide horizontal and vertical viewing angle covers more potential customers. The broadcasting pictures are stable with no scanning line, and the edge of image is sharp and clear when dealing with dynamic pictures.
Stable Operation
V-stable power supply technology and N+1 backup mode could guarantee no blackout during use.
Safe Operation
With hot double backup for Signal, stable broadcasting would be guaranteed when failure happens. Anti-hacking Encryption could avoid malicious signal cut-off and input.
Specifikace
| Item | Value |
| Pixel Configuration | SMD LED |
| Pixel Pitch（inch） | 0.098 |
| Pixel Pitch(mm) | 2.4 |
| Pixel Density(pixels/㎡) | 162591 |
| Panel Size（inch） | 18.7 (W)×21.1 (H)×3.1(D) |
| Panel Size (mm) | 476 (W)×535 (H)×78(D) |
| Panel Resolution（W×H） | 192×216 |
| Panel Material | Die - casting aluminum |
| Weight（kg/pcs） | 9 |
| White balance brightness(nits) | 600-800 adjustable |
| Max. Power Consumption（W/㎡） | 700 |
| Avg. Power Consumption（W/㎡） | 230 |
| Serviceability | Front/Rear |
| Horizontal/Vertical Viewing Angle（deg.） | 160(H)/160(V) |
| Refresh Rate（Hz） | 1920/3840 |
| Gray Level（Bit） | 12/14/16 |
| Contrast Ratio | 3000:01:00 |
| Color Temperature（K） | 2000≤ TC≤ 9300 adjustable |
| Brightness Adjustment | Programmable/auto/manual |
| Color Calibration | Brightness and chroma calibration |
| Others | Communication - level power supply(customization), hot double backup, temperature and humidity test, multi - signal input support, etc. |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LianTronics | |
