M7

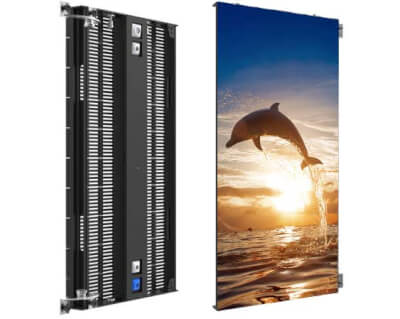

Venkovní rental LED displej
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 7,8 mm
Rozměry panelu: 500 x 1 000
Svítivost (nits): 4 500
Hmotnost: 12,5 kg
Specifikace
| Item | Value |
|---|---|
| Pixel Pitch(mm) |
7.8
|
| Pixel Density(pixels/㎡) |
16384
|
| Pixel Configuration |
SMD 3 in 1
|
| Brightness(nits) |
≥4500
|
| Viewing Angle(Deg.) |
140(H)/140(V)
|
| Transparent Rate |
10%
|
| Grey Level(bit) |
16
|
| Refresh Rate(Hz) |
＞1920
|
| Module Dimension(mm) |
500(W)×125(H)
|
| Module Dimension(inch) |
19.68(W)×4.92(H)
|
| Module Resolution(pixels) |
64×16
|
| Panel Dimension(mm) |
500(W)×1000(H)×90(D)
|
| Panel Dimension(inch) |
19.68(W)×39.37(H)×3.54(D)
|
| Panel Resolution(pixels) |
64×128
|
| Panel Materia |
Aluminum Profile
|
| Panel Weight(kg) |
12.5
|
| Max.Hanging Panel Quantity(Vertical) |
10
|
| Voltage(V) |
AC 110~AC 220
|
| Avg. Power Consumption(W/㎡) | 240 |
| Max. Power Consumption(W/㎡) |
720
|
| Serviceability |
Rear
|
| Protection Grade(Front/Rear) |
IP65/IP54
|
| Operating Temp /Humidity (%RH) |
-20~+50/10~90
|
| Storage Temp /Humidity (%RH) |
-40~+85/10~95
|
| Lifetime (H) |
≥50000(Normal Temp)
|
| Compliant Standard |
CE,RoHS,FCC
|
