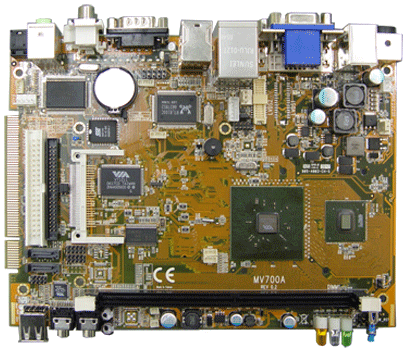

MV700A

Specifications:
. CPU type:
   VIA V4 Eden / ULV or C7 Nano-BGA2 400 pin L1 128 KB,
   L2 128 KB on die
. Front Side Bus:
   400 / 533 MHz
. MB Chipset:
   VIA CX700M
. Graphics:
   Integrated with VIA CX700M.
   Shared system memory up to 128 MB
. LVDS / DVI:
   1. LVDS + DVI : Data format of 18/24 bits single-channel panel &
   one single-channel DVI panel or
   2. Only DVI : One single channel DVI panel
. Memory:
   1 x DDRII SDRAM (max. 1GB)
. IDE:
   Ultra DMA-133 / 100 / 66. 1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm.
   CF Card Type II for ATA interface
. SATA:
   2 x SATA ports
. Audio:
   Intel HD Audio. Supports SPDIF-Out
. LAN:
   1 x Realtek 10 / 100 Mbps (optional Realtek / Intel Gigabit)
   Intel 82541PI or Realtek RLT8100C / RLT8110SC LAN Chip
. IO function:
   1 x RS232. Supports Infrared SIR & FIR
. USB:
   5 x USB 2.0 (2 ~ 3 external + 2 ~ 4 internal)
. Video-In:
   1 Conexant CX25878 chip for 1 port video-in
. Audio Amplifier (option):
   6-W / CH Into an 8-Ω Load from a 12-V Supply Up to
   92% Efficient,
   Class-D operation Differential Input minimizes
   Common-Mode noise
. CRT / HDTV:
   Supports all NTSC & PAL formats. Supports HDTV & SDTV.
   Supports CRT resolution : 1920 x 1440 &
   TV resolution : 1920 x 1080i
   Provides S-Video & SCART (no support for RGB signal)(option)
. Touch Screen (option):
   USB interface Touch screen controller
   Supported 4-, 5-, 8- wire Analog Resistive Touch screen.
   USB 1.1 full speed sample rate maximum of 300 point / sec
. DIO & WDT (option):
   Hardware digital Input & Output, 8xDI / 8xDO
   Hardware Watch Dog Timer, 0~255 sec programmable
. Expand interface:
   1 x Mini PCI socket. 1 x PCI gold finger
. Power:
   On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system
. Dimension:
   200 x 150 mm
. Operation Temp.:
   0 ~ 60°C
. Operation Humidity:
   5~95% @ 60°C, non-condensing

Testing environment:
Model name :
MV700A-1R10C
CPU :
VIA Eden ULV 1 Ghz
Chipset :
VIA CX700M
OS :
WIN XP
Testing Program :
3D Mark 2001 SE


Model name :
MV700A-1R15C
CPU :
VIA C7 1.5Ghz
Chipset :
VIA CX700M
OS :
WIN XP
Testing Program :
3D Mark 2001 SE
