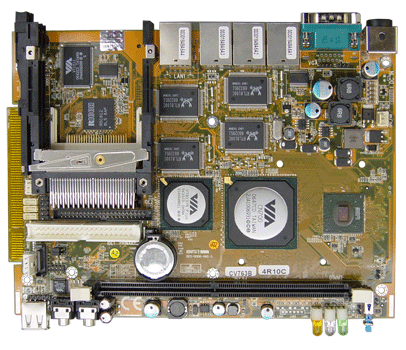

CV763B
VIA V4 Bus Eden / C7 Features: VIA Eden C7 , 4 LAN , 2 PCMCIA , SATA
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
| Specifications: . CPU type: VIA V4 Eden / ULV or C7 Nano-BGA2 400 pin L1 128 KB, L2 128 KB on die . Front Side Bus: 400/533 MHz . MB Chipset: VIA CN700 + VT8237R Plus . Graphics: Integrated with VIA CN700 Shared system memory up to 64MB . Memory: 1 x DDR II SDRAM (max. 1GB) . IDE: Ultra DMA-133 / 100 / 66, 1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm CF Card Type II for ATA interface . SATA: 1 x SATA port . Audio: AC-Link for Audio CODEC, AC’97 2.1 . LAN: 4 x Realtek 10/100 Mbps (optional Realtek/Intel Gigabit) Intel 82541PI or Realtek RLT8100C/RLT8110SC LAN Chip . IO function: 1 x RS232 IrDA 1.0 / ASKIR protocol PS/2 keyboard & mouse . USB: 8 x USB 2.0 (3 external + 5 internal) . PCMCIA: 2 x sockets for Cardbus ( Card-32 ) & 16-bit Card . TV-Out (Option): Supports all NTSC & PAL formats. Resolution : 1024 x 768 . DIO/WDT (Option): Hardware digital Input & Output, 4xDI / 4xDO Hardware Watch Dog Timer, 0~255 sec programmable . Expand interface: 1 x Mini PCI socket, 1 x PCI gold finger . Power: On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system . Dimension: 200 x 150 mm . Operation Temp: 0 ~ 60°C . Operation Humidity: 5~95% @ 60°C, non-condensing |
