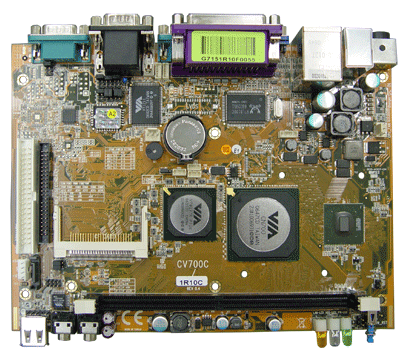

CV700C

Specifications:
. CPU type:
   VIA V4 Eden / ULV or C7 Nano-BGA2 400 pin L1 128 KB,
   L2 128 KB on die
. Front Side Bus:
   400/533 MHz
. MB Chipset:
   VIA CN700 + VT8237R Plus
. Graphics:
   Integrated with VIA CN700
   Shared system memory up to 64MB
. Memory:
   1 x DDR II SDRAM (max. 1GB)
. IDE:
   Ultra DMA-133 / 100 / 66
   1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm
   CF Card Type II for ATA interface
. SATA:
   1 x SATA port
. Audio:
   AC-Link for Audio CODEC, AC’97 2.1
. LAN:
   1 x Realtek 10 / 100 Mbps (optional Realtek / Intel Gigabit)
   Intel 82541PI or Realtek RLT8100C/RLT8110SC LAN Chip
. IO function:
   4 ~ 6 x RS232 + 1 x RS232 / 422 / 485
   3 x RX / RTS / TX for RS232 signal level In/out
   IrDA 1.0 / ASKIR protocol
   PS/2 keyboard & mouse
. USB:
   7 x USB 2.0 (3 external + 4 internal)
. TV-OUT (Option):
   Supports all NTSC & PAL formats. Resolution : 1024 x 768
. Expand interface:
   1 x Mini PCI socket
. Power:
   On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system
. Dimension:
   200 x 150 mm
. Operation Temp.:
   0 ~ 60°C
. Operation Humidity:
   5~95% @ 60°C, non-condensing

Testing environment:
Model name :
CV700C1R10C
CPU :
VIA Eden ULV 1 GHz
Chipset :
VIA CN700 & VIA VT8237R PLUS
OS :
WIN XP
Testing Program :
3D Mark 2001 SE
