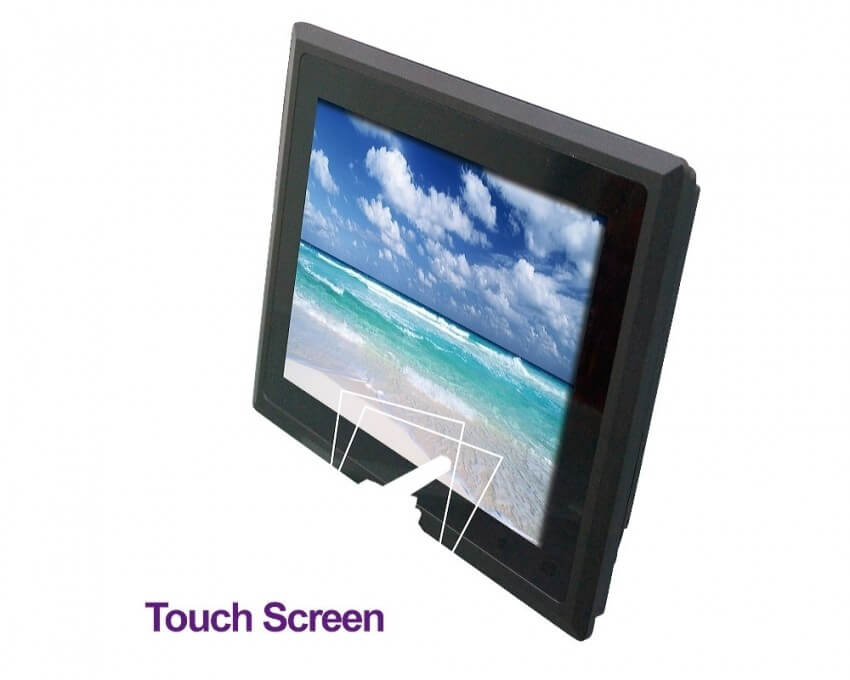

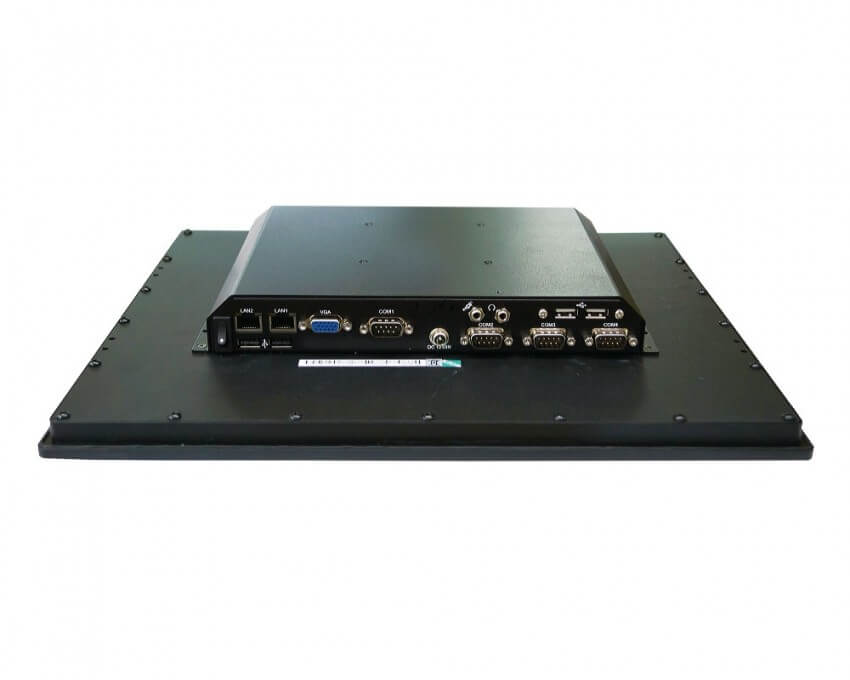

15.1" STAR Bezel-Free Fanless Panel PC

Fanless, Touch Screen, IP65 Front Panel Water Proof,LED Backlight panel Application: Information Kiosk, POS, Mobile solution, Automation Control

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Dostupné v konfiguraci s následujícími singleboardy:
CPU Type M/B Model VGA COM LAN USB Audio Other Function Operation Temp
mSATA HDD
Intel® Bay-Trail
E3815 / E3845
2I385CW
1 4 2 4 Yes 2 x mini Card
DC IN +9~36V
60°C 50°C

Optional Functions
3G / 4G Wi-Fi Bluetooth High Brightness Panel GPS Rechargeable Battery Video-IN

Specifikace

Panel PC Information
LCD Panel AUO
Resolution XGA 1024 x 768
Luminance (cd/m2) 450
Contrast Ratio 800:1
Backlight LED
Number of Colors 262144
Touch Screen Resistive Touch screen
Mounting Spec. VESA 75
Panel frame water proof IP65
Accessory (Option) Wall Mount Kit / Stand

Bezel Free Panel PC
Dimension 385.5W x 55.9H x 317.5D mm
Chassis Material Aluminum
Weight 4.89kg (Incl. M/B)
Storage Space 1 x 2.5" HDD
Operation Hymidity 5 ~ 90% @ 39 °C, non-condensing
