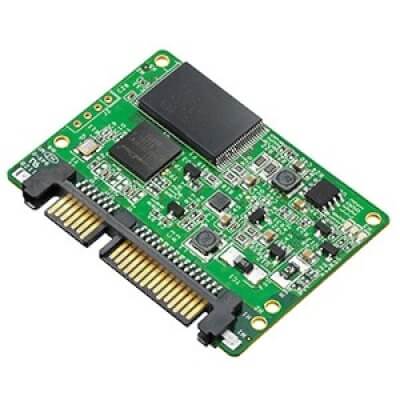

SATA Slim D150Q
The SATA Slim D150Q offers high performance and high capacity in a tiny form factor. With smaller dimensions, it is the best alternate solution for replacing 2.5” SSDs in embedded systems that have mechanical and space challenges. Compliant with JEDEC MO-
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•S.M.A.R.T / iSMART disk health monitoring tool
•Excellent data transfer speed
•Built-in BCH error correction code
•Bad block management
Benefits:
The Innodisk SATA Slim D150Q provides manufacturers with a great replacement choice for hard disk drives (HDDs).
•Reduces operation system boot time
•Consumes less power than HDD
•No additional drivers are required
•Can be configured as a boot device or data storage device
Specifikace
| Model Name | SATA Slim D150Q |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | SLC |
| Connector | 7pin+15pin |
| Capacity | 2GB~128GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 130/120 |
| Max. Power consumption | 1W(5V x 200mA) |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Conformal Coating | N |
| Dimension (WxLxH/mm) | 54.0 x 39.8 x 4.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Industrial Grade. OP: -40°C ~ +85°C
|
