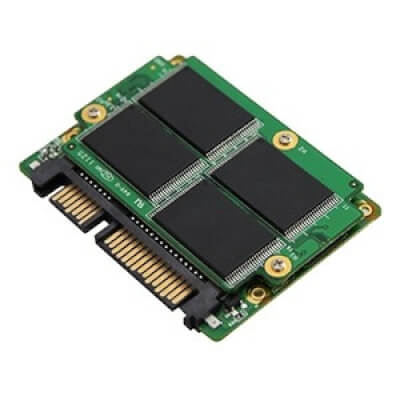

SATA Slim 2SR
The SATA Slim 2SR offers high performance and high capacity in a tiny form factor. It comes with several data security functions, including SEraser, QEraser, Destroy, and Write Protect. Compliant with JEDEC MO-297 standards and operating under SATA II (
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Benefits:
The Innodisk’s SATA Slim 2SR guarantees maximum protection in harsh environments and continuously stores data safely and securely.
•Erases 128GB of data in seven seconds
•Resists shock and vibration
•Stays within temperature limits
•Flushes all buffer data to the flash chip before total power loss
Specifikace
| Model Name | SATA Slim 2SR |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | SLC |
| Connector | 7pin+15pin |
| Capacity | 8GB~ 128GB |
| Max. Channels | 8 |
| Sequential R/W (MB/sec, max.) | 170/110 |
| Max. Power consumption | 1.85W (5V x 370mA) |
| Thermal Sensor | Y |
| External DRAM Buffer | Y |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Conformal Coating | Optional |
| Dimension (WxLxH/mm) | 54.0x 39.8 x 6.8 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Industrial Grade. OP: -40°C ~ +85°C |
