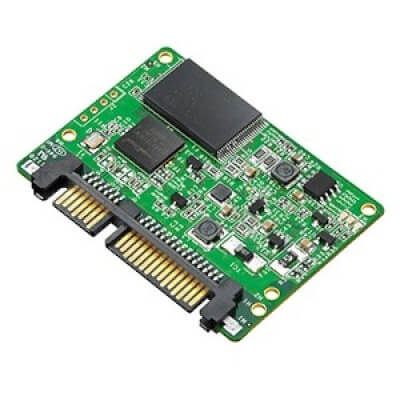

SATA Slim 2IE
The SATA Slim 2IE offers high performance and high capacity in a tiny form factor. It is lightweight and extremely useful for embedded systems inside hand-held devices, such as tablets. With our proprietary iSLC technology, the SATA Slim 2IE can last fo
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features
•iSLC technology
•iSMART disk health monitoring tool
•Intelligent error recovery system
•Excellent data transfer speed
•Zero mechanical interference
Benefits
The Innodisk SATA Slim 2IE provides manufacturers with a great replacement option for hard disk drives (HDDs) that performs just as well as SLC-based SSDs at half the price. The SATA Slim 2IE is also an excellent alternative for replacing a 2.5” SSD in embedded systems applications that may have mechanical and space concerns.
•Reduces operation system boot time
•Consumes less power than an HDD
•No additional drivers are required
•Can be configured as a boot device or data storage device
Specifikace
| Model Name | SATA Slim 2IE |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | iSLC |
| Connector | 7pin+15pin |
| Capacity | 8GB~64GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 130/120 |
| Max. Power consumption | 1W (5V x 200mA) |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Conformal Coating | N |
| Dimension (WxLxH/mm) | 54.0x 39.8 x 4.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C |
