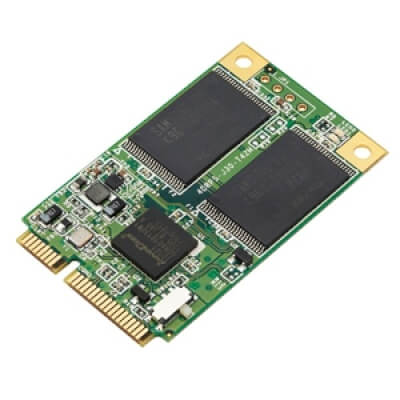

mSATA D150Q
Innodisk’s mSATA D150Q is designed in a standard mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as digital sig
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•Static wear leveling algorithm support
•S.M.A.R.T / iSMART disk health monitoring tool
•Excellent data transfer speed
•Write protection security
•Built-in thermal sensor
Benefits:
The Innodisk mSATA D150Q provides manufacturers with a suitable replacement for hard disk drives (HDDs).
•Enables personal computer design to be smaller and more compact
•Reduces operation system boot time
•Consumes less power than an HDD
•Can be configured as a boot device or a data storage device
Specifikace
| Model Name | mSATA D150Q |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | SLC |
| Pin Definition | mSATA |
| Capacity | 2GB~64GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 130/120 |
| Max. Power consumption | 1.25W (3.3V x 380mA) |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | Y |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Conformal Coating | N |
| Dimension (WxLxH/mm) | 29.8 x 50.8 x 3.5 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Industrial Grade. OP: -40°C ~ +85°C |
